Rear Climate Control Unit

REAR CLIMATE CONTROL UNIT INSPECTION

With A/C and Heater

1. Slide out the rear climate control unit with the connectors still connected. (See REAR CLIMATE CONTROL UNIT REMOVAL/INSTALLATION.)
2. Turn the ignition switch to ON position.

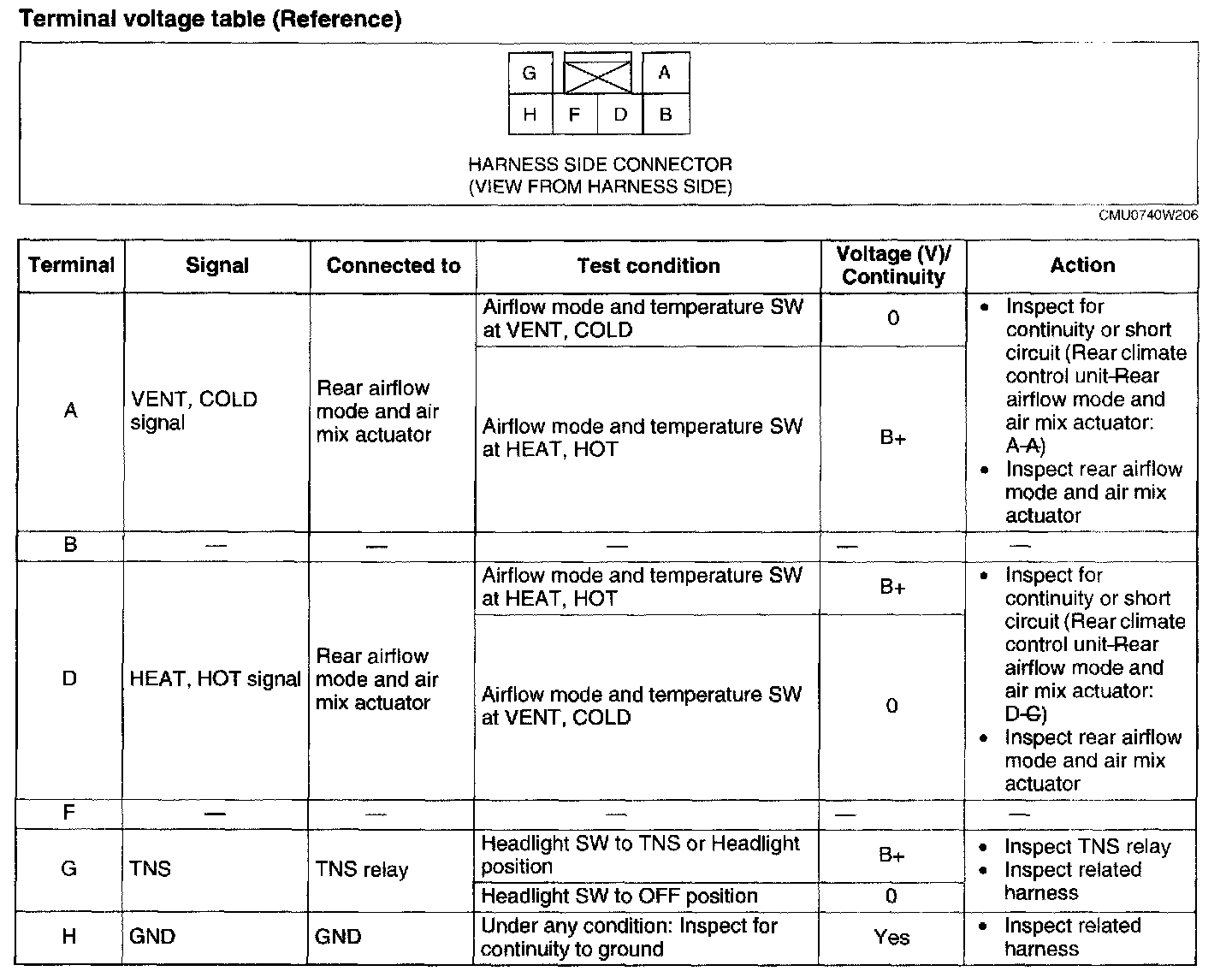

Terminal Voltage Table (Reference) - Terminal (A - H):

3. Measure the voltage at each rear climate control unit terminal and refer to terminal voltage table.
- If there is any malfunction, inspect the parts listed under "Inspection item(s)" and the related wiring harness.
- If the parts and wiring harness under "Inspection item(s)" are found to be normal, replace the rear climate control unit.

With A/C Only or Heater Only

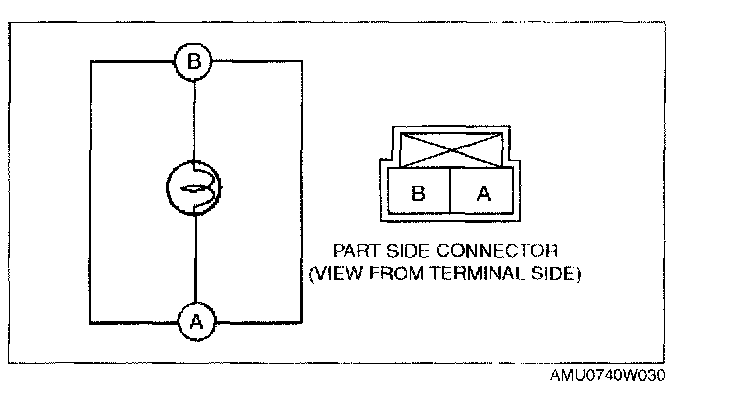

1. Connect the battery positive voltage to terminal B and ground to terminal A.

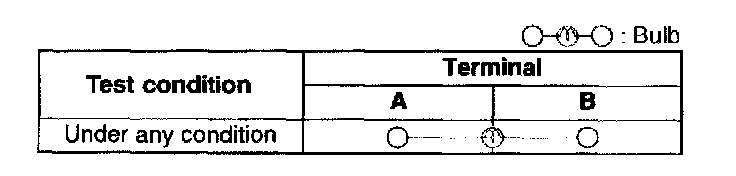

2. Verify that the bulb illuminates.
- If not as specified, replace the bulb.
