Connector Locations

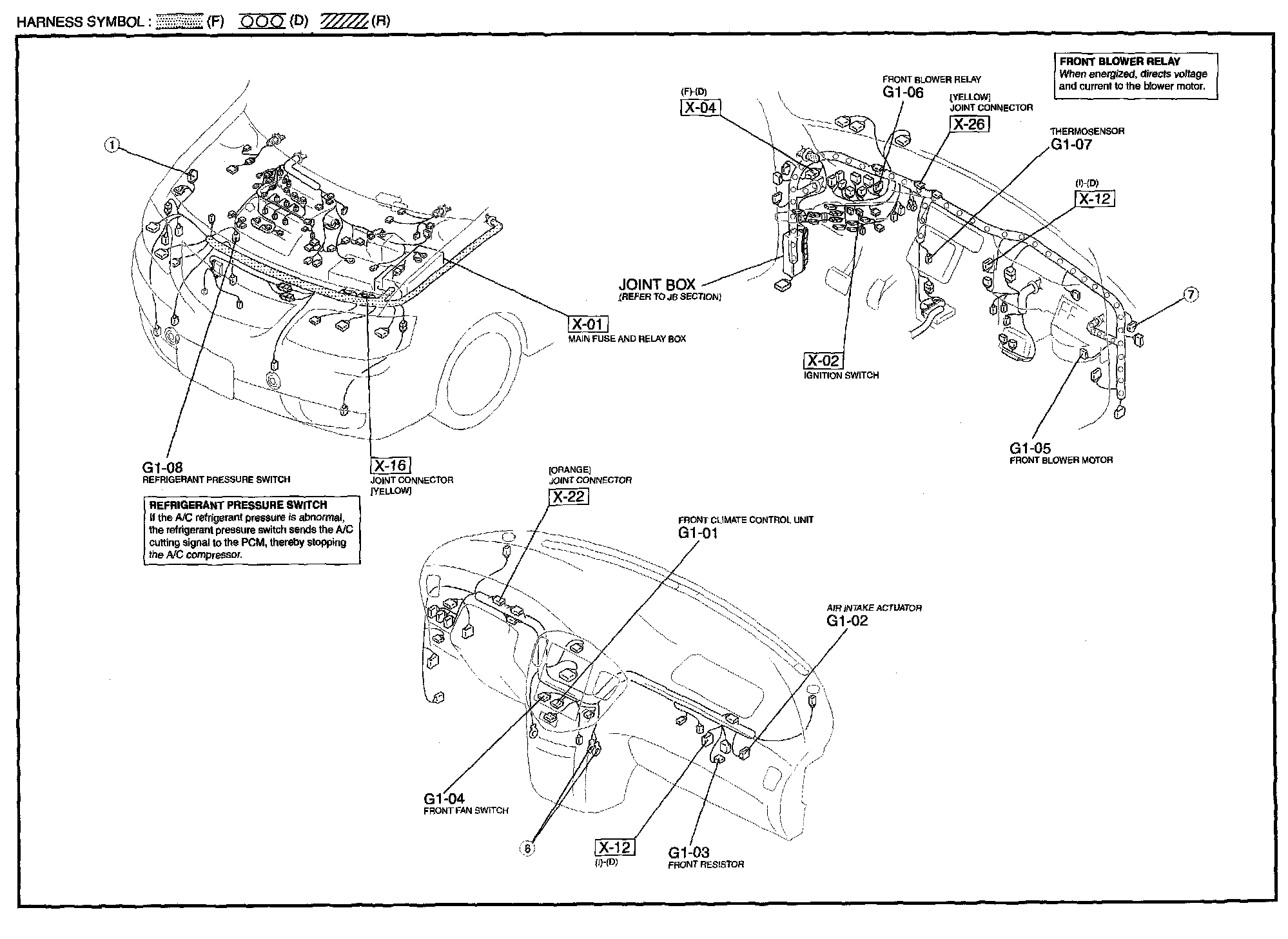

G-1 - Heater And Air Conditioner Harness / Connector Symbols:

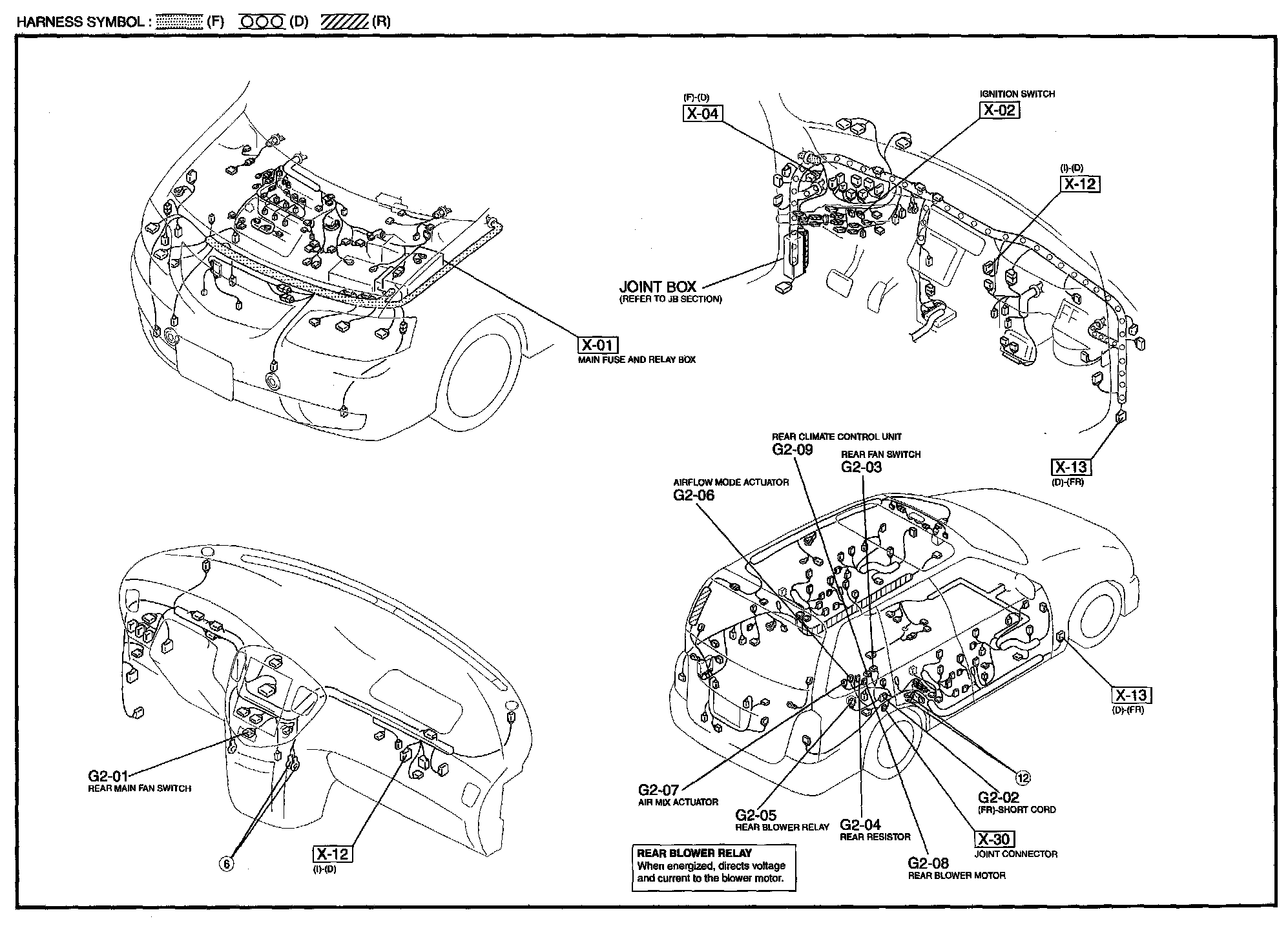

G-2 - Rear Air Conditioner Harness / Connector Symbols:
