Vehicle Lifting: Service and Repair

JACKING POSITIONS, VEHICLE LIFT (2 SUPPORTS) AND SAFETY STAND (RIGID RACK) POSITIONS

Jacking Positions

WARNING: Improperly jacking a vehicle is dangerous. The vehicle can slip off the jack and cause serious injury. Use only the correct front and rear jacking points and block the wheels.

Use safety stands to support the vehicle after it has been lifted.


Front
At the jacking plate of the engine support member.

Rear
At the center of torsion beam axle.


Vehicle Lift Positions
Front and rear

WARNING: Unstably lifting a vehicle is dangerous. The vehicle can slip off the lift and cause serious injury and/or vehicle damage. Make sure that the vehicle is on the lift horizontally by adjusting the height of support at the end of the arm of the lift.


Safety Stand Positions

Front
Both sides of the vehicle, on side sills.

Rear
Both sides of the vehicle, on side sills.

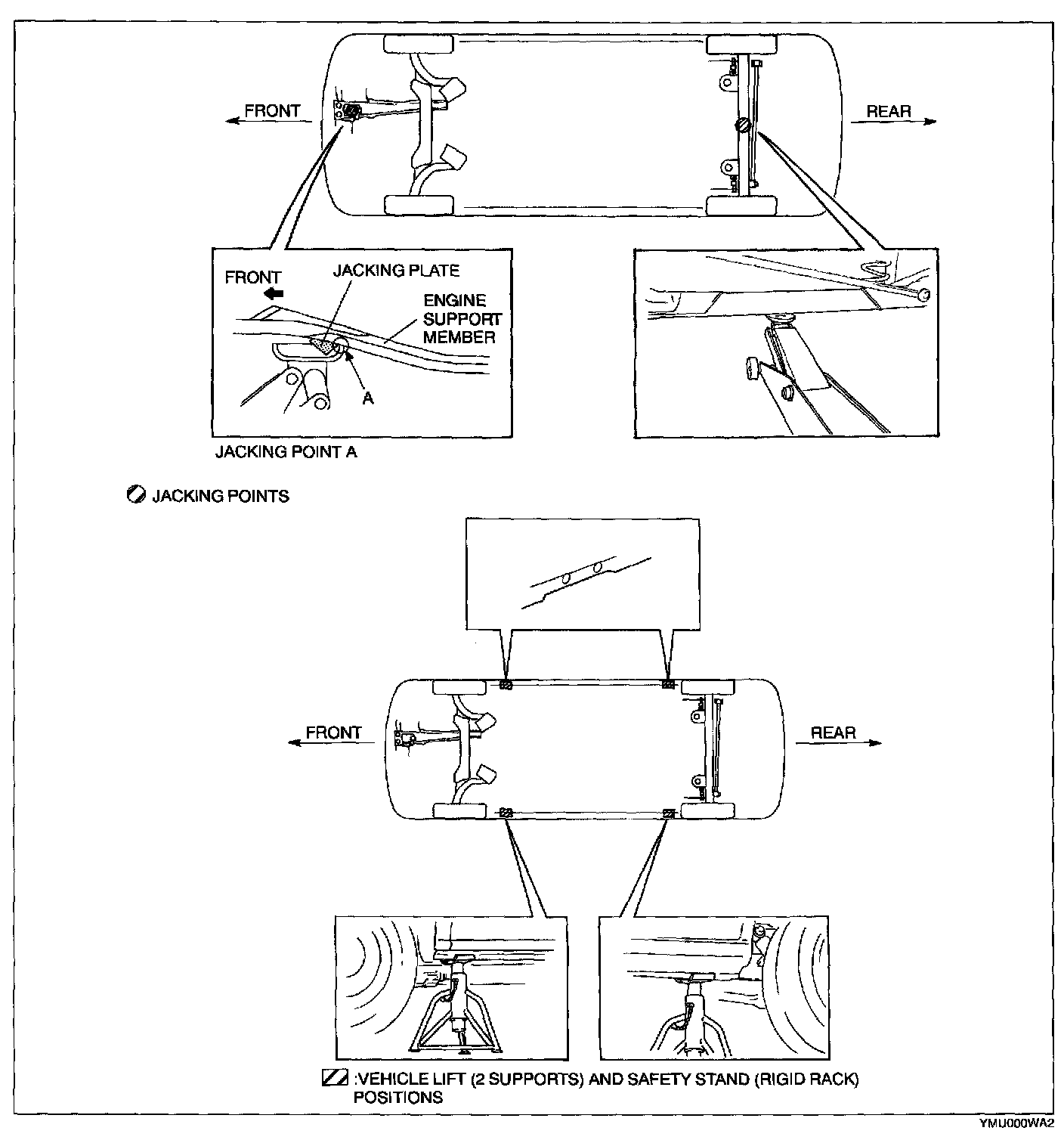

Jacking positions, vehicle lift (2 supports) and safety stand (rigid rack) positions view
