Home
>>
Mazda
>>
2006
>>
MPV V6-3.0L DOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Main Relay (Computer/Fuel System)
>>
Locations
>>
Component Locations
Component Locations

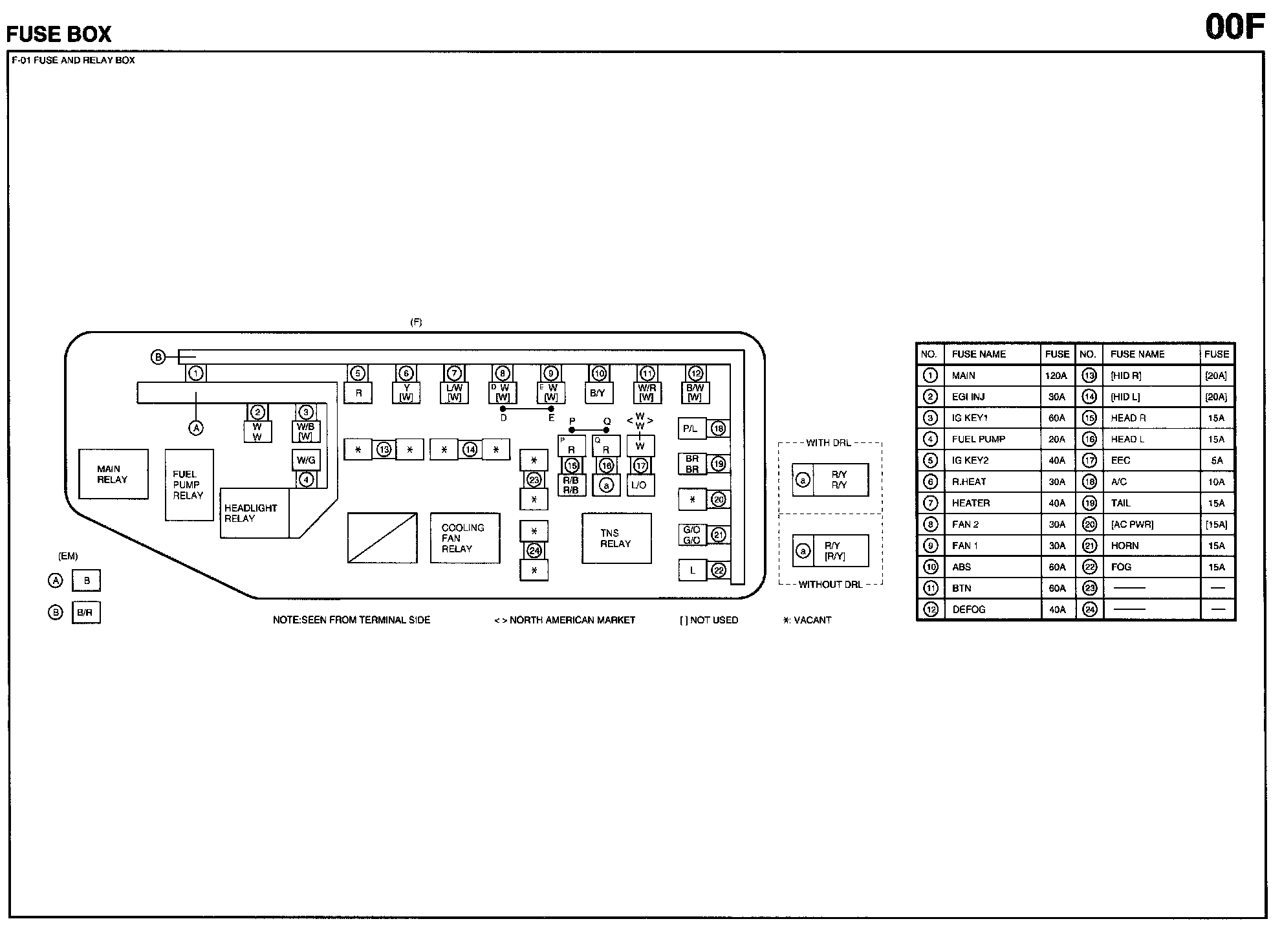

F-01 Fuse And Relay Box:
