System Schematic

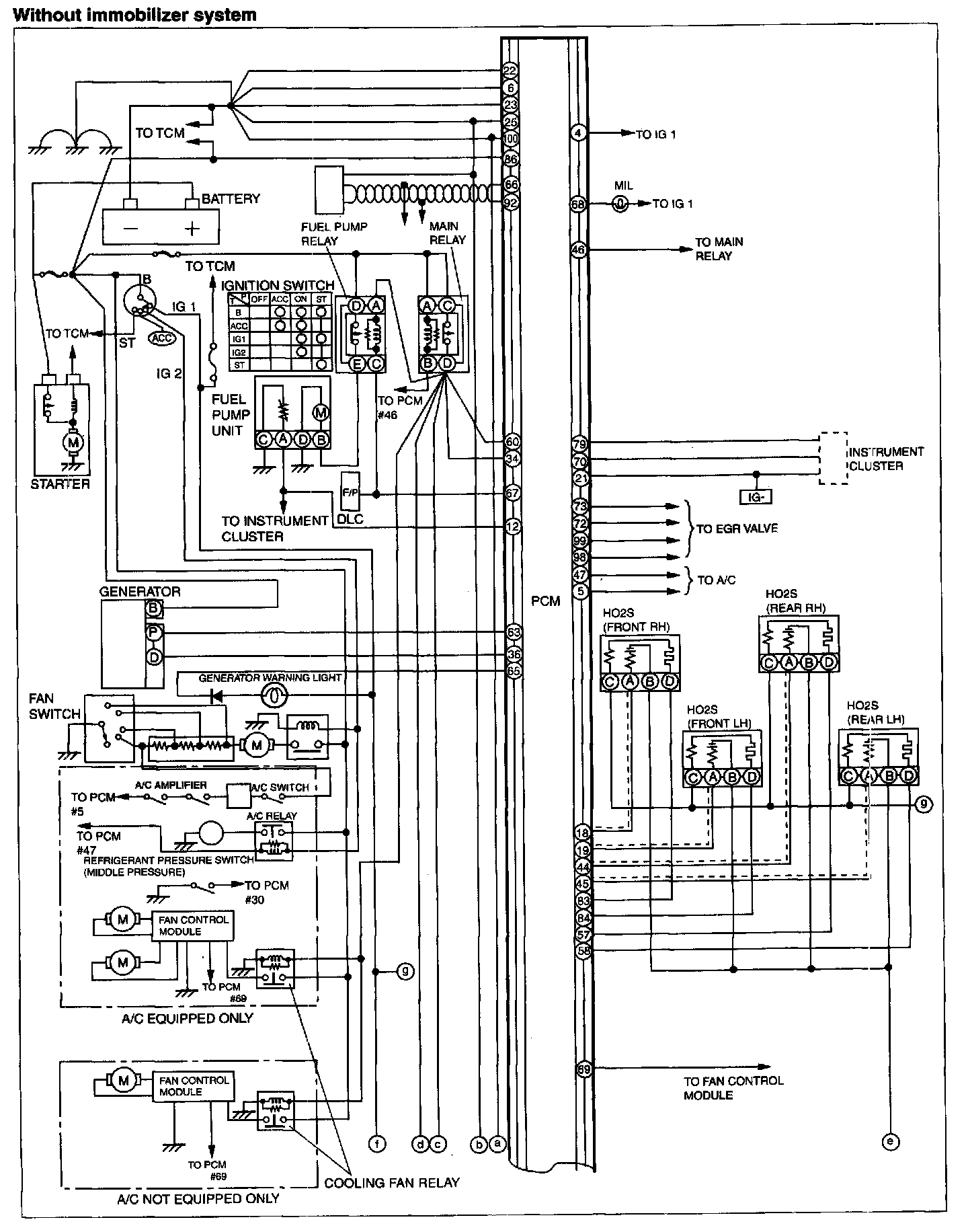

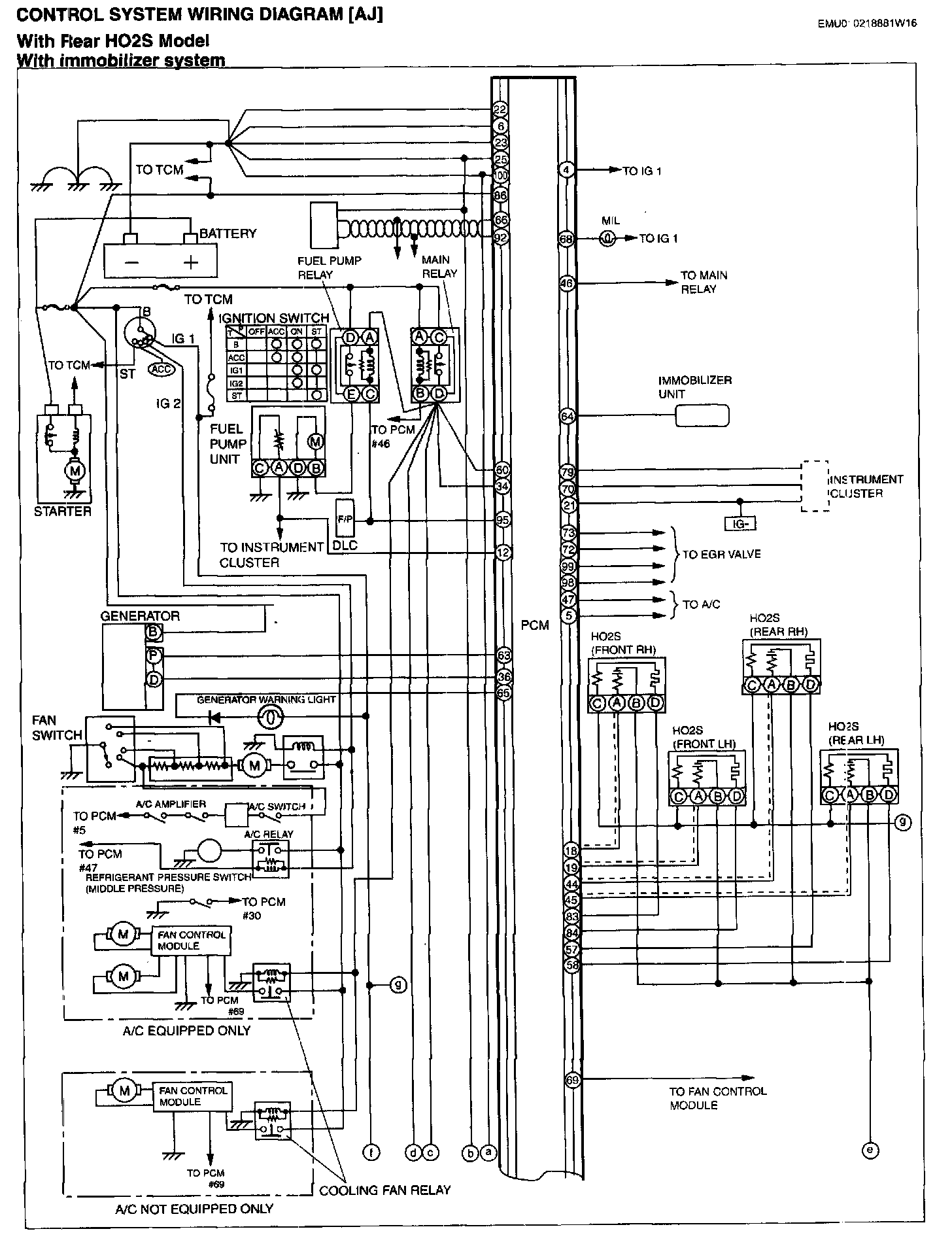

Control System Wiring Diagram[AJ] (Part 1):

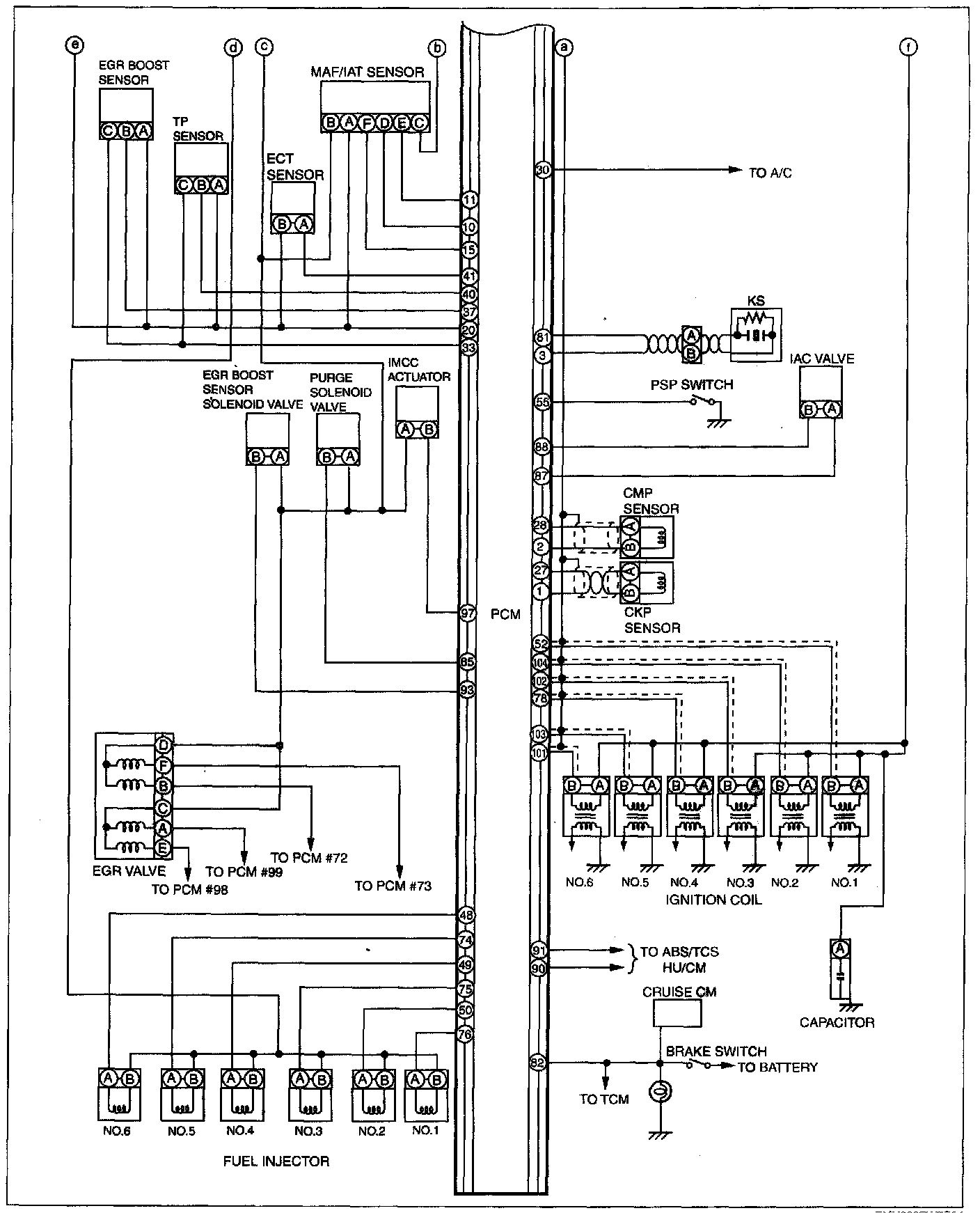

Control System Wiring Diagram[AJ] (Part 2):

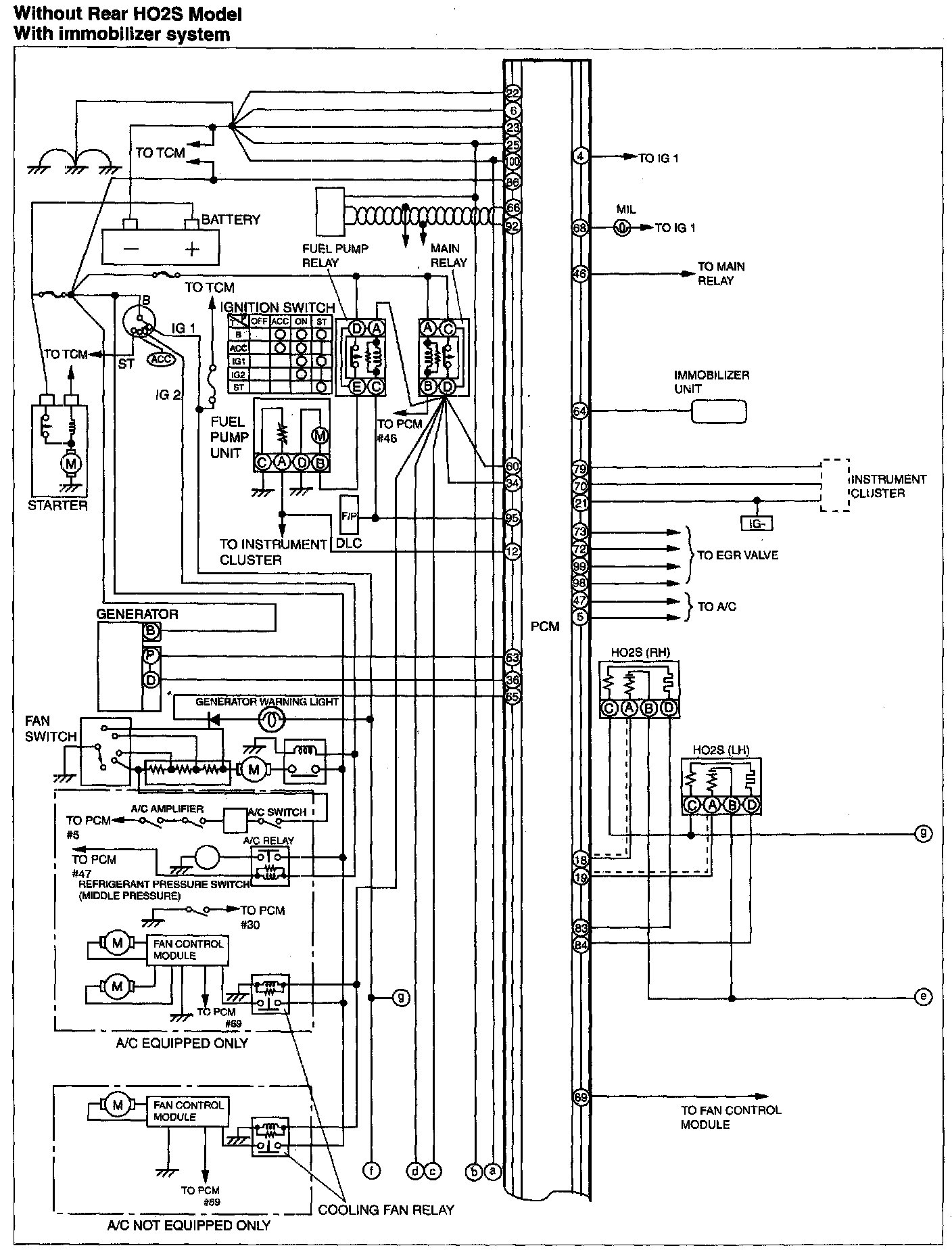

Control System Wiring Diagram[AJ] (Part 1):

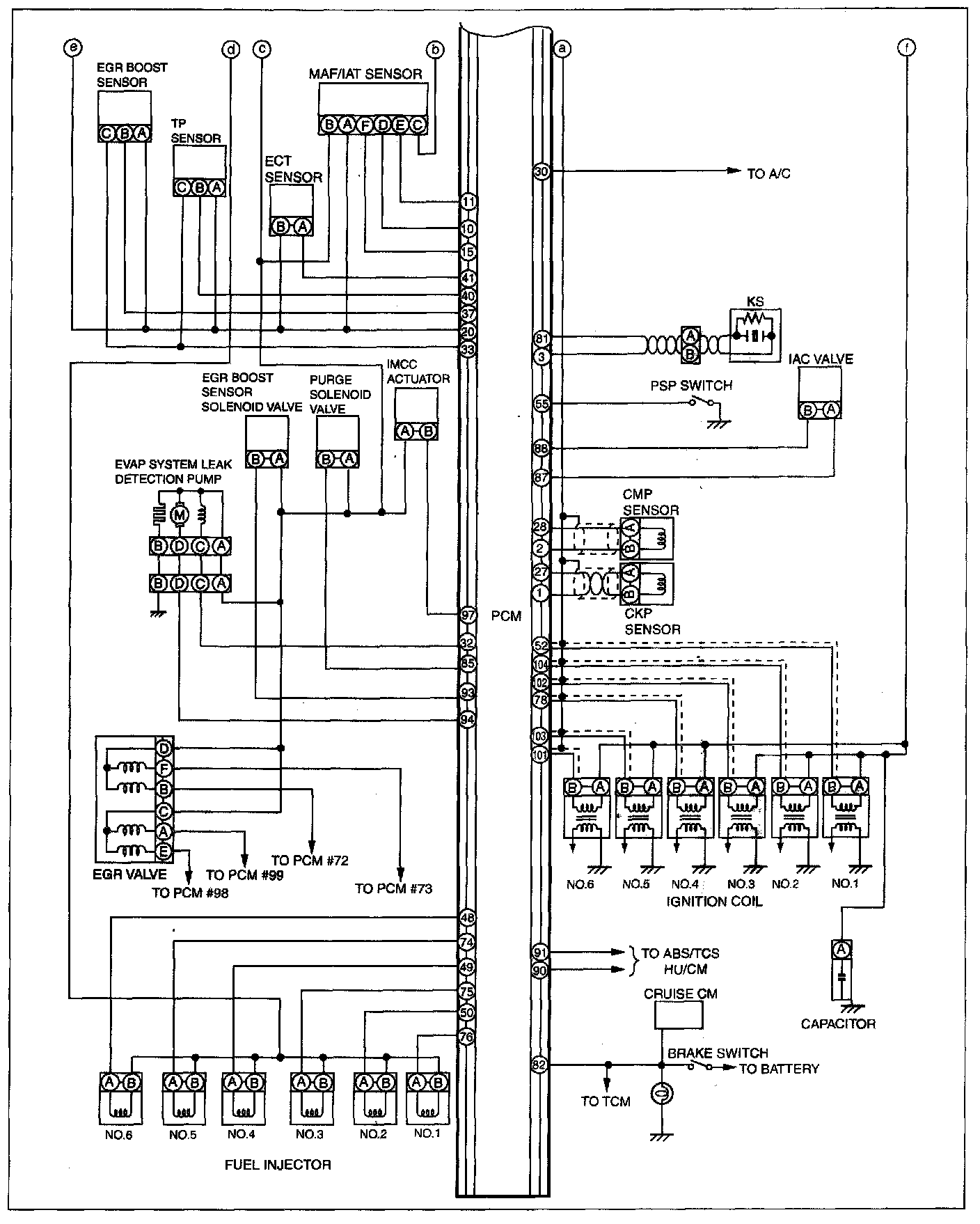

Control System Wiring Diagram[AJ] (Part 2):



Control System Wiring Diagram[AJ] (Part 1):

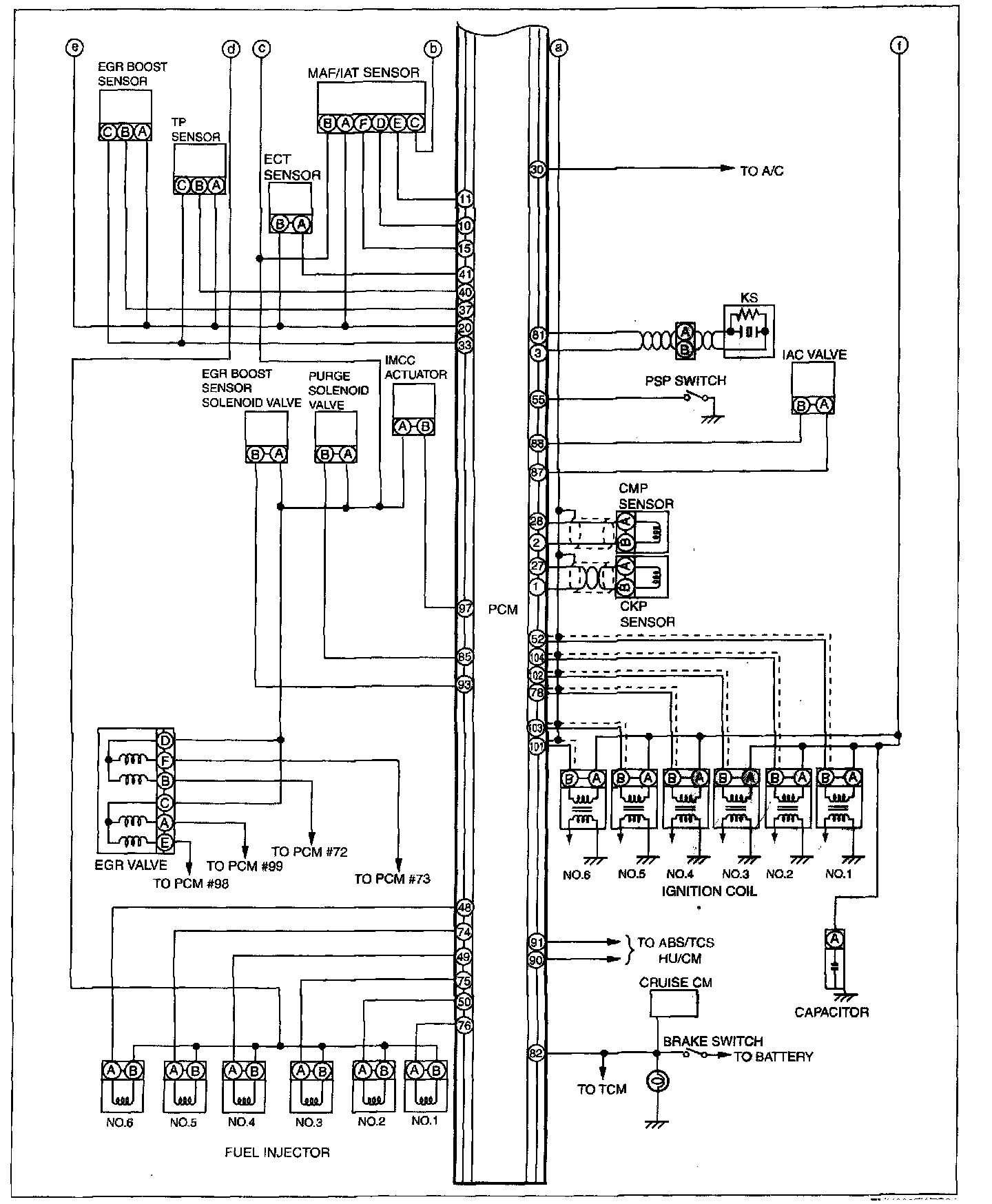

Control System Wiring Diagram[AJ] (Part 2):

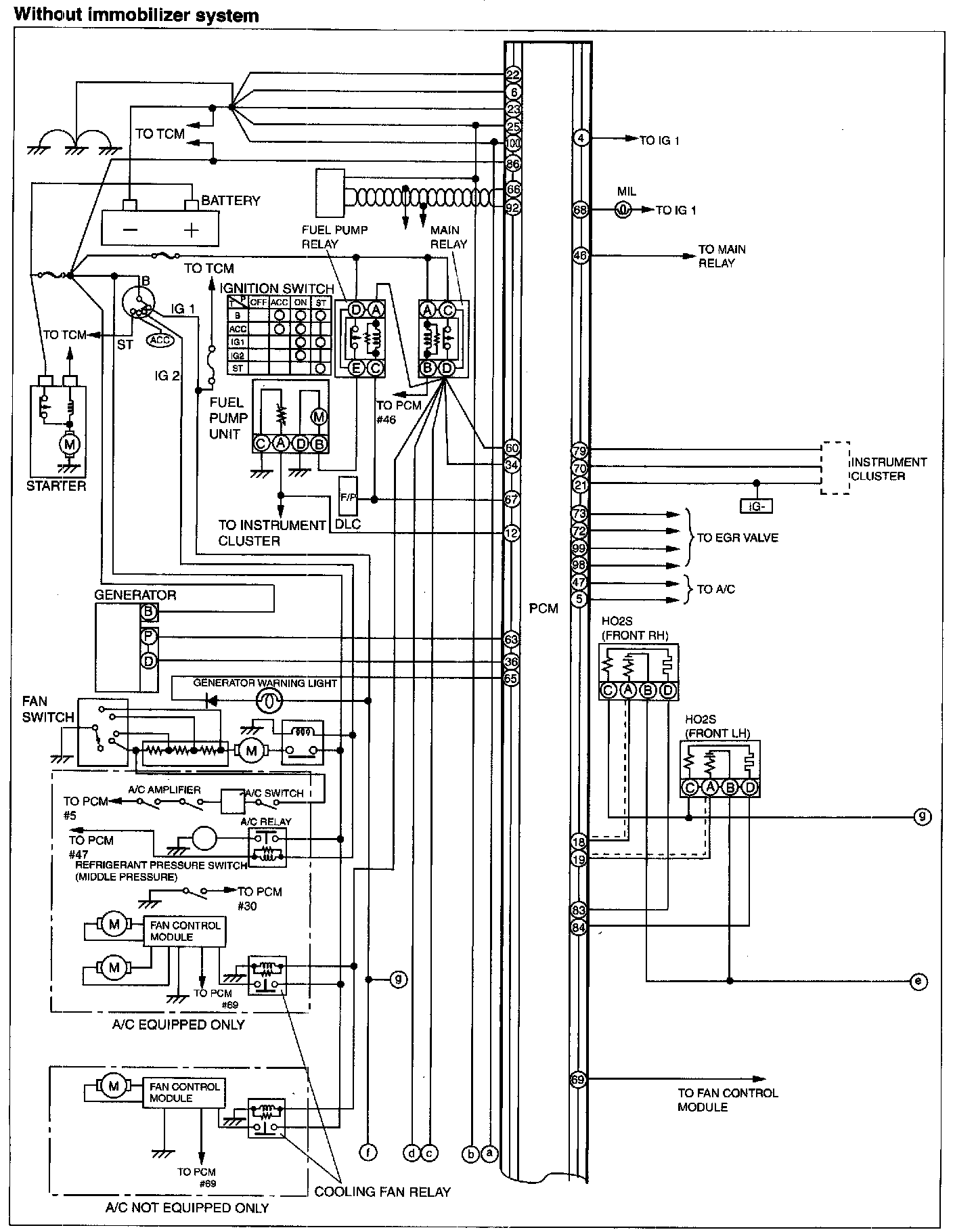

Control System Wiring Diagram[AJ] (Part 1):



Control System Wiring Diagram[AJ] (Part 2):
