Ignition Coil: Service and Repair

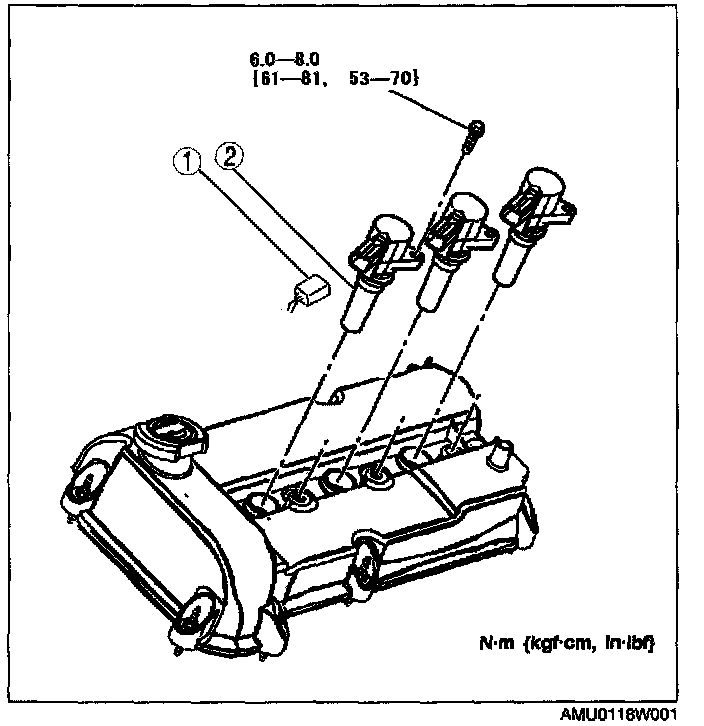

IGNITION COIL REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.



2. LH: Remove the plug hole plate. (Item 1).
RH: Remove the dynamic chamber. Service and Repair







3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.
- Apply a light film of silicon brake caliper grease and dielectric compound to the interior of the spark plug boot prior to installation.
