Spark Plug: Testing and Inspection

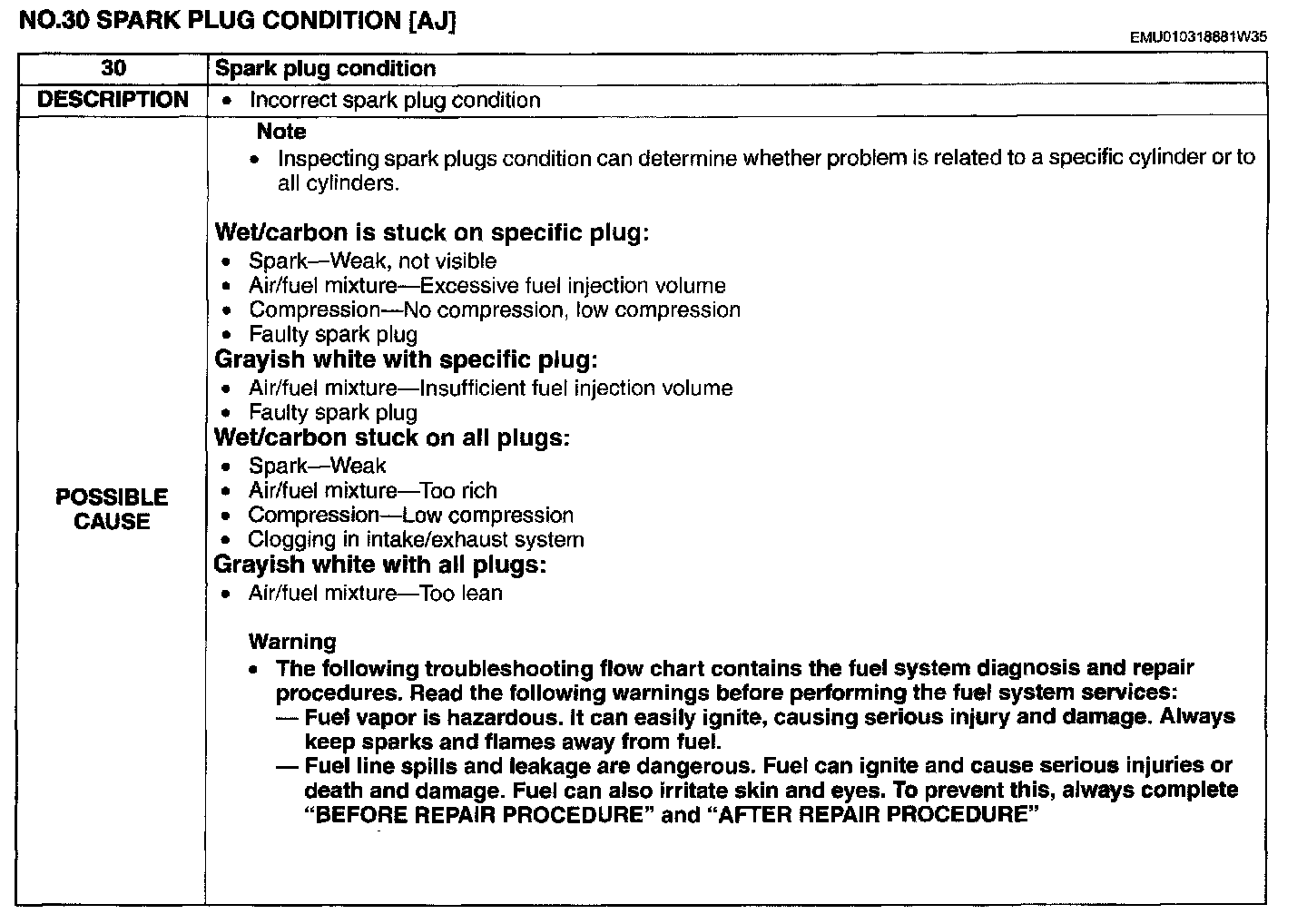

Description / Possible Cause:

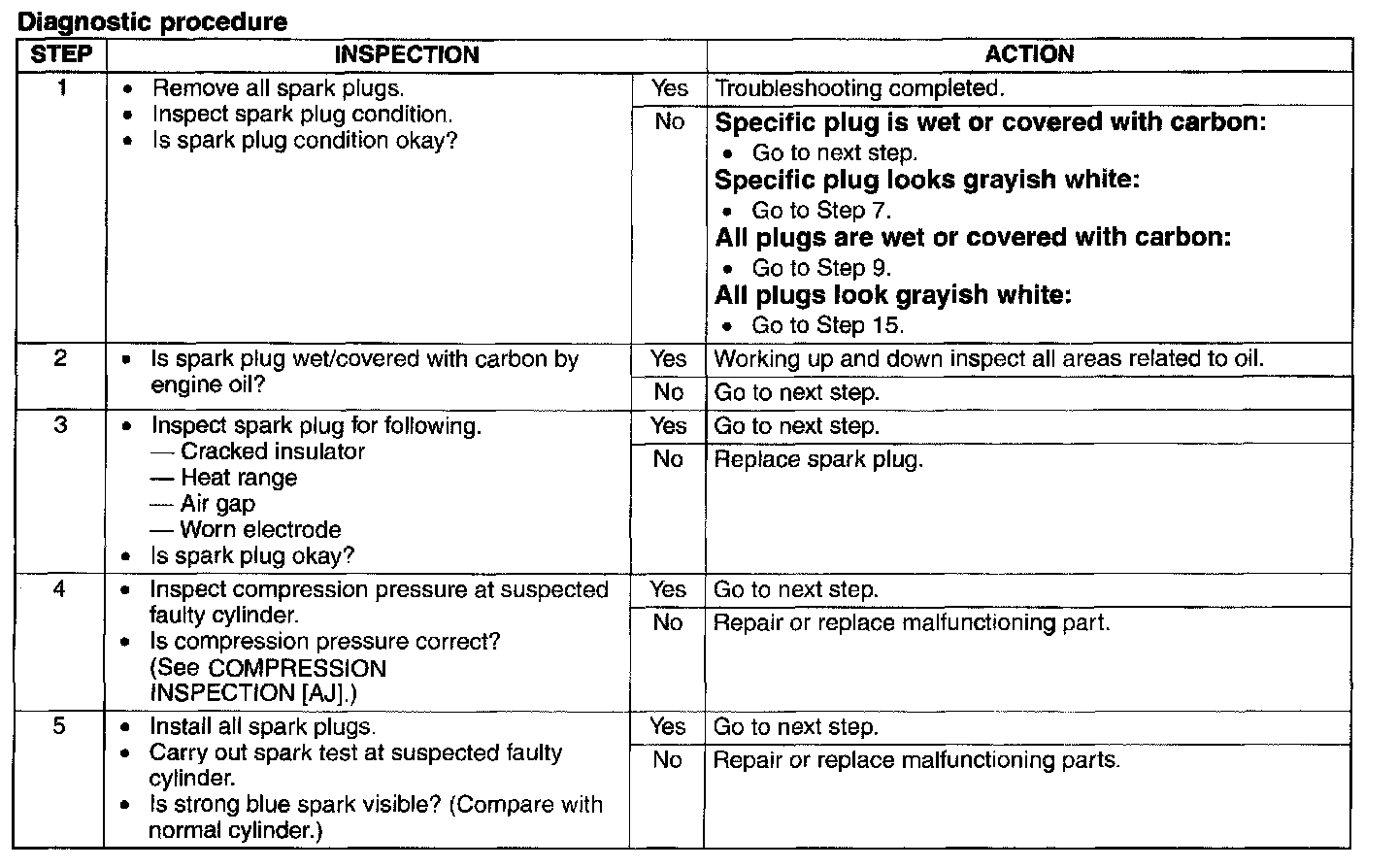

Step 1-Step 5:

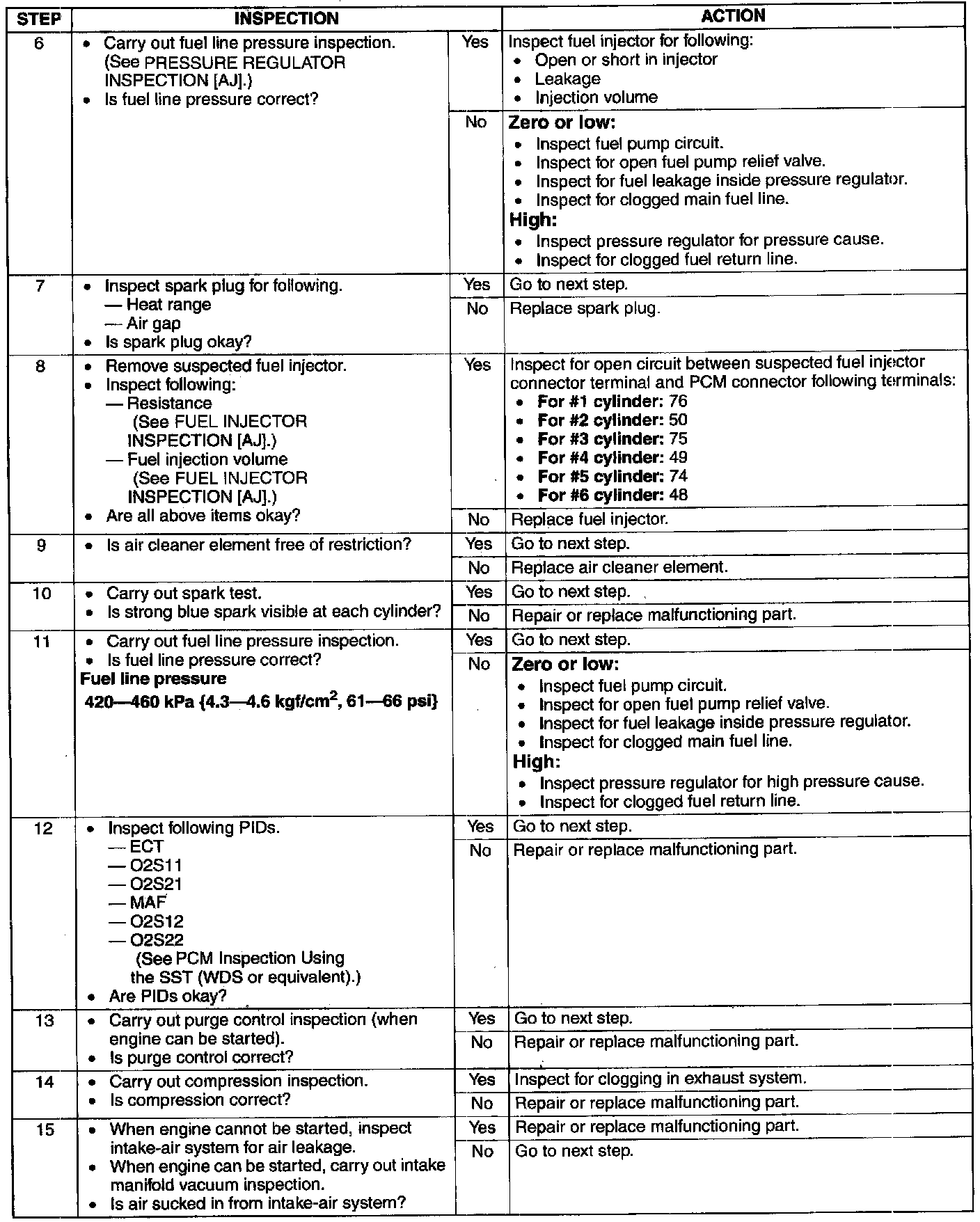

Step 6-Step 15:

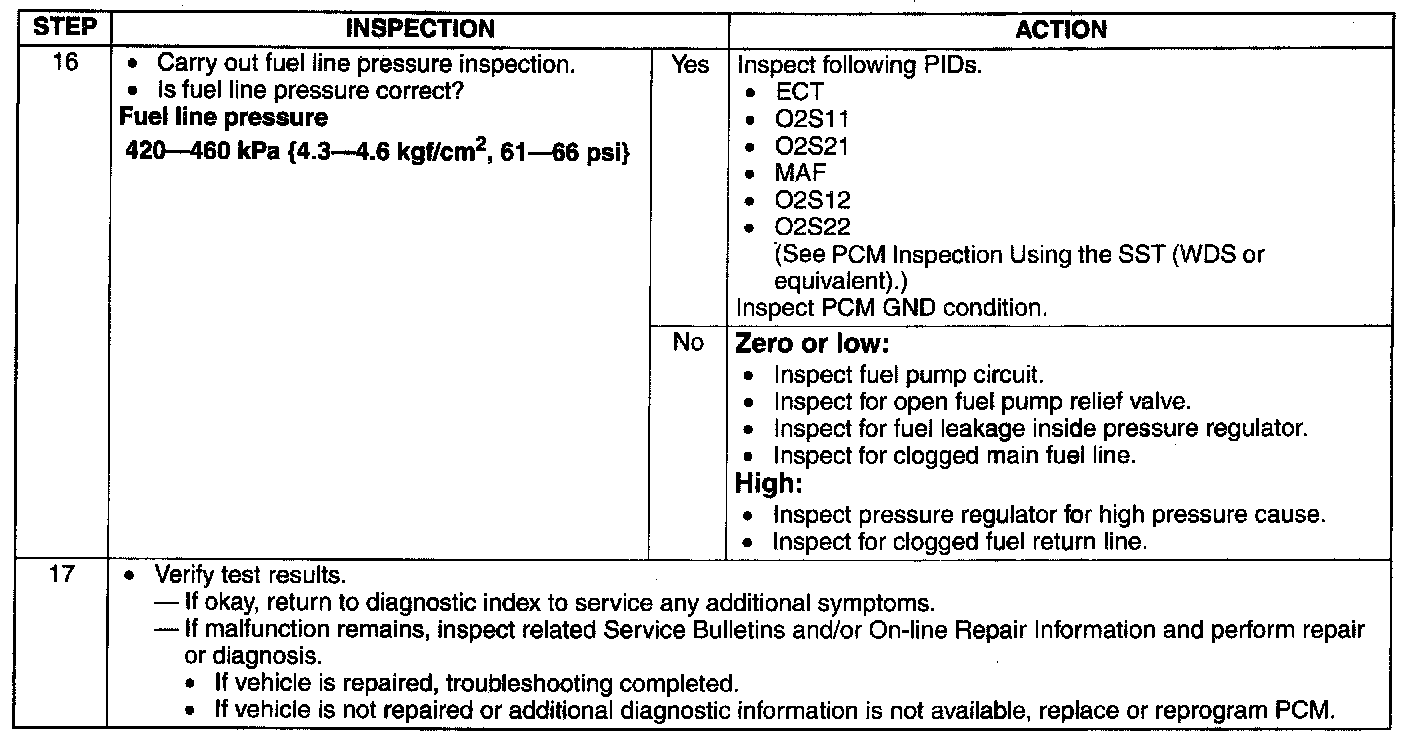

Step 16-Step 17:
