Air Bag Control Module
>>
Locations
>>
Connector Locations
>>
Standard Deployment Control System
Standard Deployment Control System

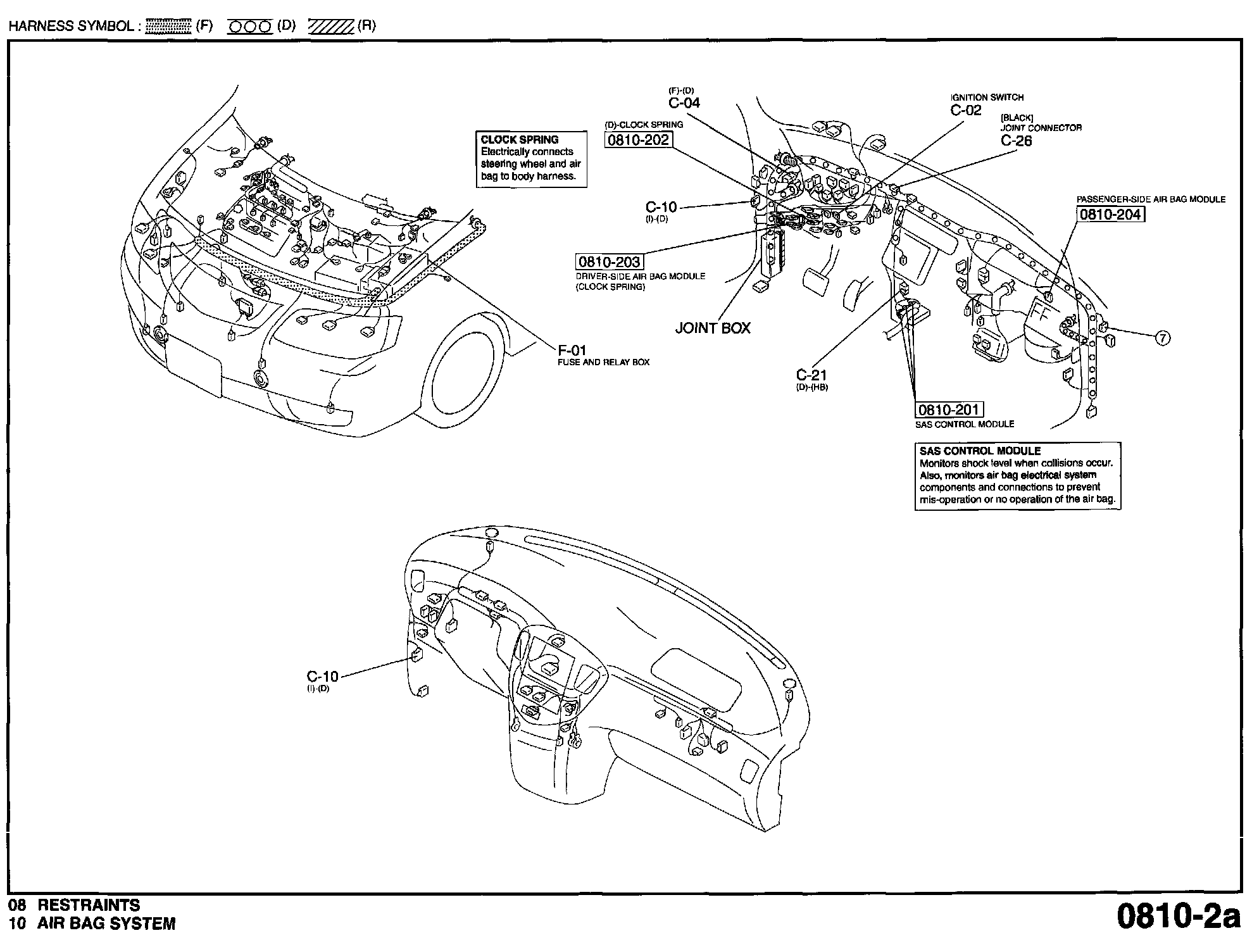

Routing View 0810-2a:
