Air Bag Control Module
>>
Locations
>>
Connector Locations
>>
Two-Step Deployment Control System
Two-Step Deployment Control System

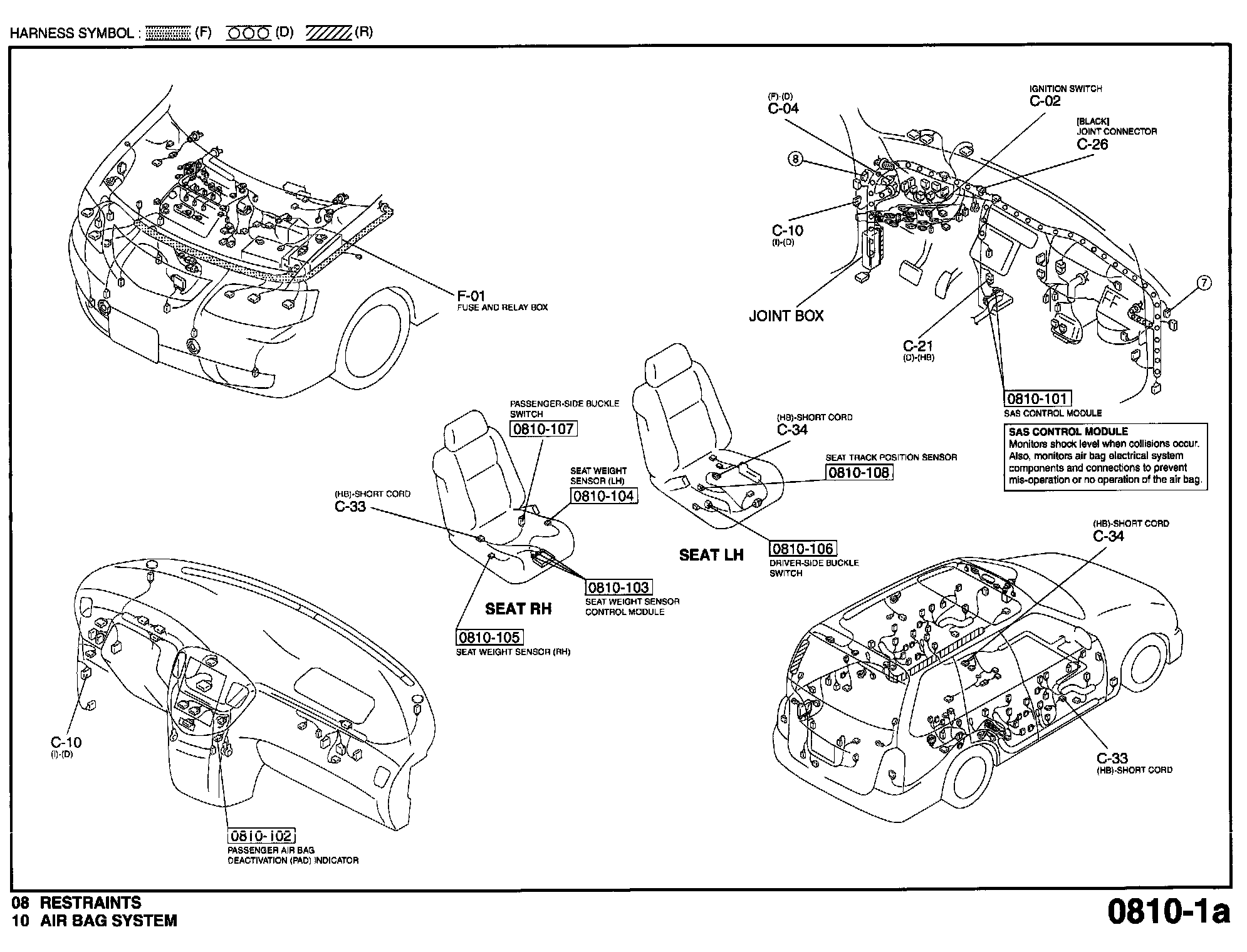

Routing View 0810-1a:
