Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mazda
>>
2006
>>
MPV V6-3.0L DOHC
>>
Repair and Diagnosis
>>
Restraints and Safety Systems
>>
Air Bag Systems
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
Two-Step Deployment Control System
>>
Scan Tool Testing
Scan Tool Testing

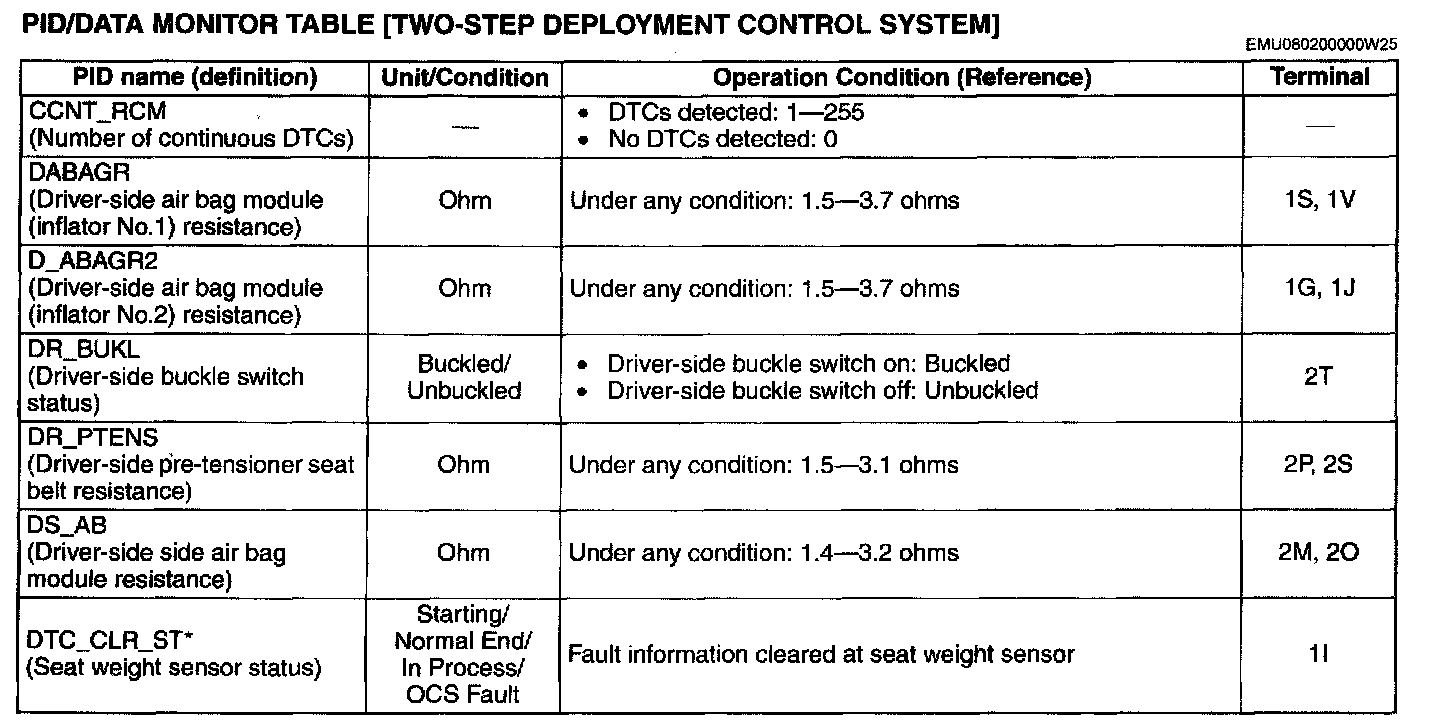

PID/Data Monitor Table [Two-Step Deployment Control System] - Part 1:

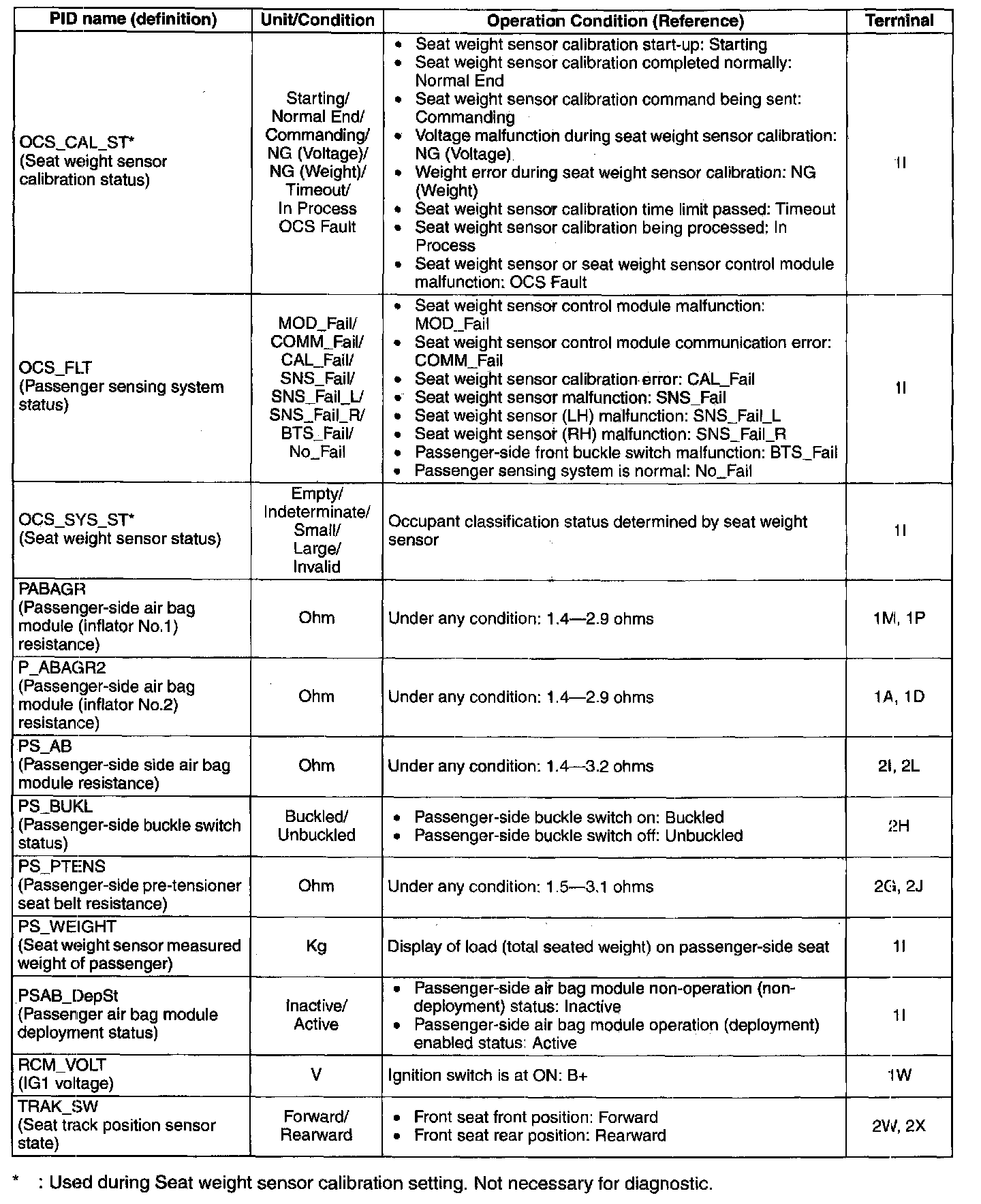

PID/Data Monitor Table [Two-Step Deployment Control System] - Part 2:
