Mazda
>>
2006
>>
MPV V6-3.0L DOHC
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Engine
>>
Engine Lubrication
>>
System Specifications
System Specifications
Tightening Torque Exploded Views

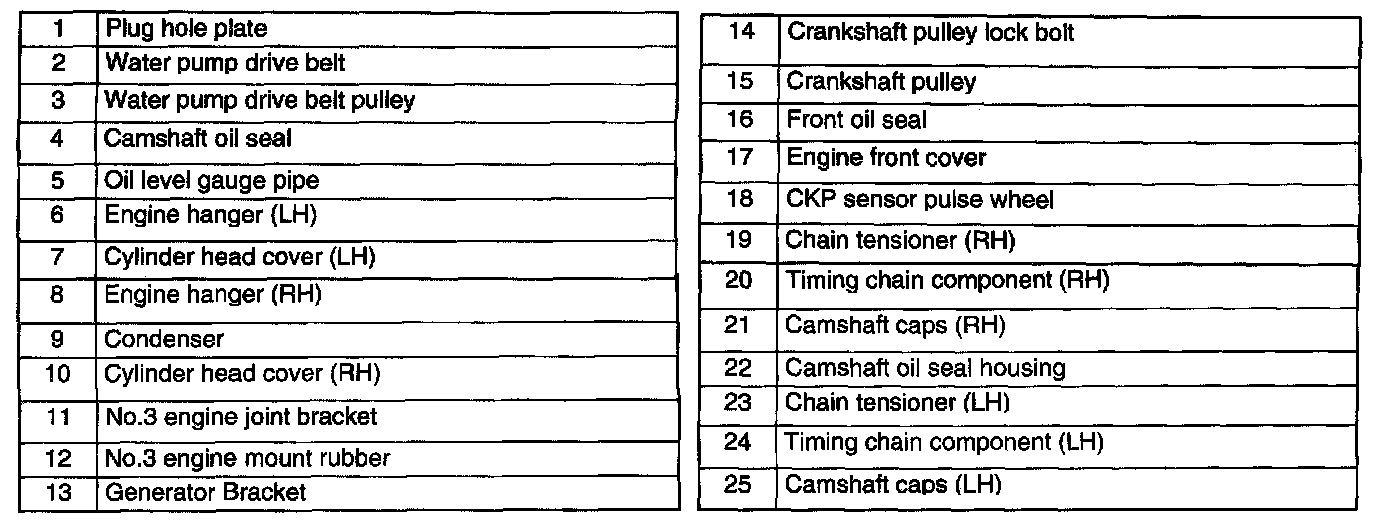

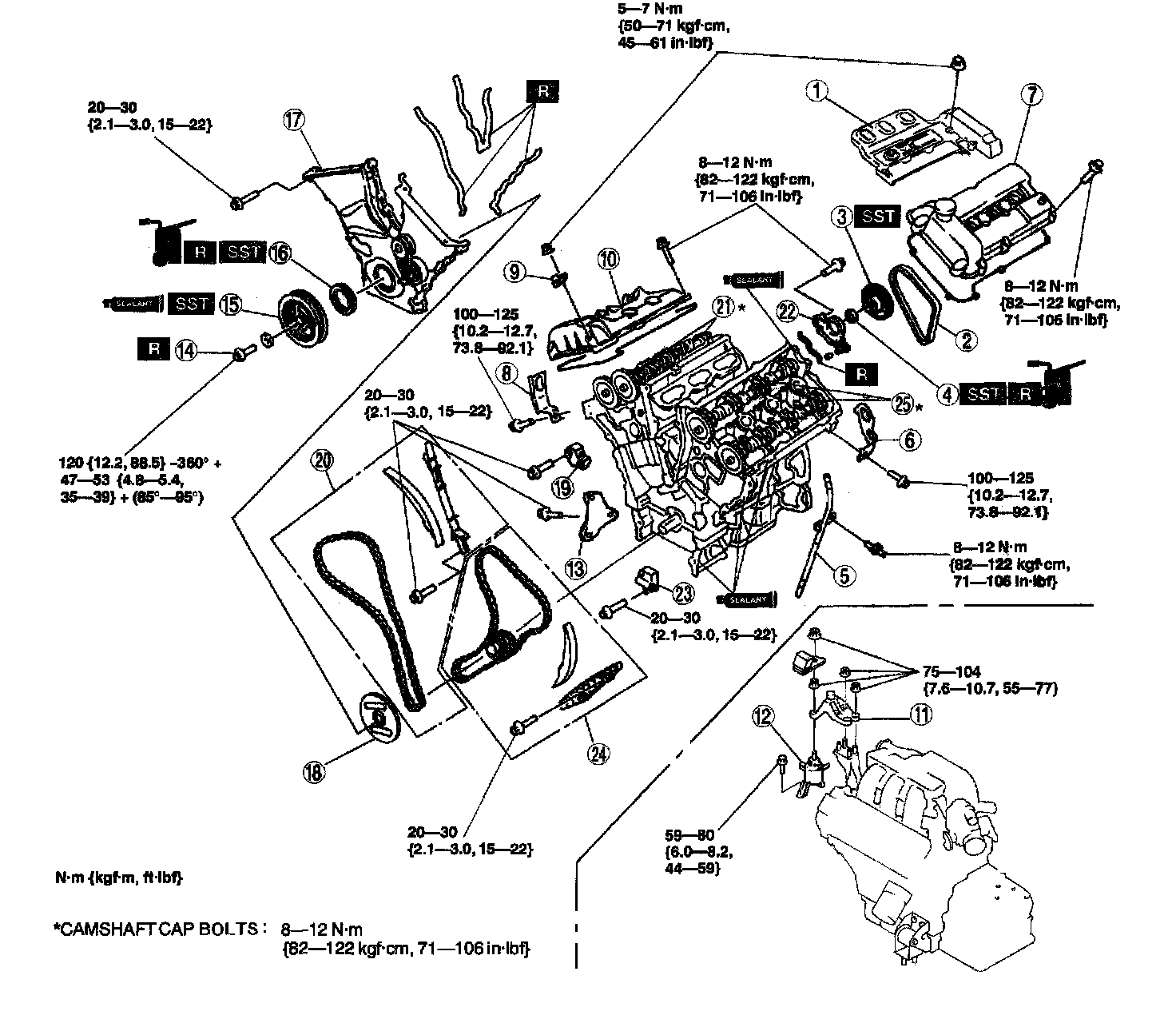

Timing Components

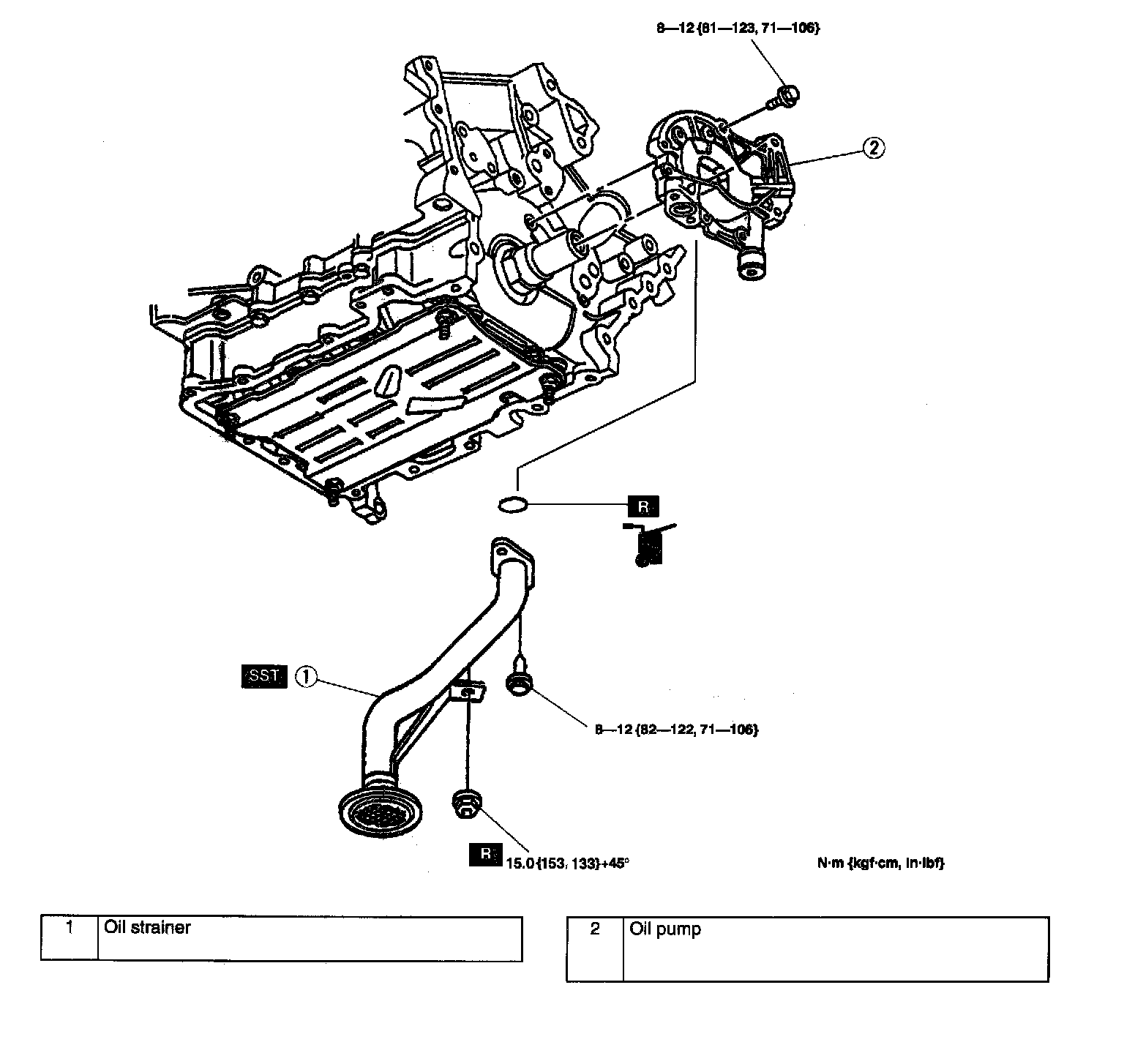

Oil Pump
