Timing Cover
Timing Cover
Engine Front Cover Installation Note

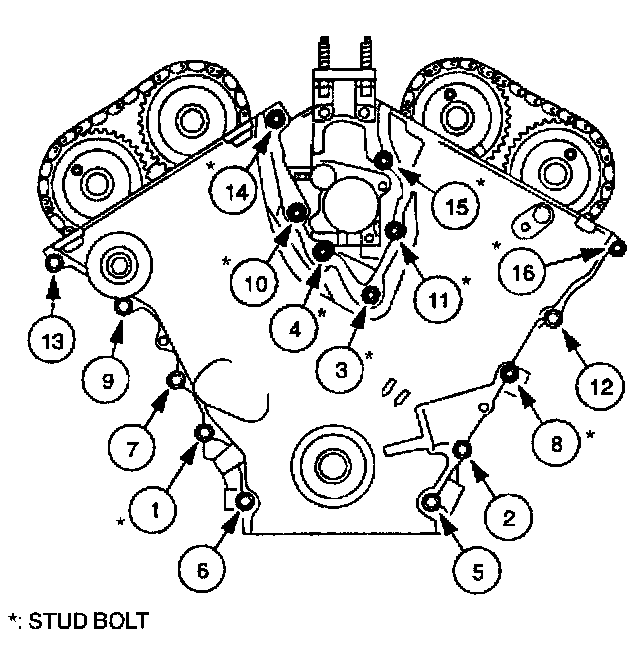

Install the remaining bolts and studs, and then tighten all bolts and studs in the order shown.
