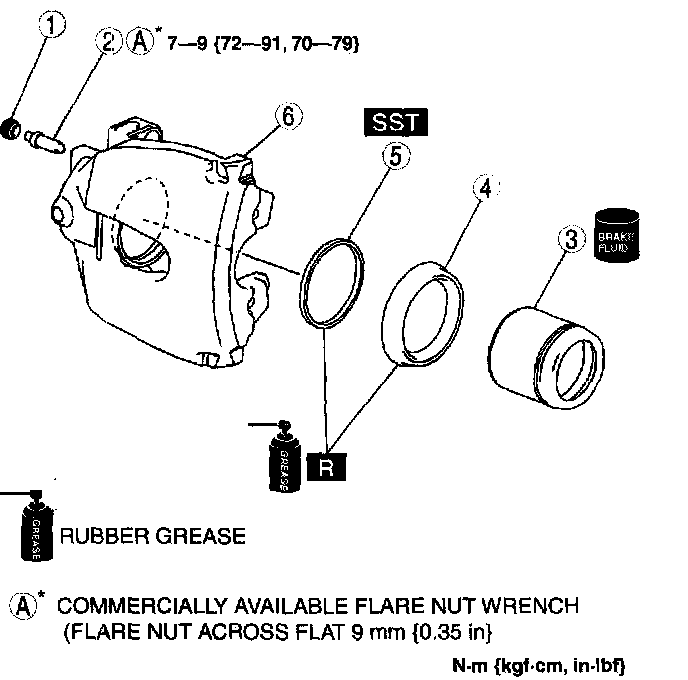

CALIPER (FRONT) DISASSEMBLY/ASSEMBLY [L3 WITH TC]





1. Disassemble in the order indicated in the table.





2. Assemble in the reverse order of disassembly.

Piston Disassembly Note





Caution:
^ Blow the compressed air slowly to prevent the piston from suddenly popping out.

1. Place a piece of wood in the caliper, then blow compressed air through the hole to force the piston out of the caliper.

Piston Seal Disassembly Note

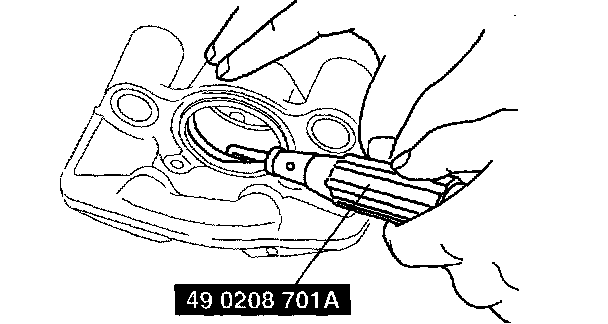

1. Remove the piston seal from the brake caliper using the SST.
