Front

Disc Pad Thickness Inspection

1. Jack up the front of the vehicle and support it with safety stands.
2. Remove the wheel and tires.

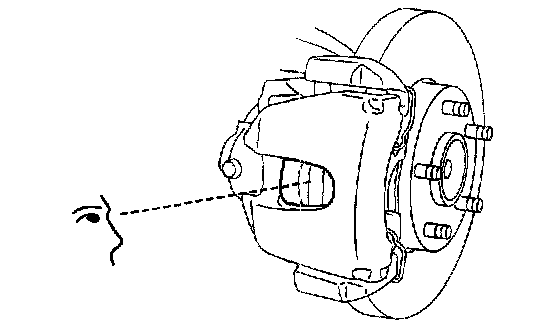

3. Verify the remaining thickness of the pads.
Minimum front disc pad thickness
L3, AJ: 2.0 mm (0.079 inch) minimum
L3 WITH TC: 1.5 mm (0.059 inch) minimum

4. Replace the pads as a set: right and left wheels, if either one is at or less than the minimum thickness.
