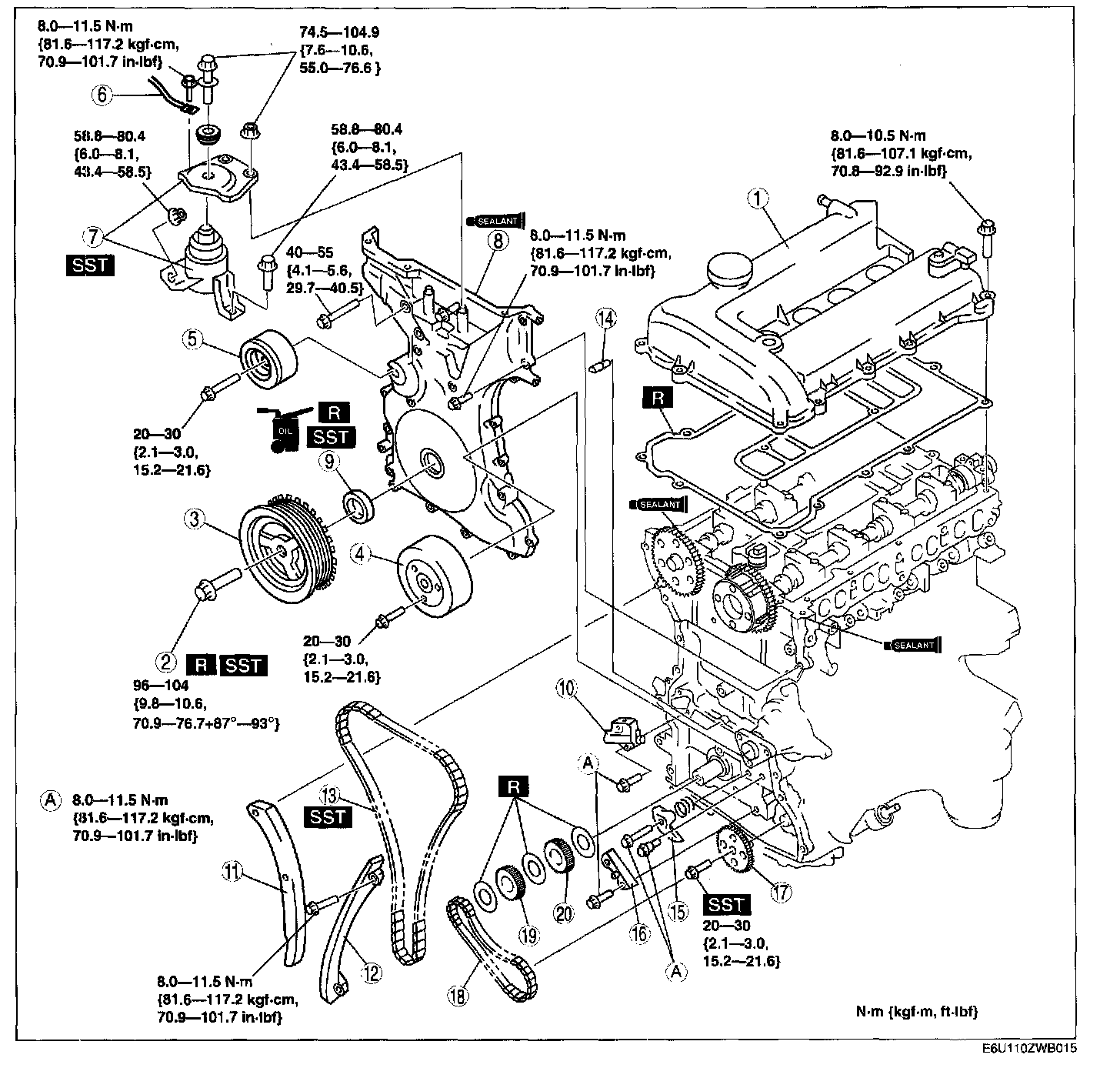

Timing Components: Specifications

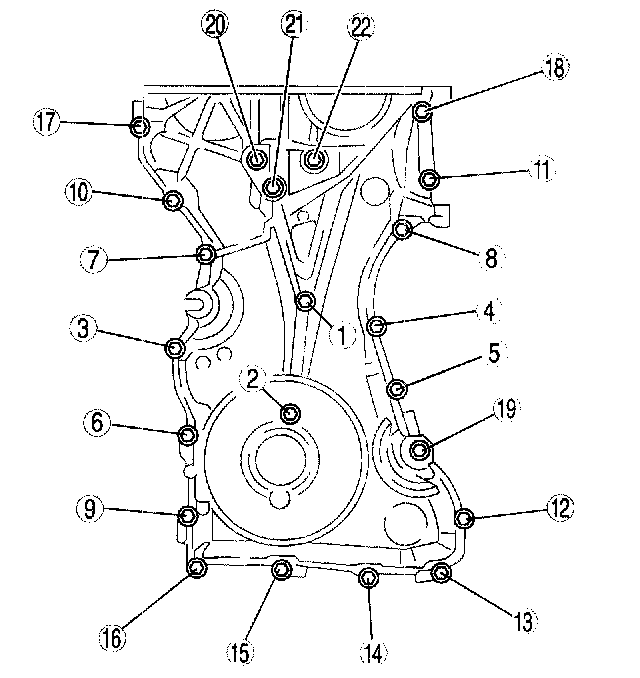

Engine Front Cover Installation








Crankshaft Pulley

Tightening procedure
(1) 96 - 104 Nm (9.8 - 10.6 kgf-m, 70.9 - 76.7 ft. lbs.)
(2) 87° - 93°
