Air Duct: Service and Repair

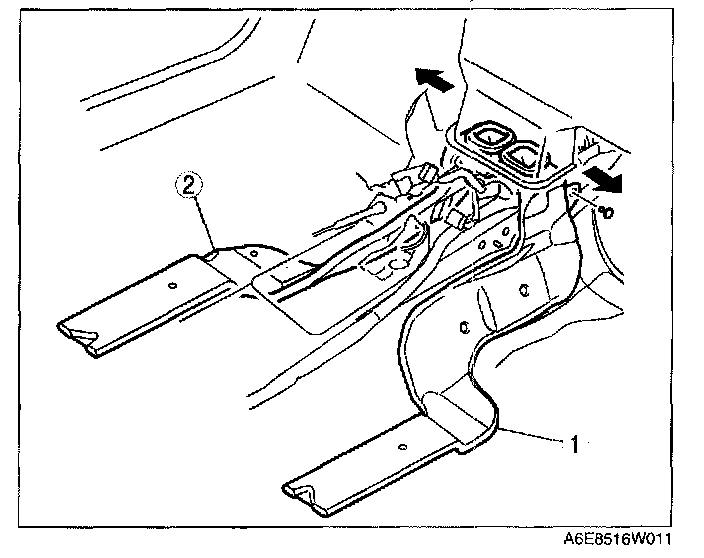

REAR HEAT DUCT REMOVAL/INSTALLATION

1. Turn over the floor covering.

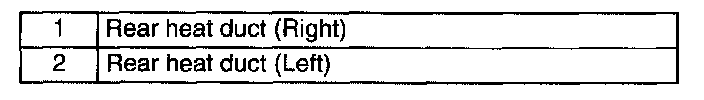

2. Remove in the order indicated in the above table.
3. Install in the reverse order of removal.
