Ambient Temperature Sensor / Switch HVAC: Testing and Inspection

AMBIENT TEMPERATURE SENSOR INSPECTION [L3 WITH TC]

1. Measure the temperature around the ambient temperature sensor.

2. Measure the resistance between terminals of the ambient temperature sensor.

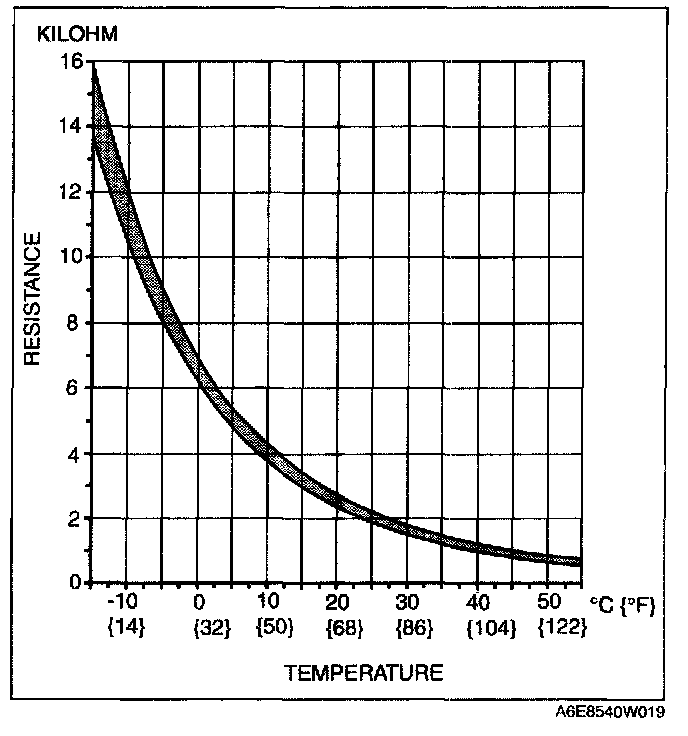

- If the resistance is not as shown in the graph, replace the ambient temperature sensor.
