Evaporator Temperature Sensor / Switch: Testing and Inspection

EVAPORATOR TEMPERATURE SENSOR INSPECTION [L3 WITH TC]

1. Turn the AUTO switch on.
2. Set the temperature control at MAX COLD (Turn the left).
3. Turn the A/C switch.
4. Set the RECIRCULATE mode.
5. Close all doors and windows.
6. Wait for 5 min.
7. Remove the glove compartment.
8. Disconnect the evaporator temperature sensor.
9. Measure the temperature at the blower inlet.




10. Measure the resistance between terminals of the evaporator temperature sensor.

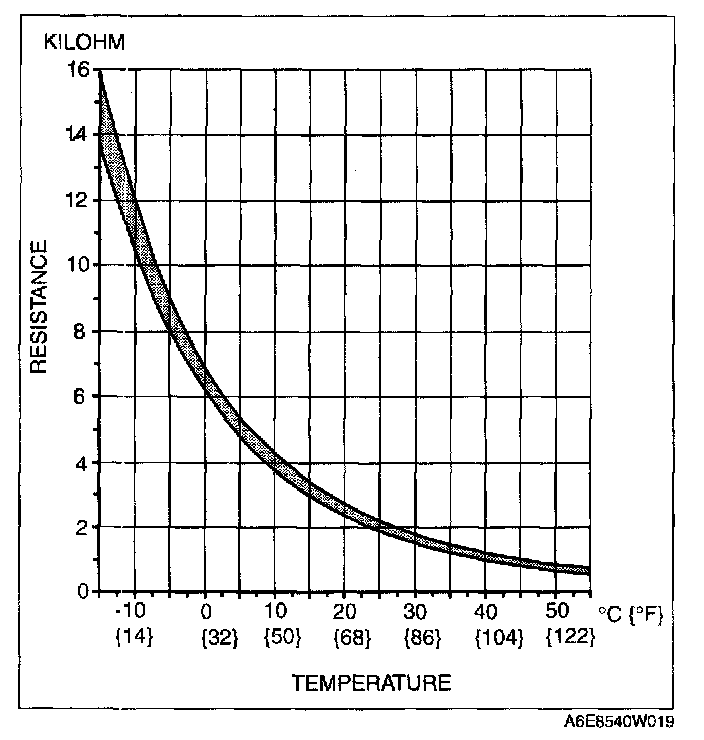

- If the resistance is not as shown in the graph, replace the evaporator temperature sensor.
