Disassembly and Assembly

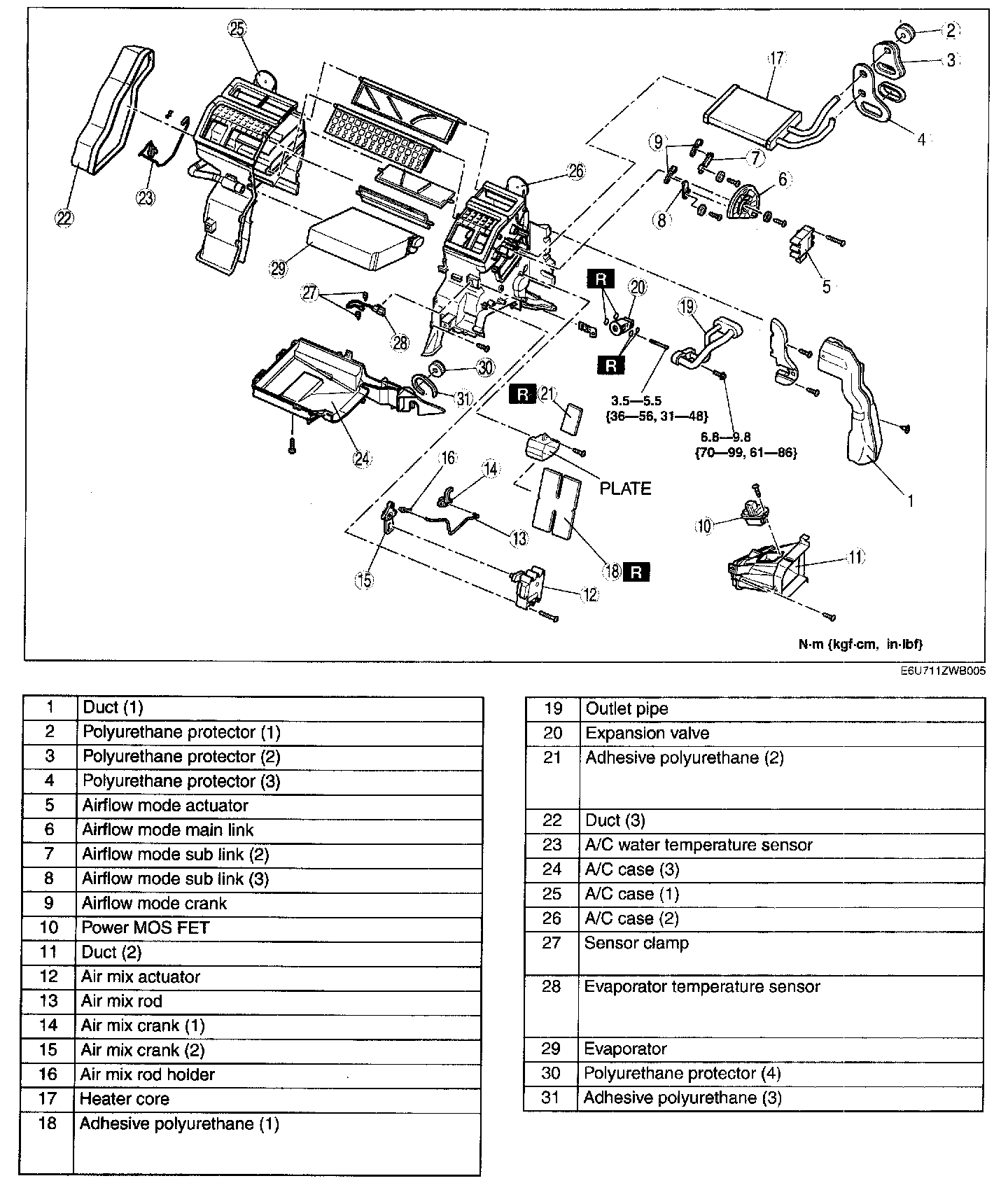

A/C UNIT DISASSEMBLY/ASSEMBLY




1. Disassemble in the order indicated in the above table.
2. Assemble in the reverse order of disassembly.

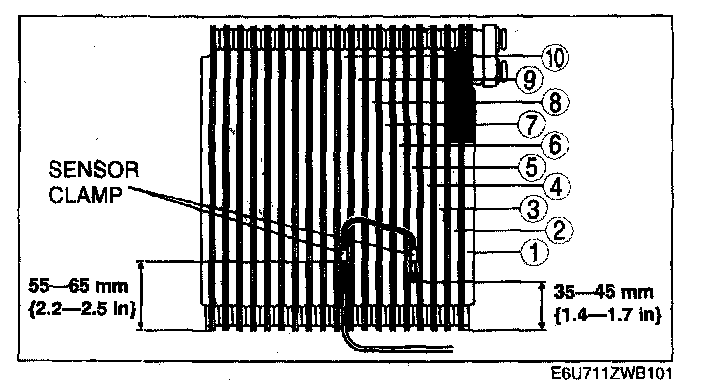

Evaporator Temperature Sensor Assembly Note




1. Assemble the evaporator temperature sensor as shown in the above figure.

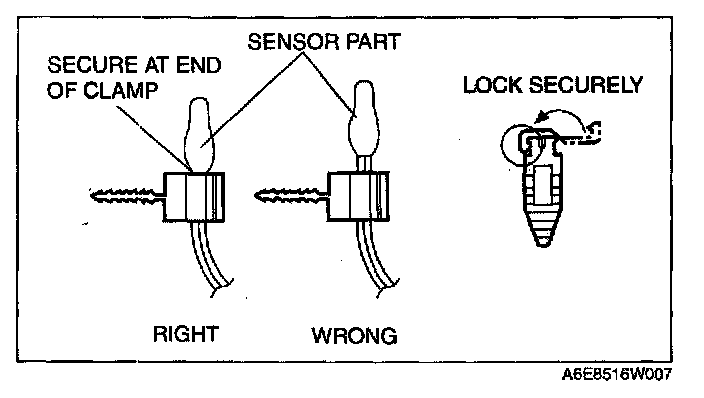

Sensor Clamp Assembly Note




1. Attach the sensor (clamp as shown in the above figure.

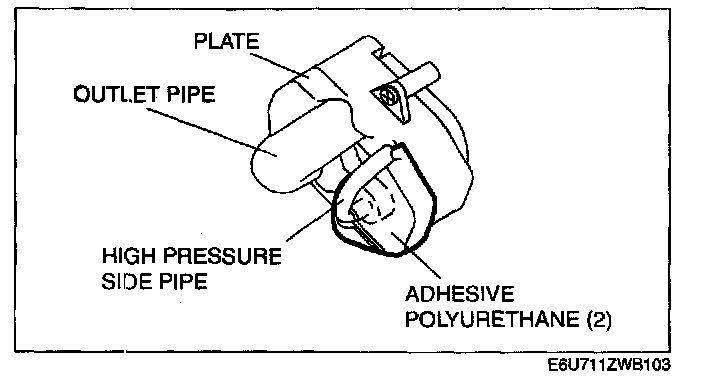

Adhesive polyurethane (2) Assembly Note




1. Attach the adhesive polyurethane (2) as shown in the figure.
2. After assembling the outlet pipe as shown in the figure, attach the adhesive polyurethane (2) so that it adheres around the high-pressure side of the outlet pipe.

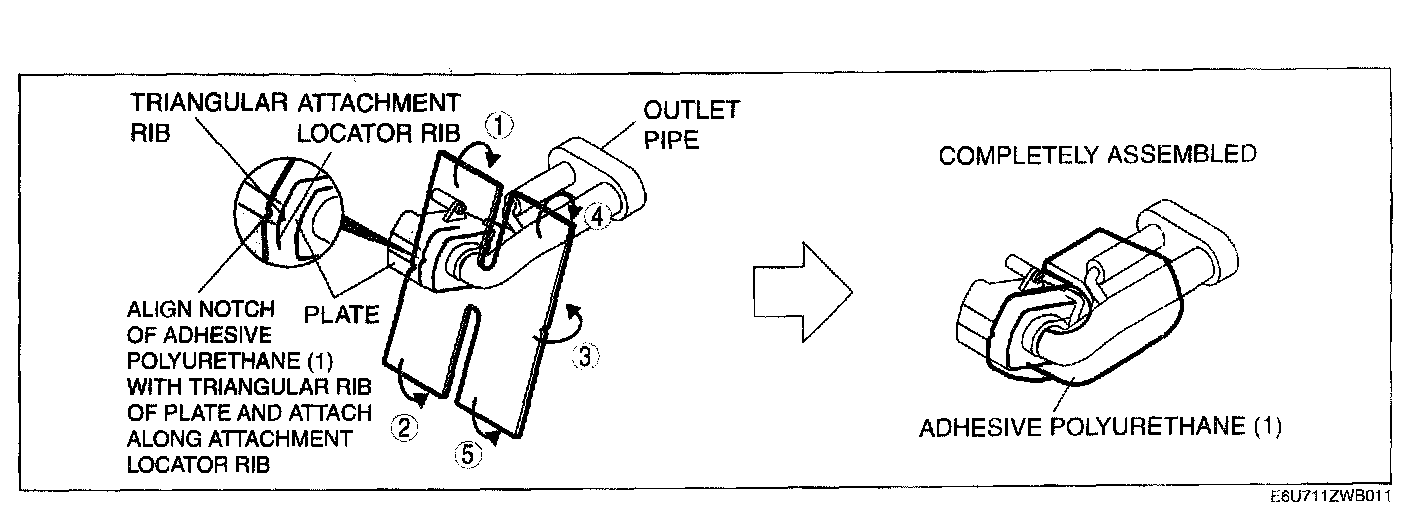

Adhesive polyurethane (1) Assembly Note




1. Attach the adhesive polyurethane (2) as shown in the above figure.

Adhesive polyurethane (1) Assembly Note




1. Attach the adhesive polyurethane (2) as shown in the above figure.
