Power Transistor HVAC: Service and Repair

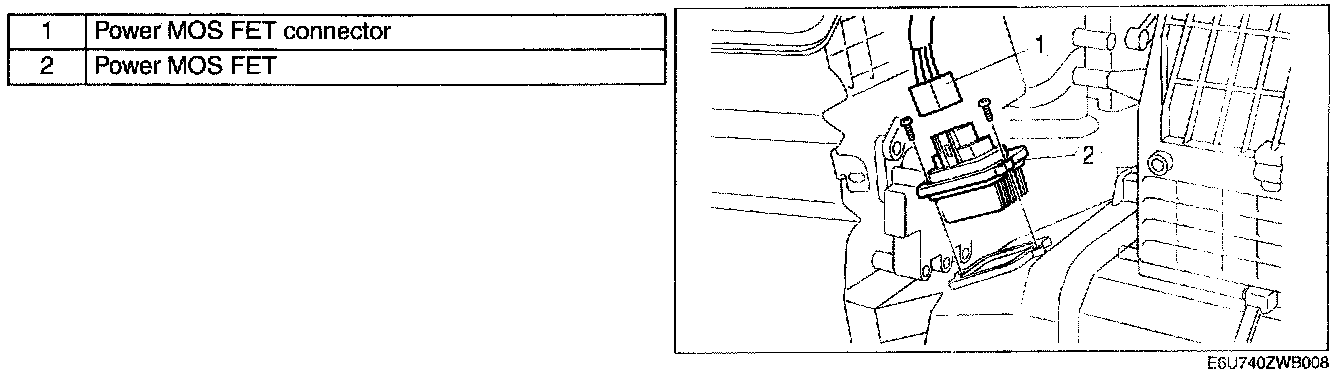

POWER METAL OXIDE SEMICONDUCTOR FIELD EFFECT TRANSISTOR (POWER MOS FET) REMOVAL/INSTALLATION) 1.
Disconnect the negative battery cable.
2.
Remove the glove compartment.
3.
Remove the car navigation unit.
4.
Remove in the order indicated in the above table.
