Refrigerant Pressure Sensor / Switch: Service and Repair

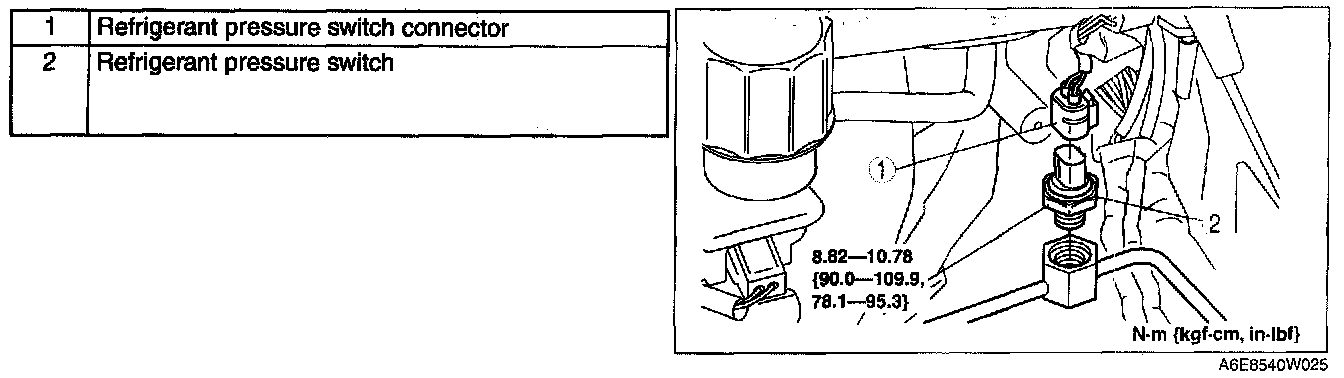

REFRIGERANT PRESSURE SWITCH REMOVAL/INSTALLATION

1. Remove the battery.
2. Discharge the refrigerant from the system. (See REFRIGERANT RECOVERY.)
3. Loosen the refrigerant pressure switch using two spanners.

4. Remove in the order indicated in the above table.
5. Install in the reverse order of removal.

Refrigerant Pressure Switch Installation Note
1. Apply compressor oil to O-ring and connect the joint.
