Drive Belt: Service and Repair

DRIVE BELT REPLACEMENT [L3 WITH TC]

1. Remove the splash shield (RH).

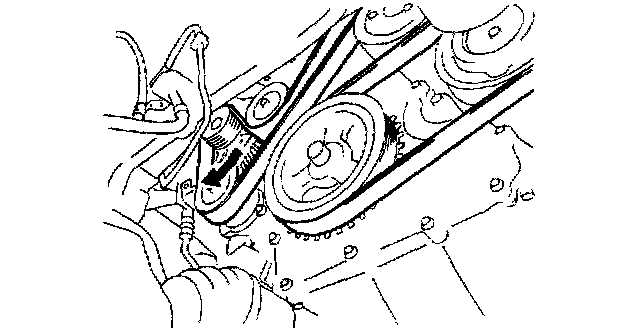

2. Rotate the drive belt auto tensioner in the direction shown in the figure and remove the drive belt.
3. Install a new drive belt.
4. Verify that the drive belt auto tensioner indicator mark does not exceed the limit.
5. Install the splash shield (RH).
