Diagnostic Monitoring Test Results Access Procedure

Diagnostic Monitoring Test Results Access Procedure

1. Perform the necessary vehicle preparation and visual inspection.

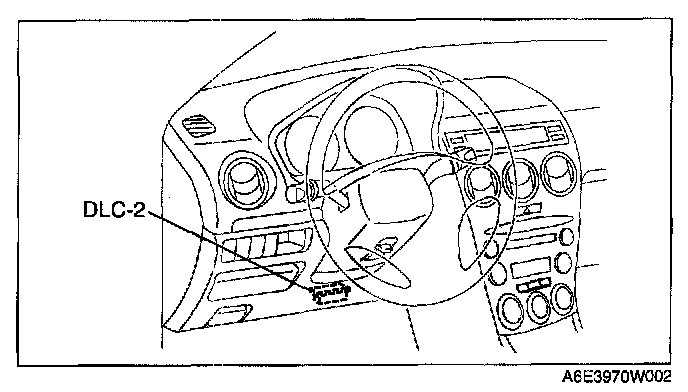

2. Connect the WDS or equivalent to the vehicle DLC-2 16-pin connector located on the left side of the center console.
3. Access to the DIAGNOSTIC MONITORING TEST RESULTS and read the test results using the WDS or equivalent.
