EGR Valve: Service and Repair
EGR VALVE REMOVAL/INSTALLATION 1.
Disconnect the negative battery cable.
2.
Disconnect the
EGR valve connector.
3.
Drain the engine coolant.
4.

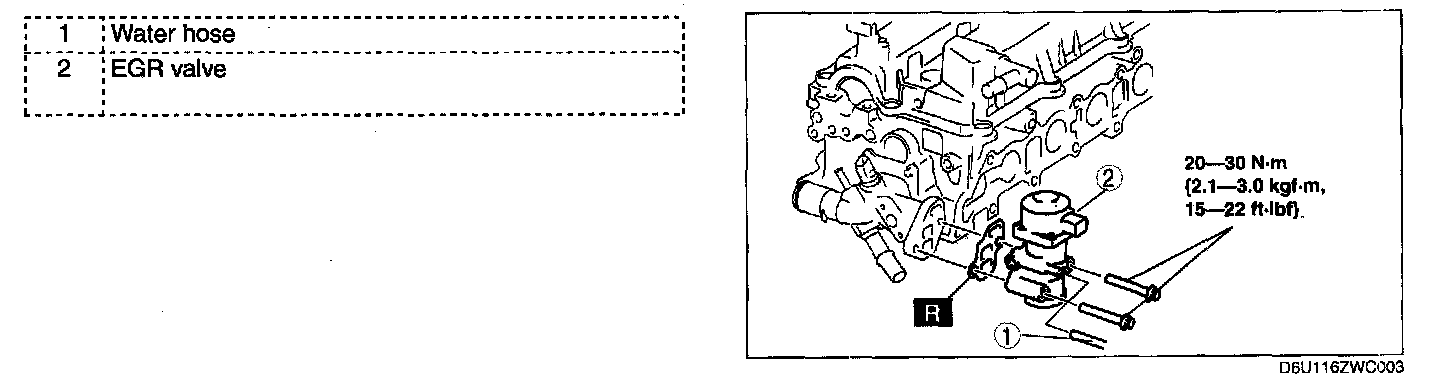

Remove in the order indicated in the table.
5.
Install in the reverse order of removal.
EGR Valve Removal Note 1.
Remove the air hose.
