Ignition Coil: Service and Repair

IGNITION COIL REMOVAL/INSTALLATION [L3 WITH TC]

1. Disconnect the negative battery cable.
2. Remove the charge air cooler.

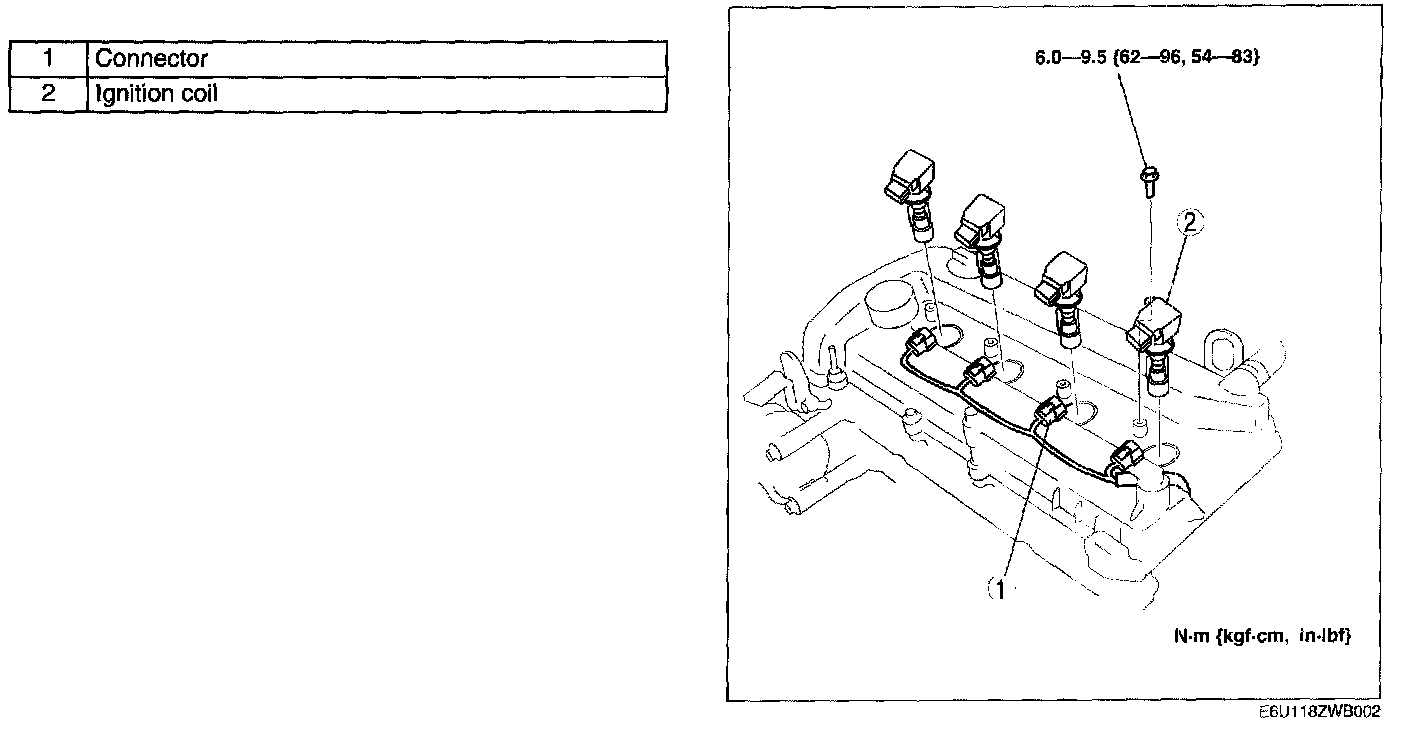

3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.
