Ignition Coil: Testing and Inspection

IGNITION COIL INSPECTION [L3 WITH TC]

Ignition Coil Inspection

1. Perform the spark test and identify the malfunctioning cylinder.
2. Replace the ignition coil of the malfunctioning cylinder with that of a normal cylinder, and reperform the spark test.
- If the spark is not normal due to a malfunctioning ignition coil, replace that ignition coil.
- It is unlikely that all four ignition coils fail to operate properly To prevent replacing a normal component, perform the above procedure, identify the malfunctioning ignition coil, and replace it.

Ignition Coil With Built-in Igniter Inspection

1. Disconnect the ignition coil connector.

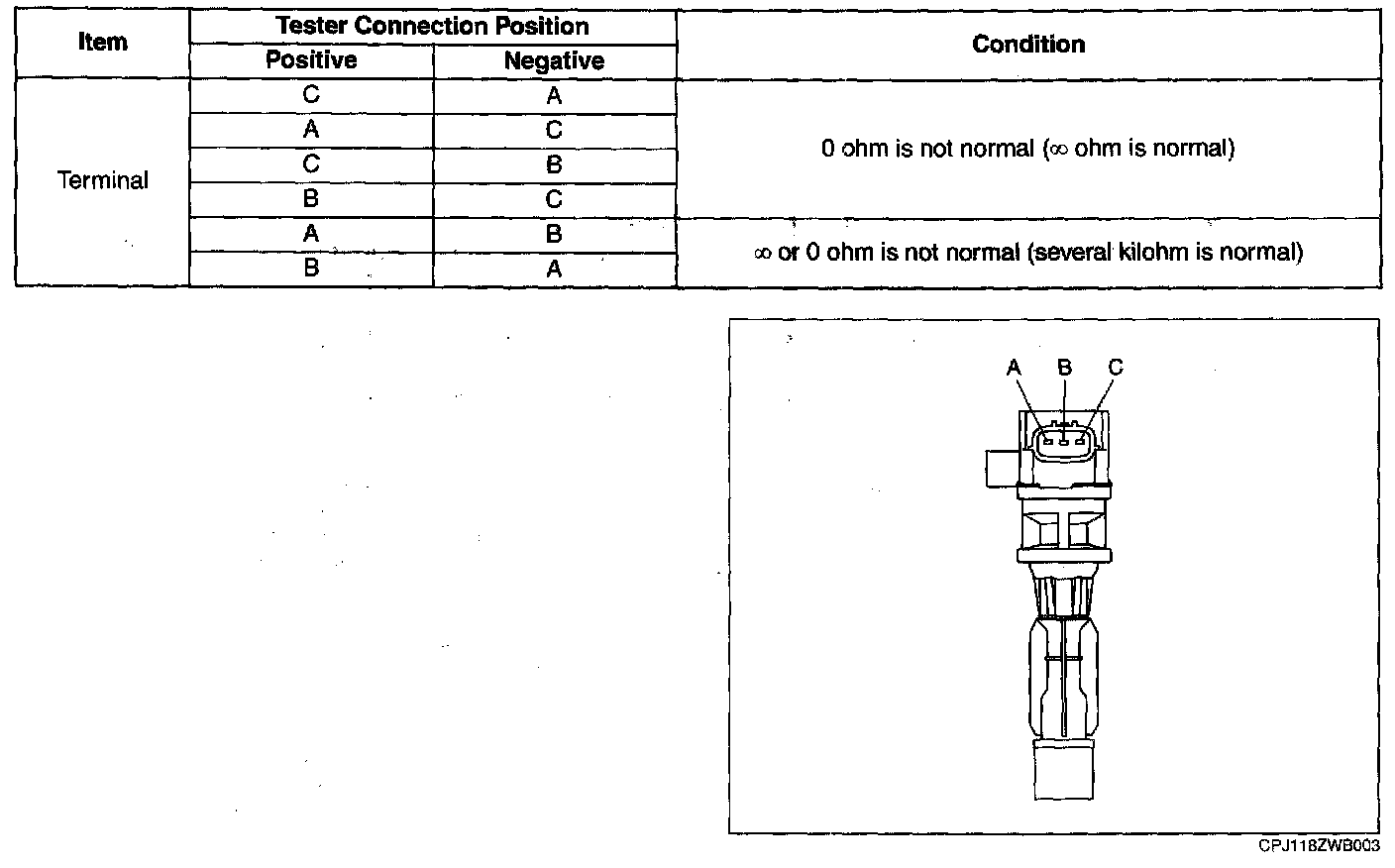

2. Measure the resistance between each terminal on the ignition coil connector using an analog circuit tester.




- If the measurement corresponds to the table, replace the ignition coil.
