Ignition System: Testing and Inspection
Spark Test1. Disconnect the fuel pump relay.
2. Disconnect the injector driver module connector.
3. Verify that each ignition coil and connector is connected properly.

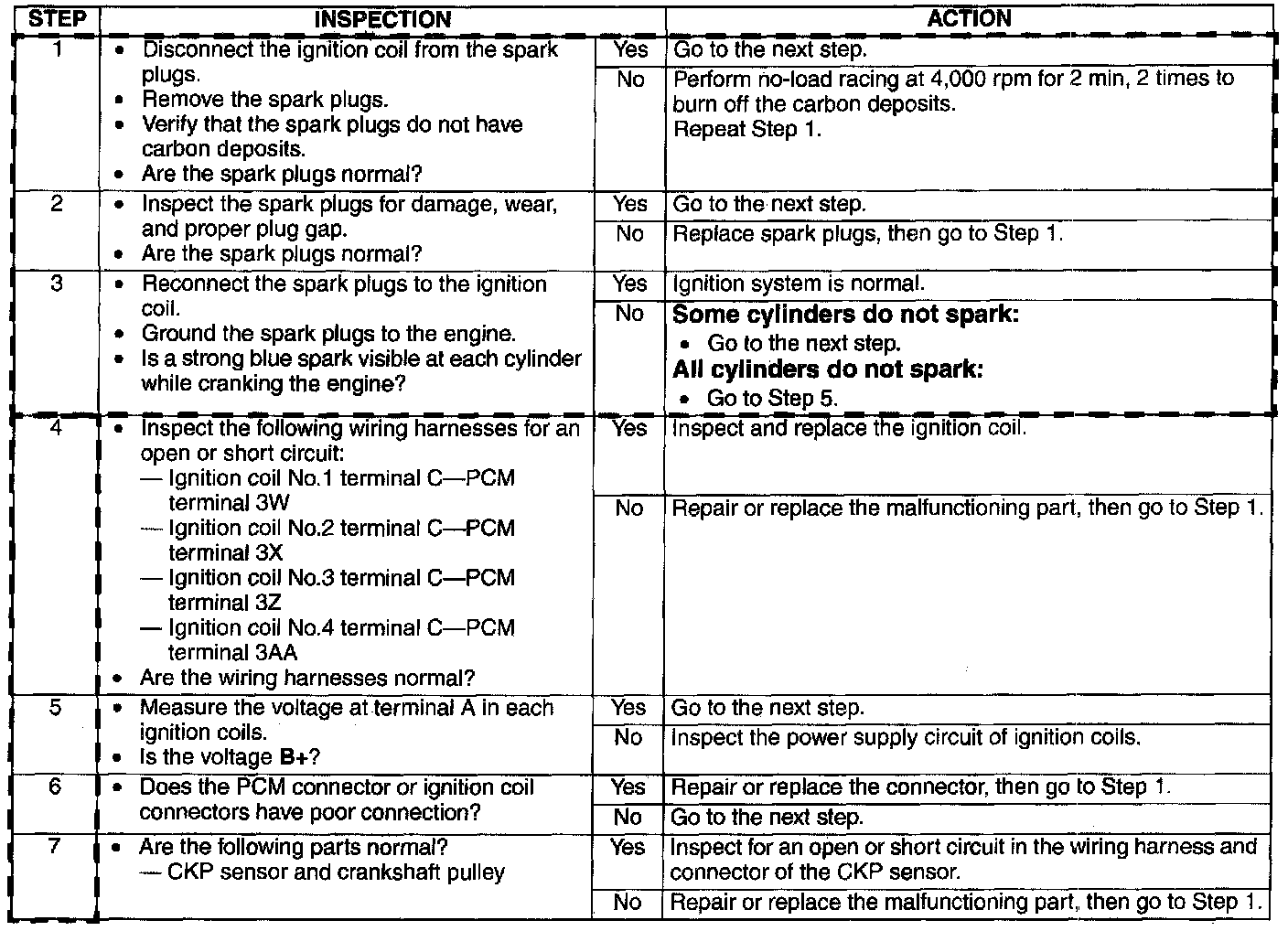

4. Inspect the ignition system in the following procedure.
5. Clear the DTC from PCM memory using the WDS or equivalent, after perform the spark test procedures and reconnect the injector driver module connector. After Repair Procedure
WARNING: High voltage in the ignition system can cause strong electrical shock which can result in serious injury. Avoid direct contact to the vehicle body during the following spark test.
