Technical Data A26M-R

TECHNICAL DATA

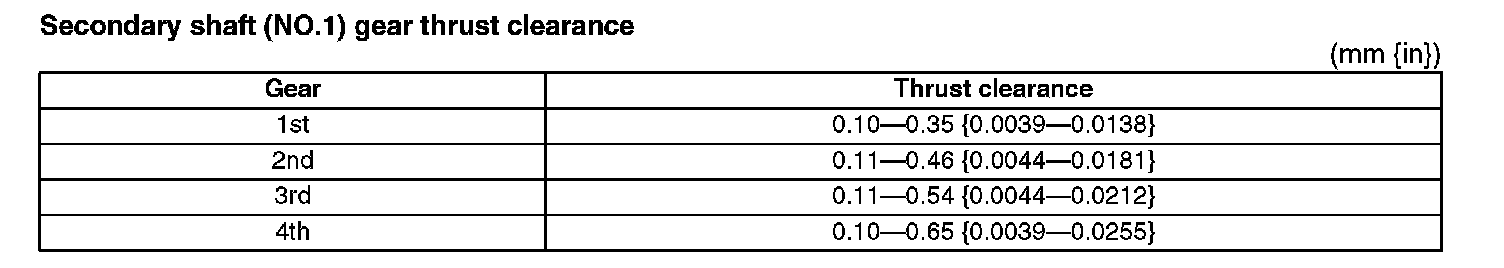

Secondary shaft (NO.1) gear thrust clearance

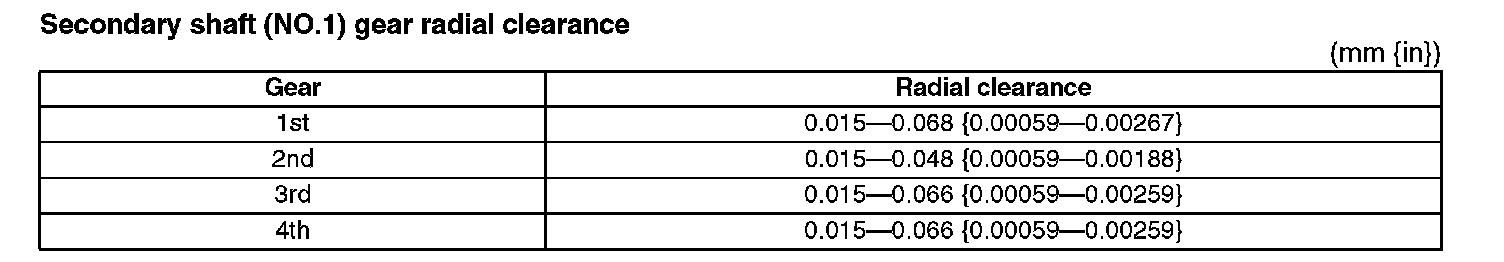

Secondary shaft (NO.1) gear radial clearance

Secondary shaft (NO.2) gear thrust clearance

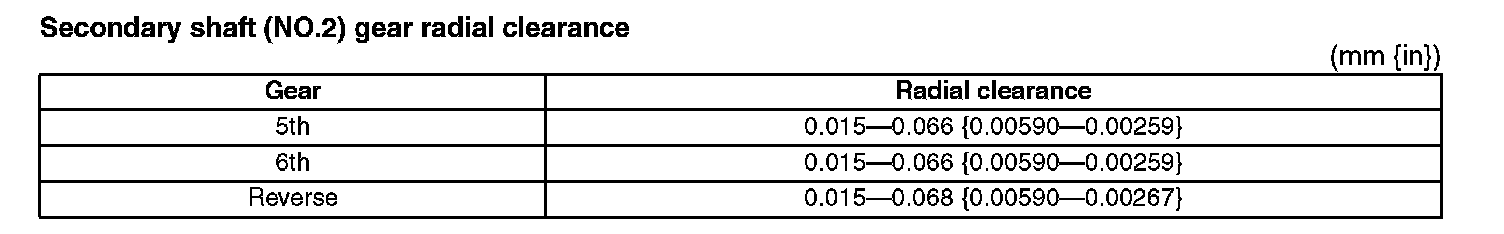

Secondary shaft (NO.2) gear radial clearance

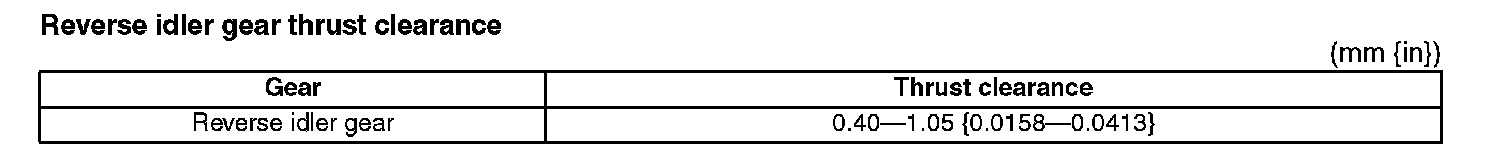

Reverse idler gear thrust clearance

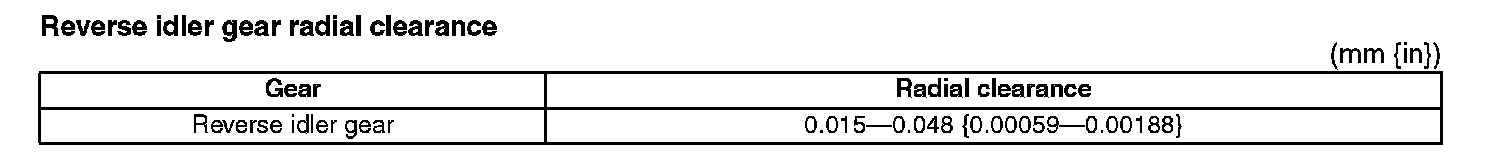

Reverse idler gear radial clearance

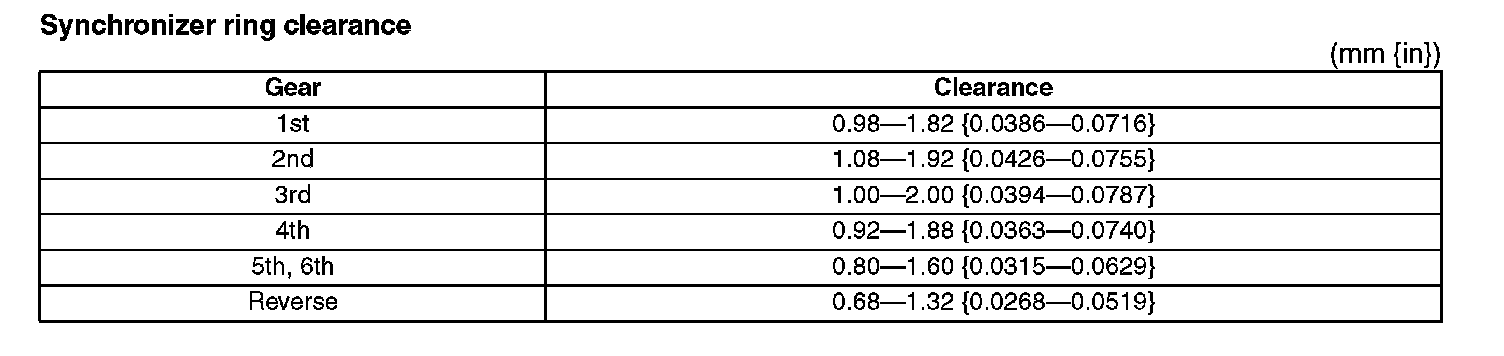

Synchronizer ring clearance

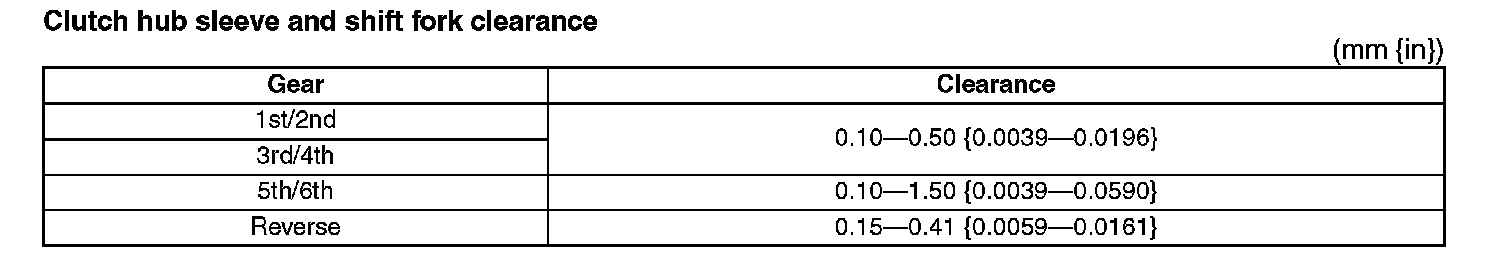

Clutch hub sleeve and shift fork clearance

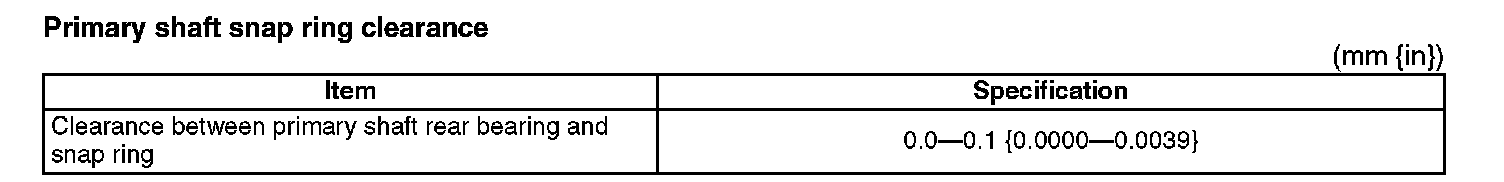

Primary shaft snap ring clearance

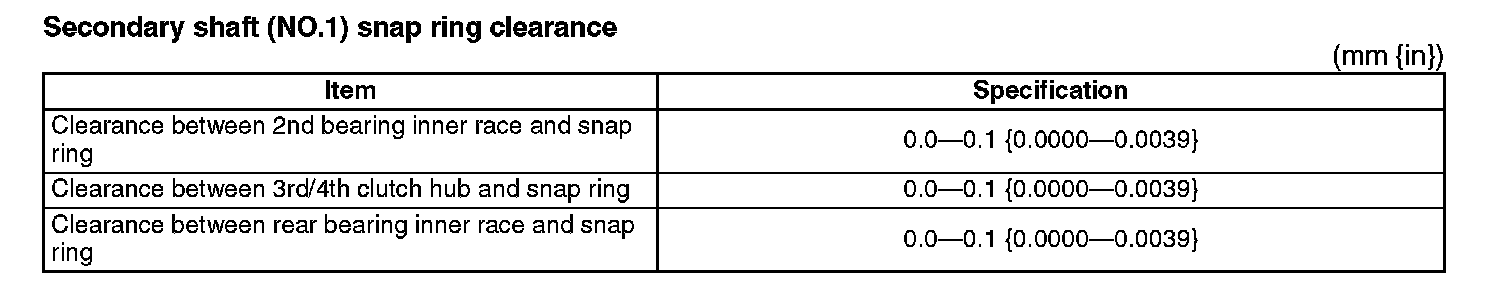

Secondary shaft (NO.1) snap ring clearance

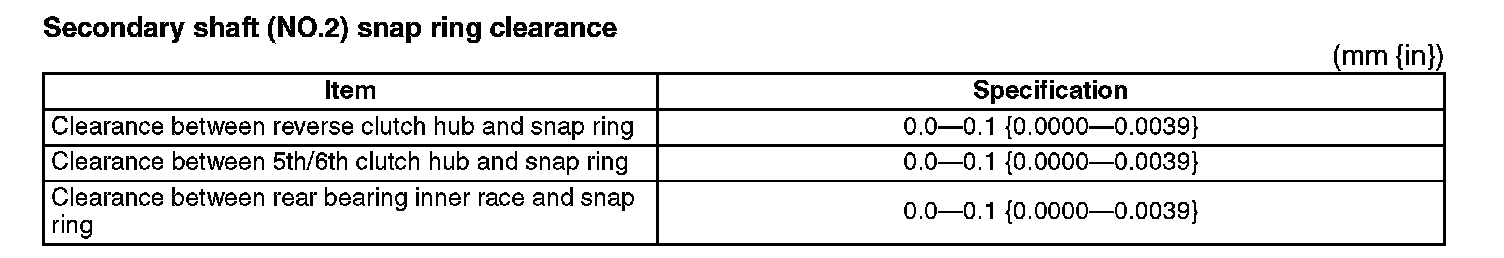

Secondary shaft (NO.2) snap ring clearance

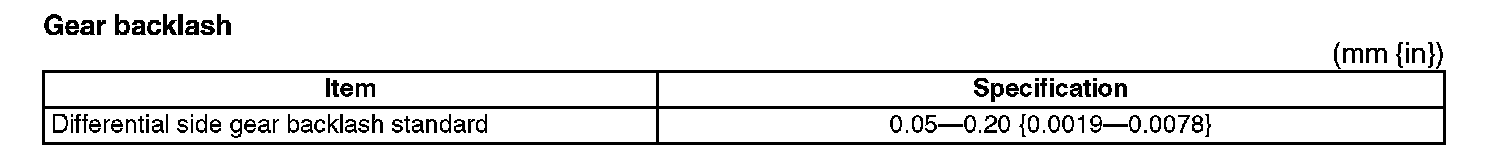

Gear backlash

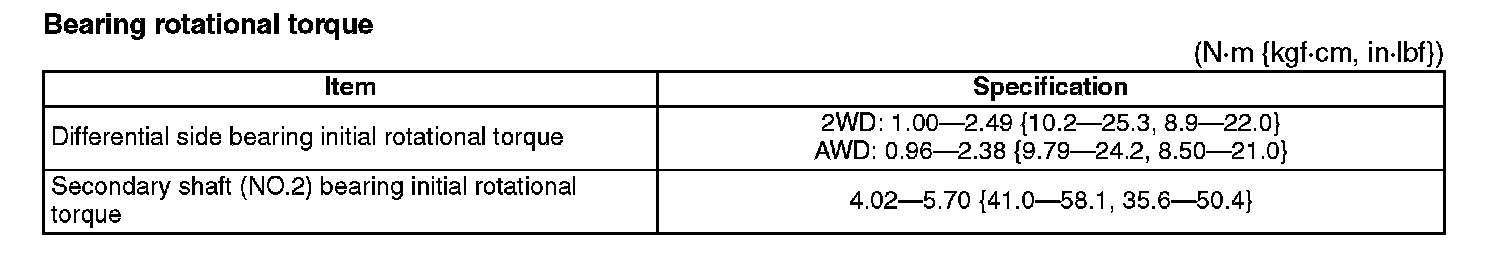

Bearing rotational torque
