Rear Differential Removal/Installation

REAR DIFFERENTIAL REMOVAL/INSTALLATION E6UO3142710OW06





1. Drain the rear differential oil into a container.
2. Remove the after silencer, presilencer, and catalytic converter.
3. Remove the propeller shaft.
4. Remove the rear drive shaft.

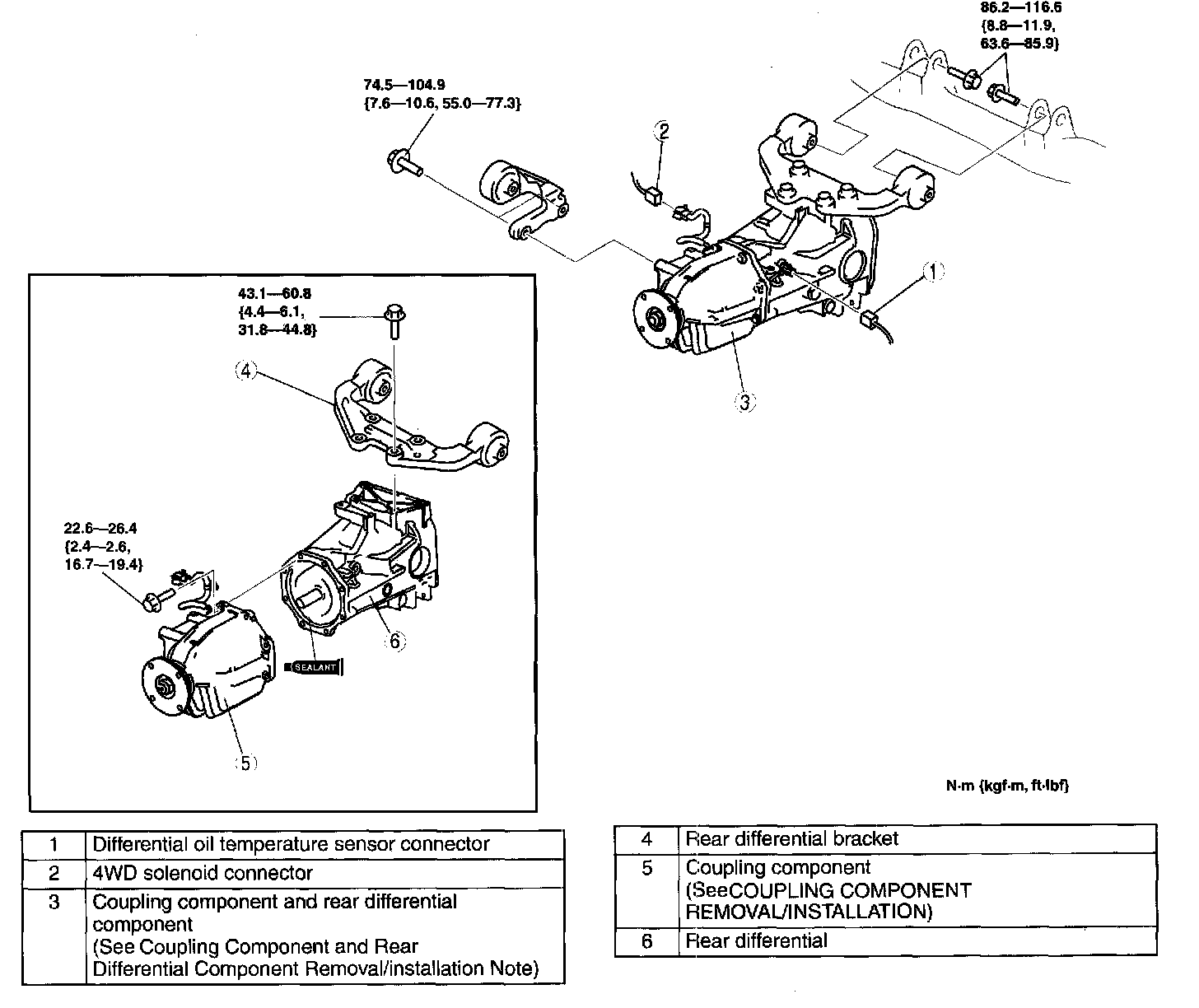

5. Remove in the order indicated in the table.
6. Install in the reverse order of removal.
7. Add the specified rear differential oil.

Coupling Component and Rear Differential Component Removal/installation Note





Warning:
^ Make sure that the coupling component and rear differential component are securely supported by the jack. If the coupling component and rear differential component fall, it could cause death, serious injury, or vehicle damage.

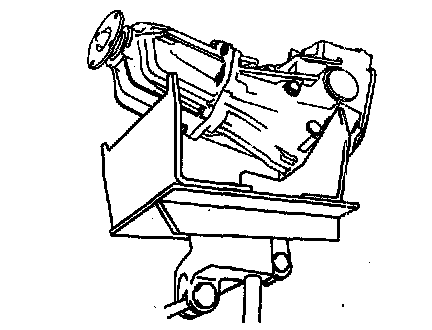

1. Make sure that the coupling component and rear differential component are securely supported by the jack, and remove/install the component by operating the jack gradually.
