Flywheel: Specifications

Flywheel bolts

A26MX-R

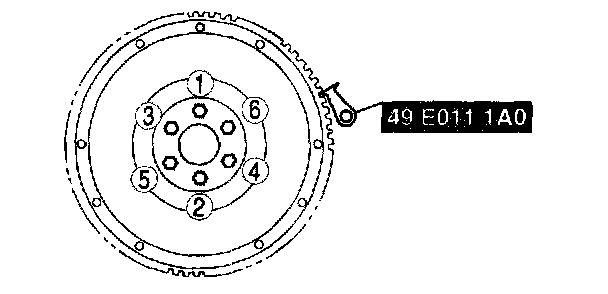

Gradually tighten the flywheel lock bolts in a crisscross pattern.

Tightening torque 151.3 - 161.1 Nm (15.3 - 16.4 kgf.m, 111.6 - 118.8 ft. lbs.)

G35M-R, A65M-R

G35M-R manual transaxle models:

A65M-R manual transaxle models:

Gradually tighten the flywheel lock bolts in a crisscross pattern.

Tightening torque
G35M-R manual transaxle models 108 - 115 Nm (11.1 - 11.7 kgf.m, 79.7 84.8 ft. lbs.)
A65M-R manual transaxle models 73 - 87 Nm (7.5 - 8.8 kgf.m, 54 - 64 ft. lbs.)
