Ring Gear Assembly Note

Ring Gear Assembly Note

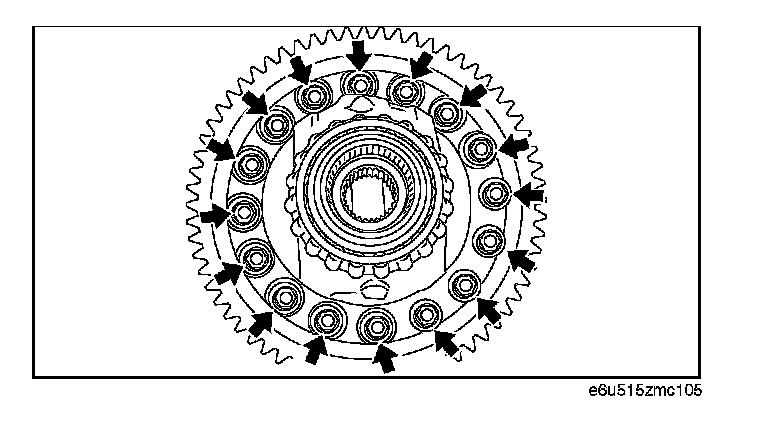

1. Assemble the gear case component and ring gear, and tighten the bolts in a crisscross pattern in a few passes.

Tightening torque:
99.7 - 112.3 N-m (10.2 - 11.4 kgf-m, 73.6 - 82.8 ft-lbf)
