Reassembly

Reassembly

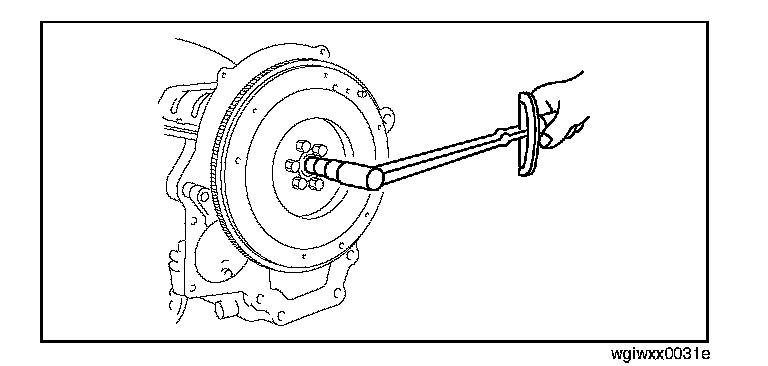

^ Standard values, such as torques and certain adjustments, must be strictly observed in the reassembly of all parts.
^ If removed, the following parts should be replaced with new ones:
- Oil seals
- Gaskets
- O-rings
- Lockwashers
- Cotter pins
- Nylon nuts





^ Depending on location:

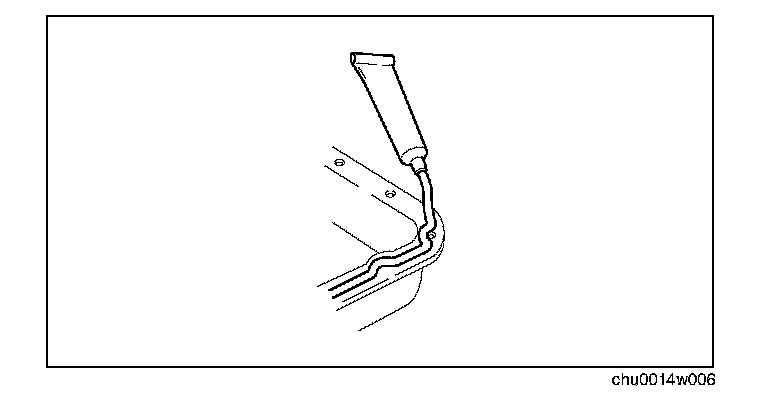

- Sealant and gaskets, or both, should be applied to specified locations. When sealant is applied, parts should be installed before sealant hardens to prevent leakage.
- Oil should be applied to the moving components of parts.
- Specified oil or grease should be applied at the prescribed locations (such as oil seals) before reassembly.
