Washer Fluid Level Indicator: Testing and Inspection
WASHER FLUID-LEVEL SENSOR INSPECTION 1.
Disconnect the negative battery cable.
2.
Remove the front bumper.
3.

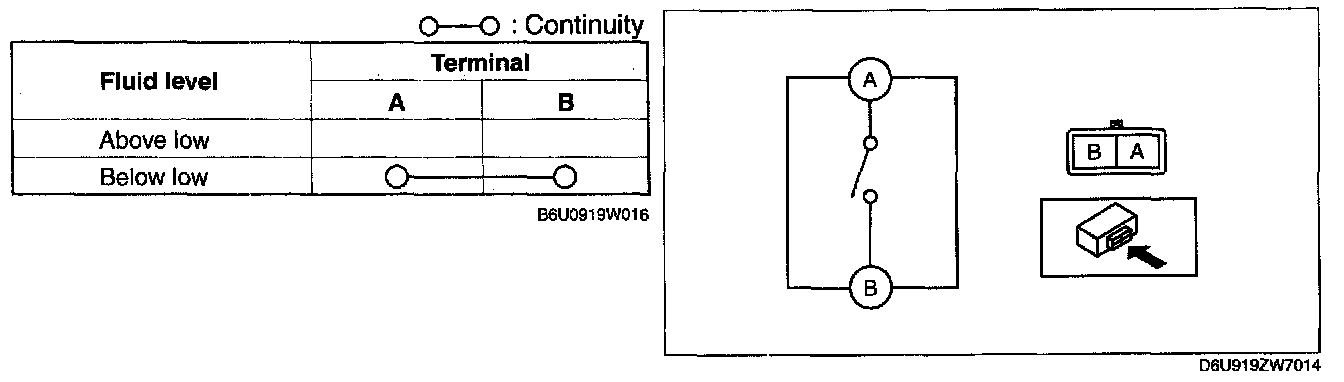

Inspect for continuity between the washer fluid-level sensor terminals using an ohmmeter.
-
If not as specified, replace the washer fluid-level sensor.
