Home >> Mazda >> 2006 >> Tribute 2WD V6-3.0L DOHC >> Repair and Diagnosis >> Body and Frame >> Locks >> Power Locks >> Power Door Lock Control Module >> Locations

Power Door Lock Control Module: Locations

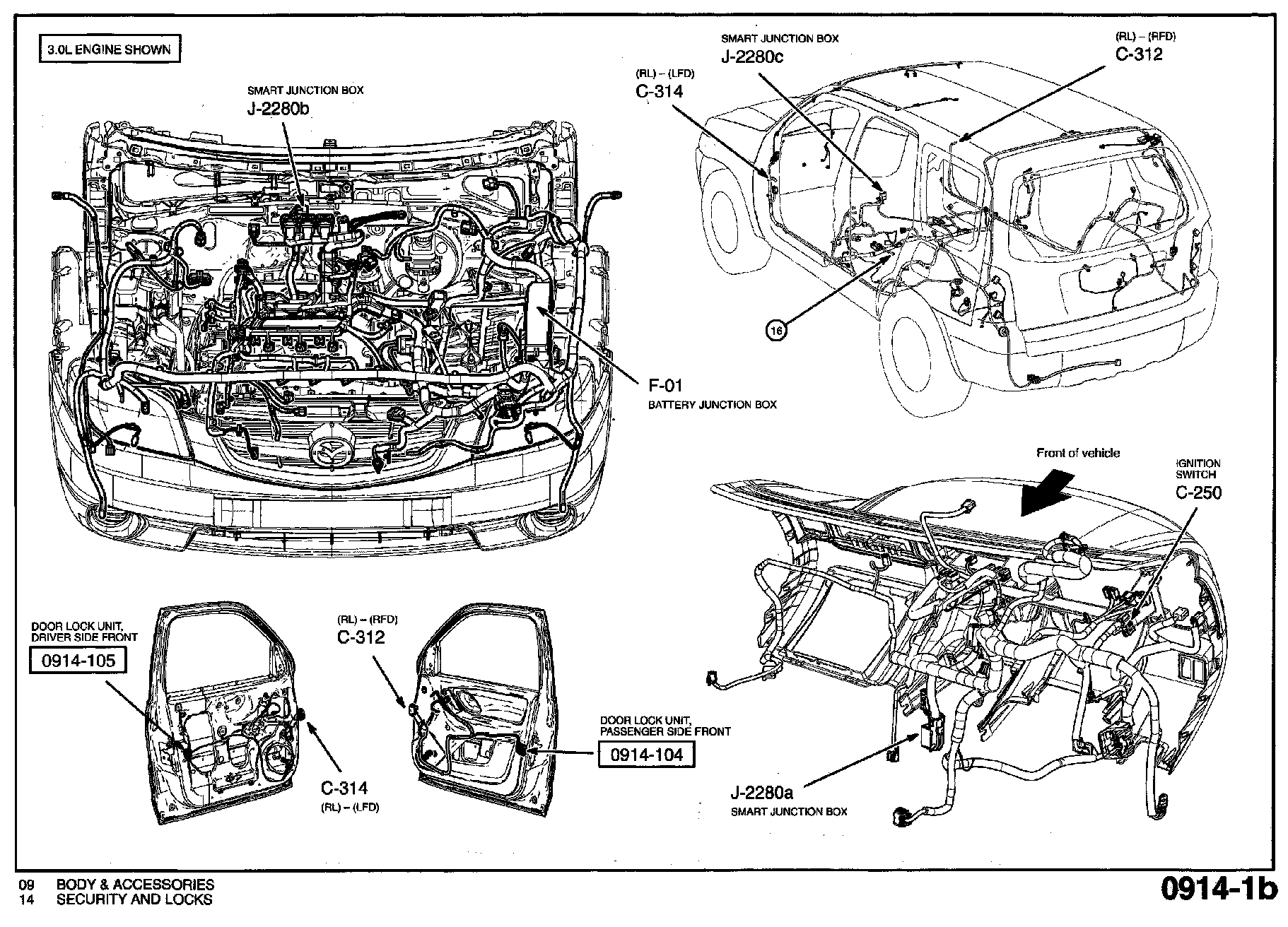

Routing View 0914-1b:
