Home
>>
Mazda
>>
2006
>>
Tribute 2WD V6-3.0L DOHC
>>
Repair and Diagnosis
>>
Body and Frame
>>
Seats
>>
Seat Temperature Control Module
>>
Locations
>>
Heated Seat Module, Driver Side
Heated Seat Module, Driver Side

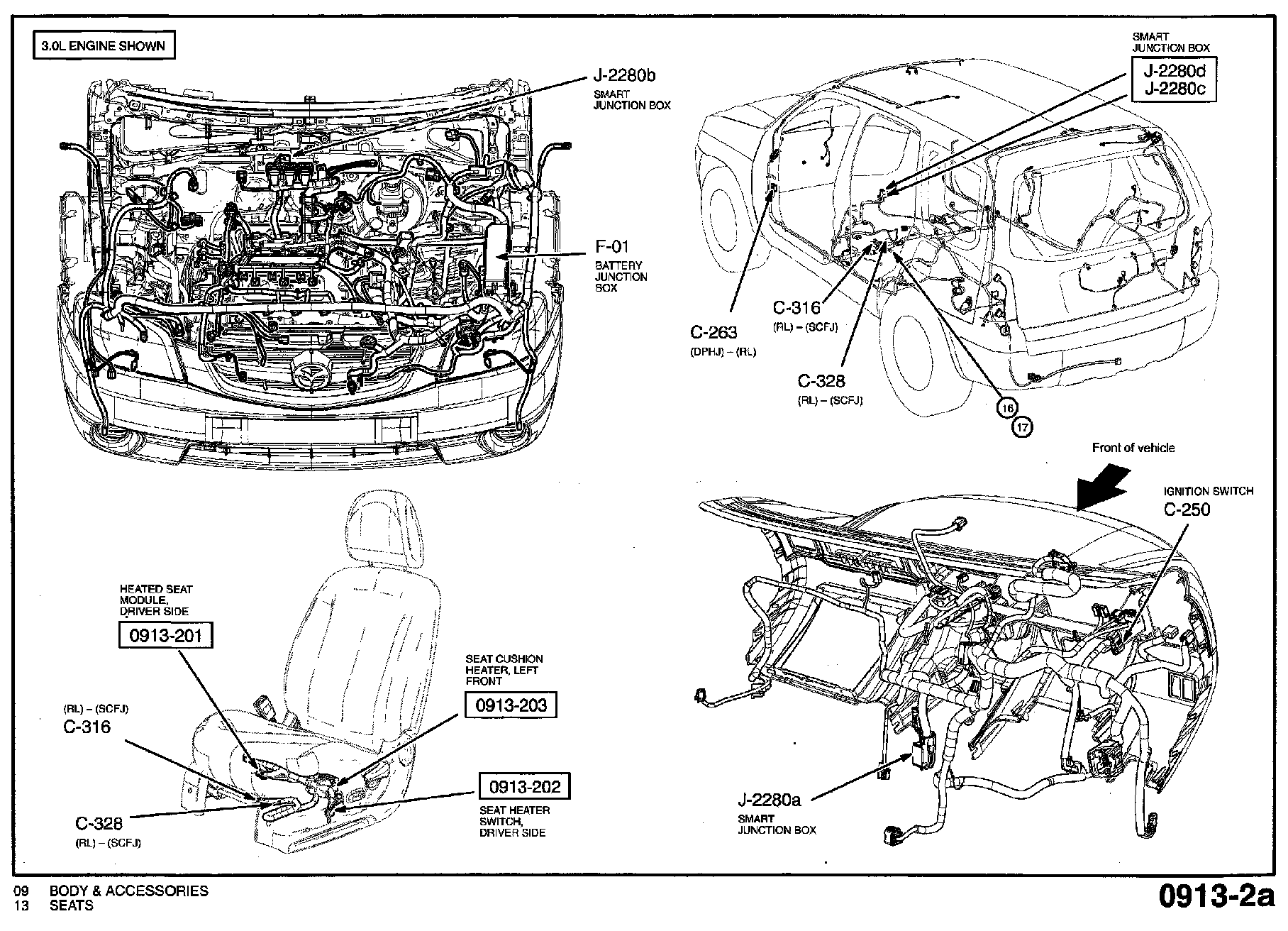

Routing View 0913-2a:
