Function Selector Switch

FUNCTION SELECTOR SWITCH

1. Remove the center instrument panel finish panel.

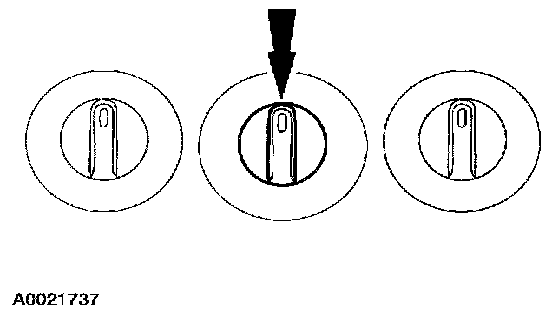

2. Remove the function selector switch knob.

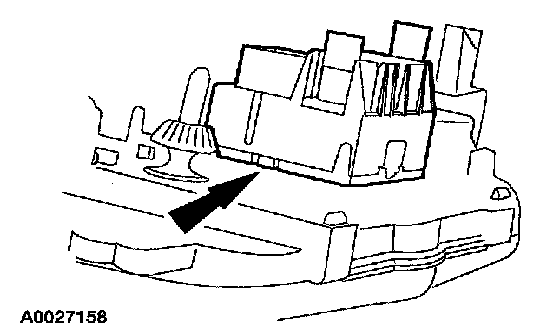

3. Remove the function selector switch.
- Depress the locking tab.

NOTE: Align the function selector switch locking tabs with the holes in the housing and press the function selector into the housing. Verify that both locking tabs are secured.

4. To install, reverse the removal procedure.
