Crankshaft Position Sensor: Service and Repair

CRANKSHAFT POSITION (CKP) SENSOR - 3.OL (4V)

Removal and Installation

1. Disconnect the negative battery cable.
2. Raise and support the vehicle.

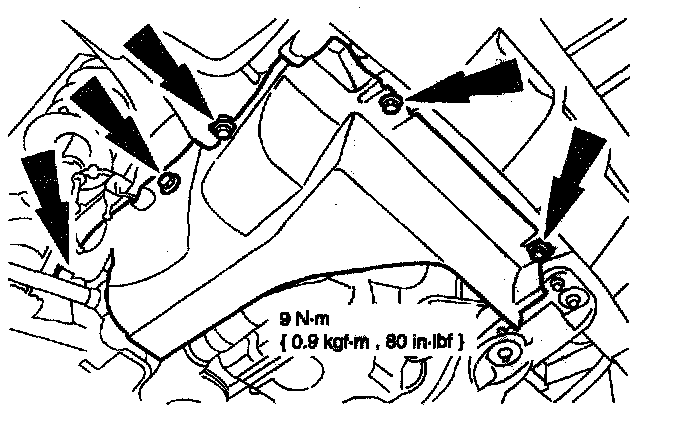

3. Remove the bolts and the right front lower splash shield.
4. Disconnect the electrical connector.
5. Remove the CKP sensor bolt.
6. Remove the CKP sensor.
7. Remove the CKP sensor O-ring.
8. To install, reverse the removal procedure.
