Home >> Mazda >> 2006 >> Tribute 2WD V6-3.0L DOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> Test 14

Test 14

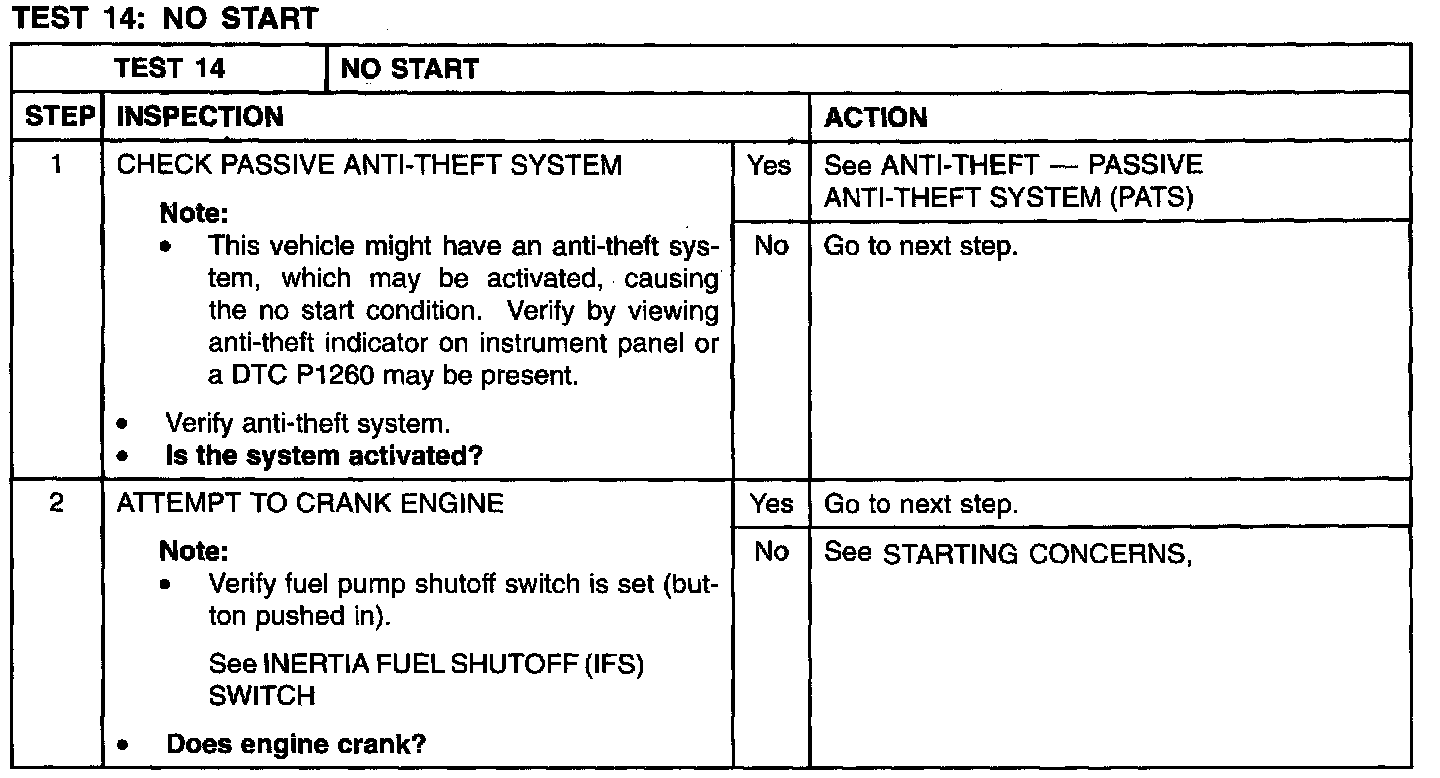

Step 1-Step 2:

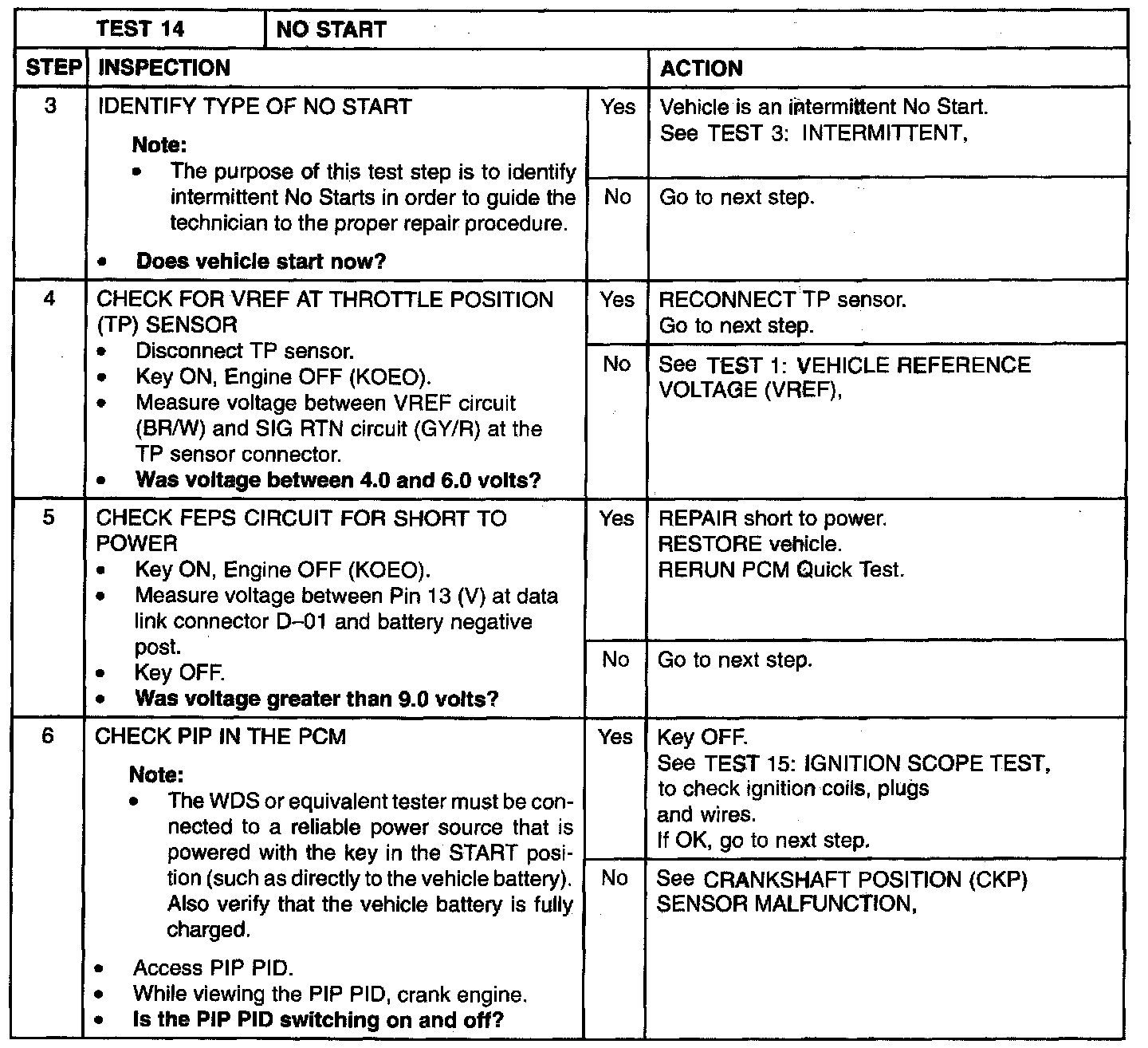

Step 3-Step 6:

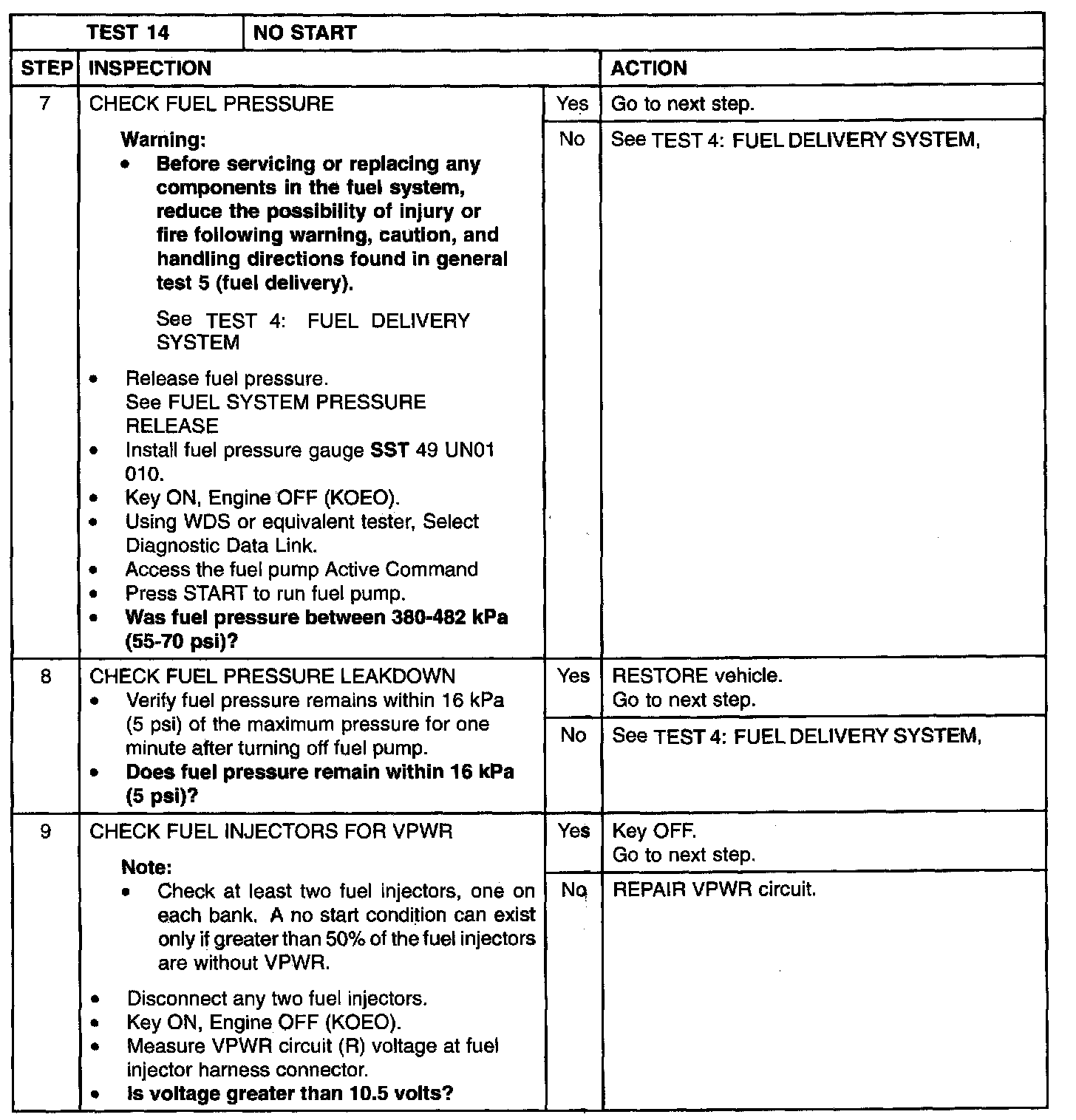

Step 7-Step 9:

Step 10:
