Test 3

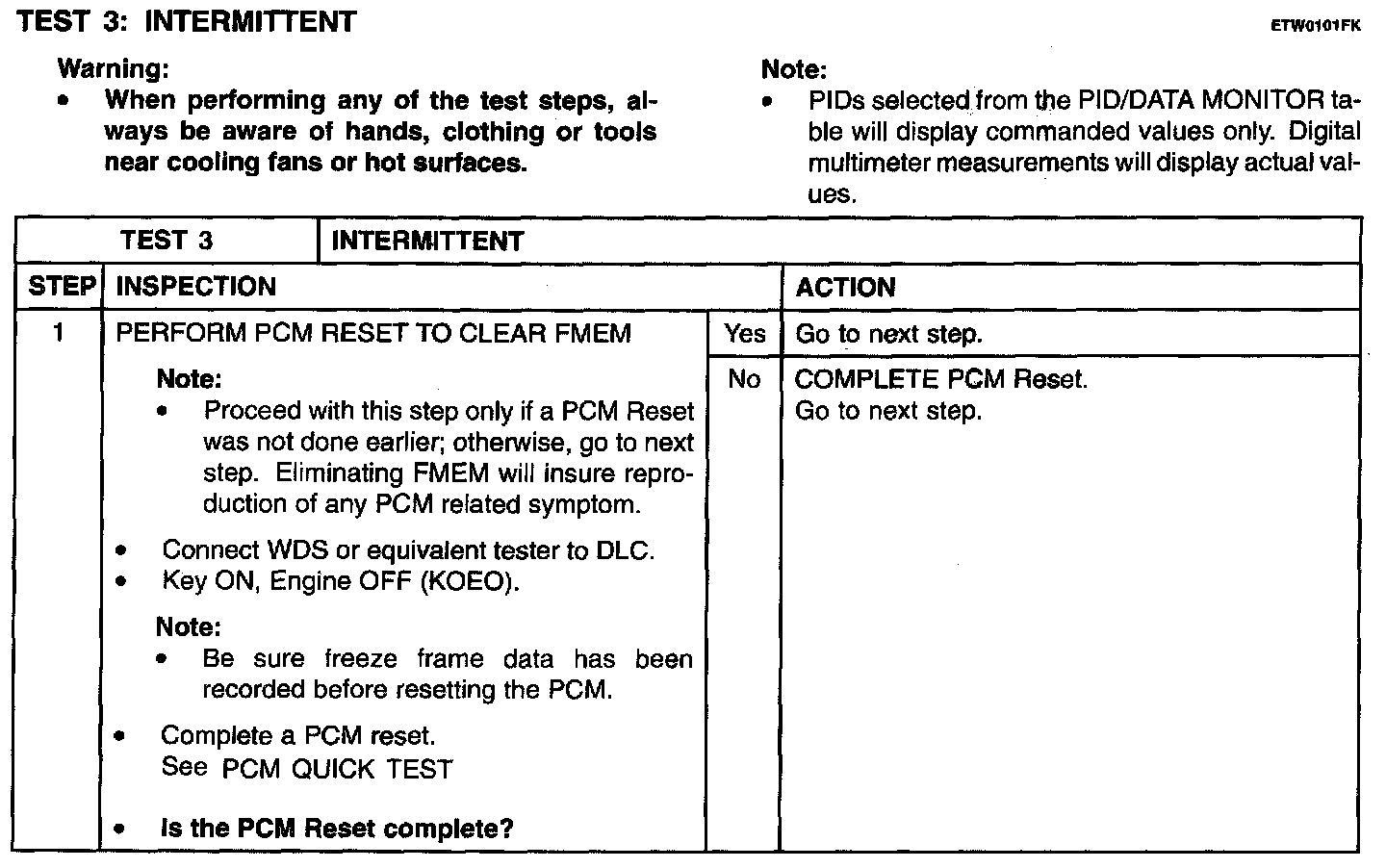

Step 1:



Step 2-Step 4:

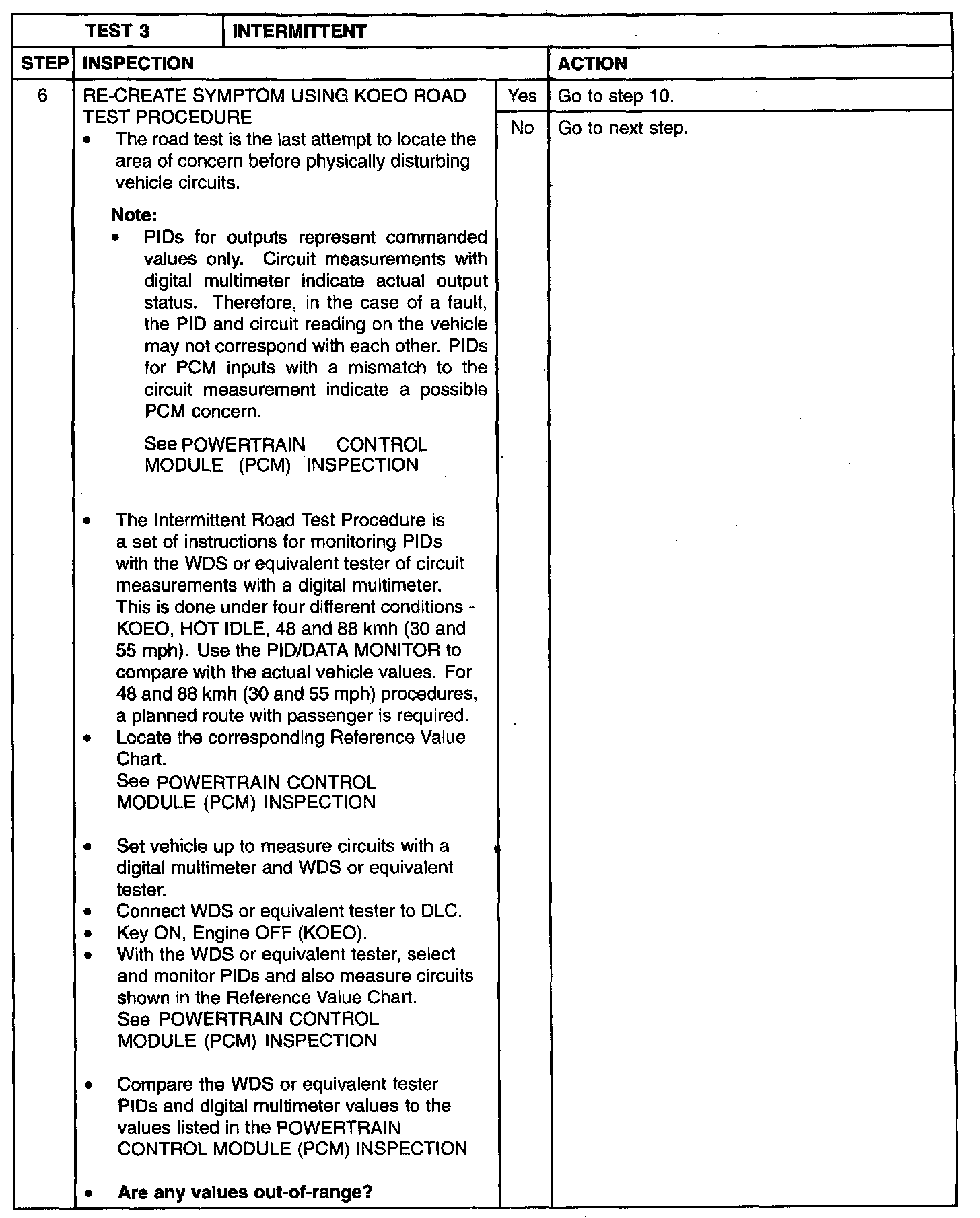

Step 5:



Step 6:



Step 7-Step 9:

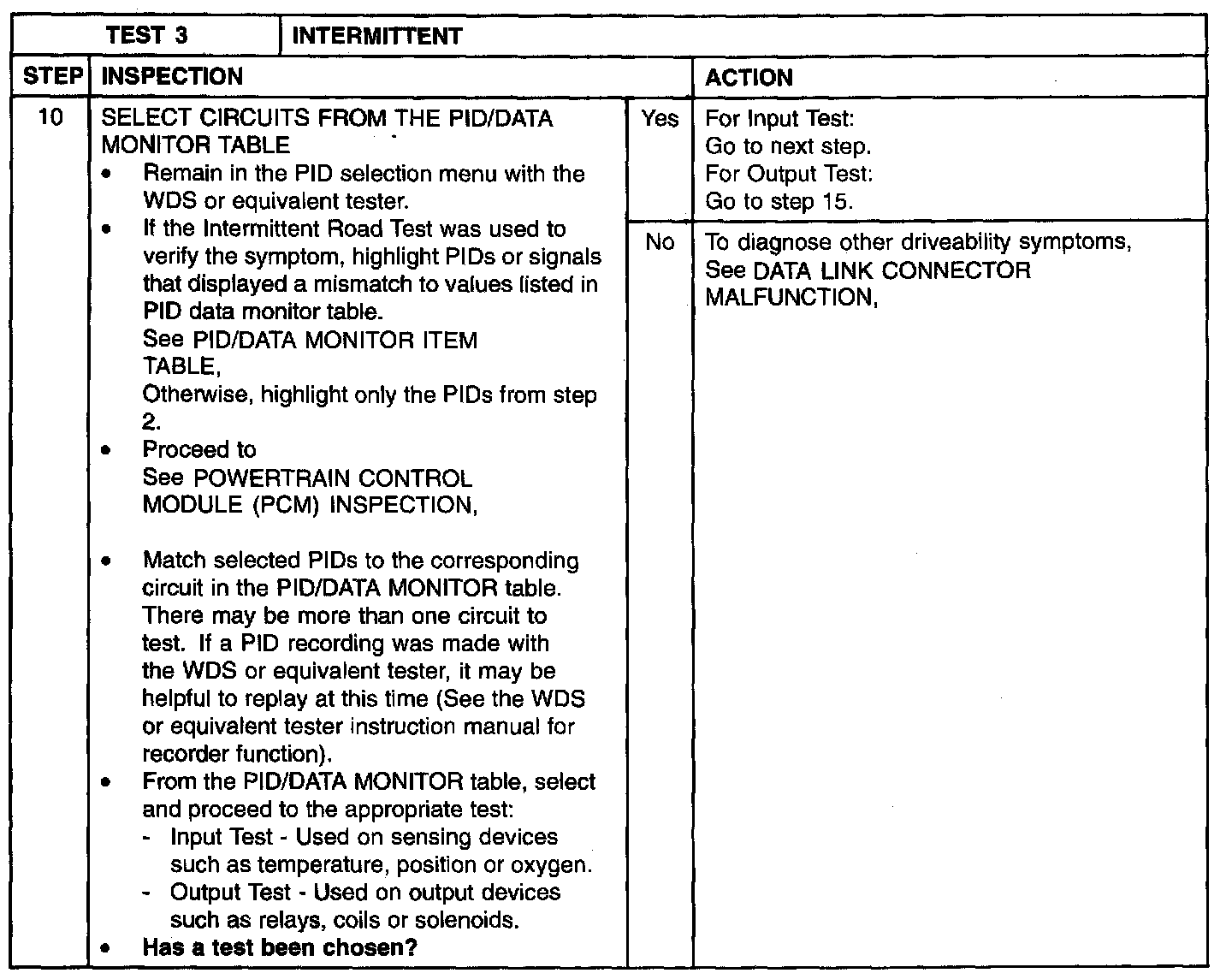

Step 10:

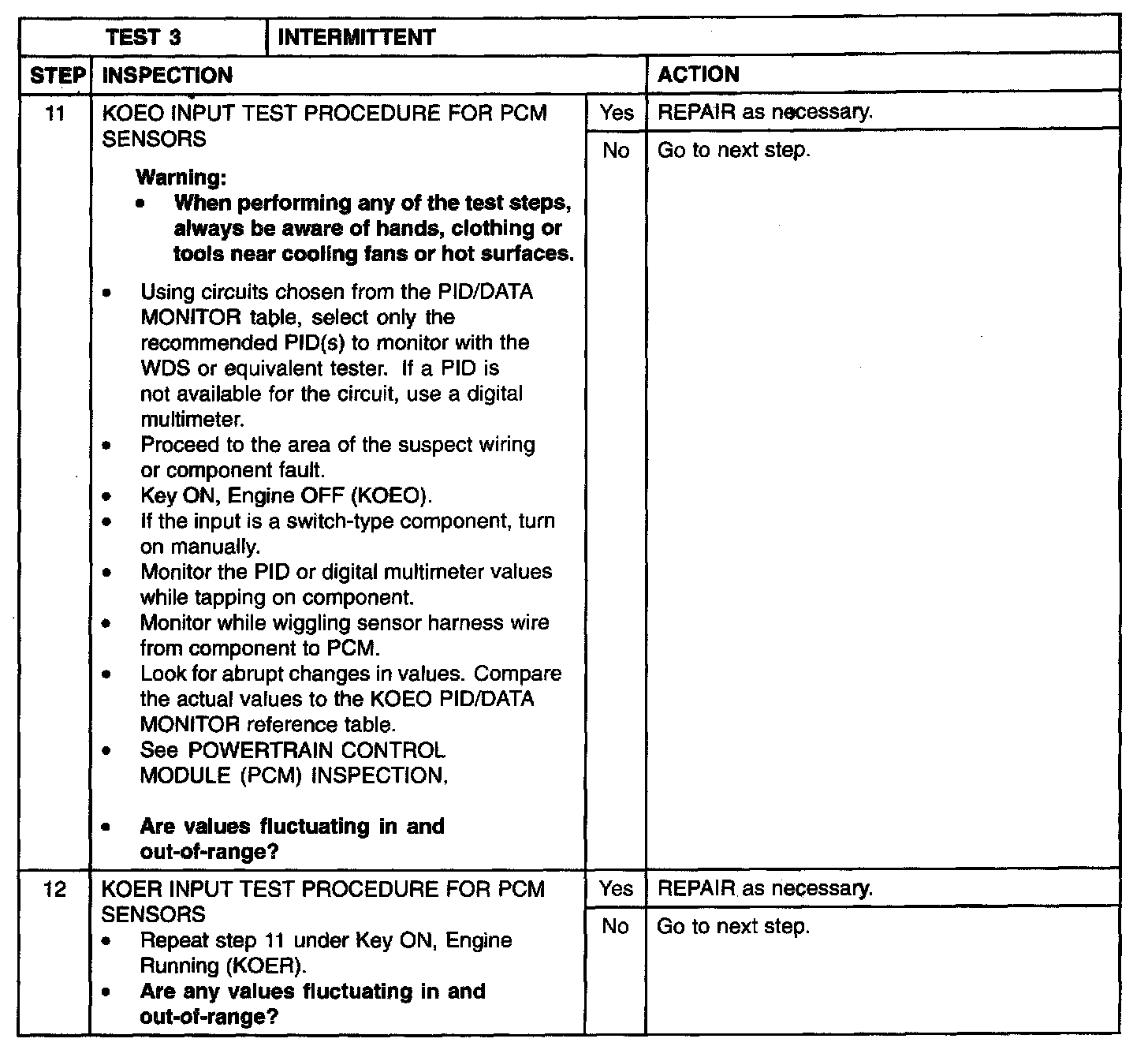

Step 11-Step 12:

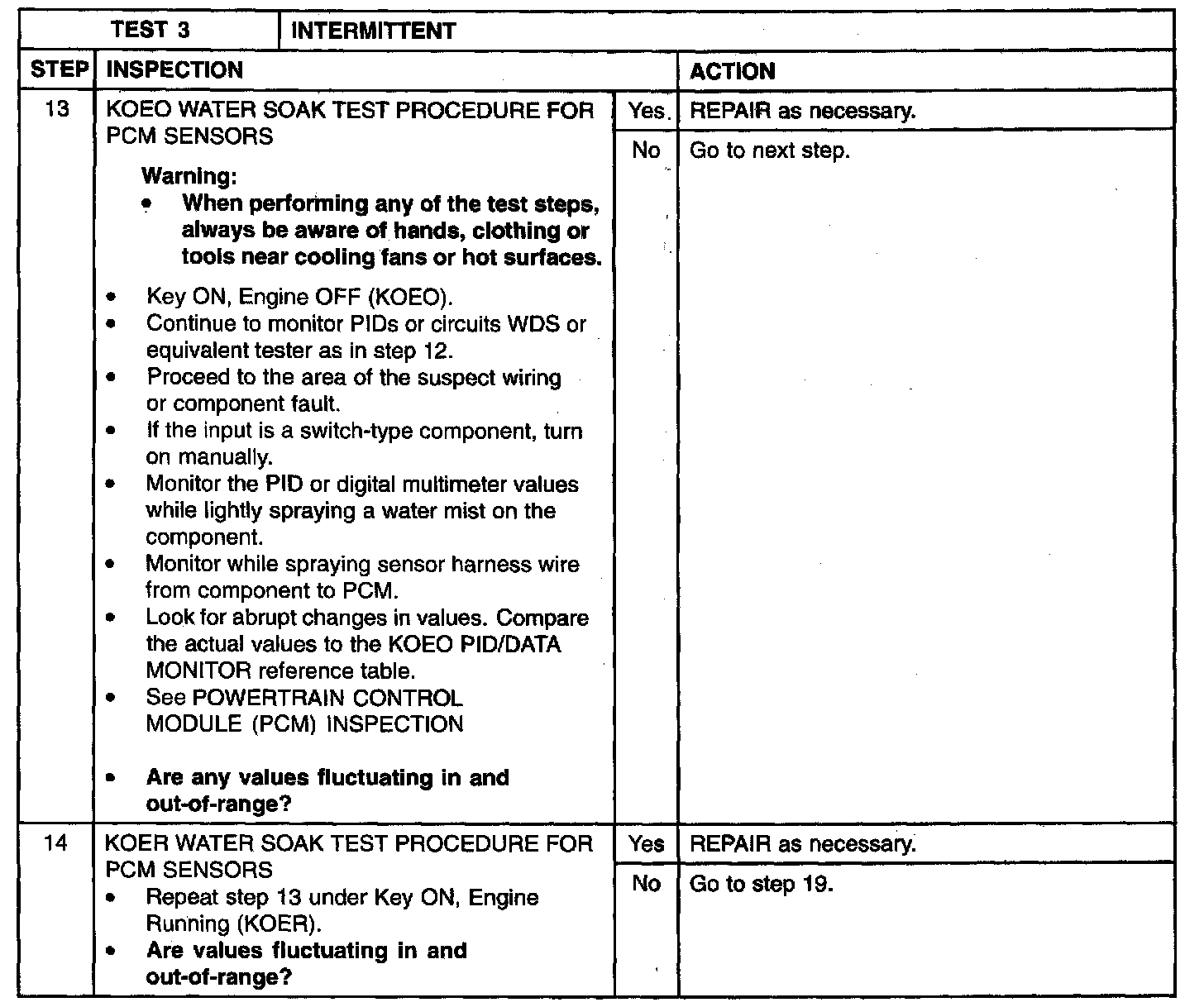

Step 13-Step 14:



Step 15:

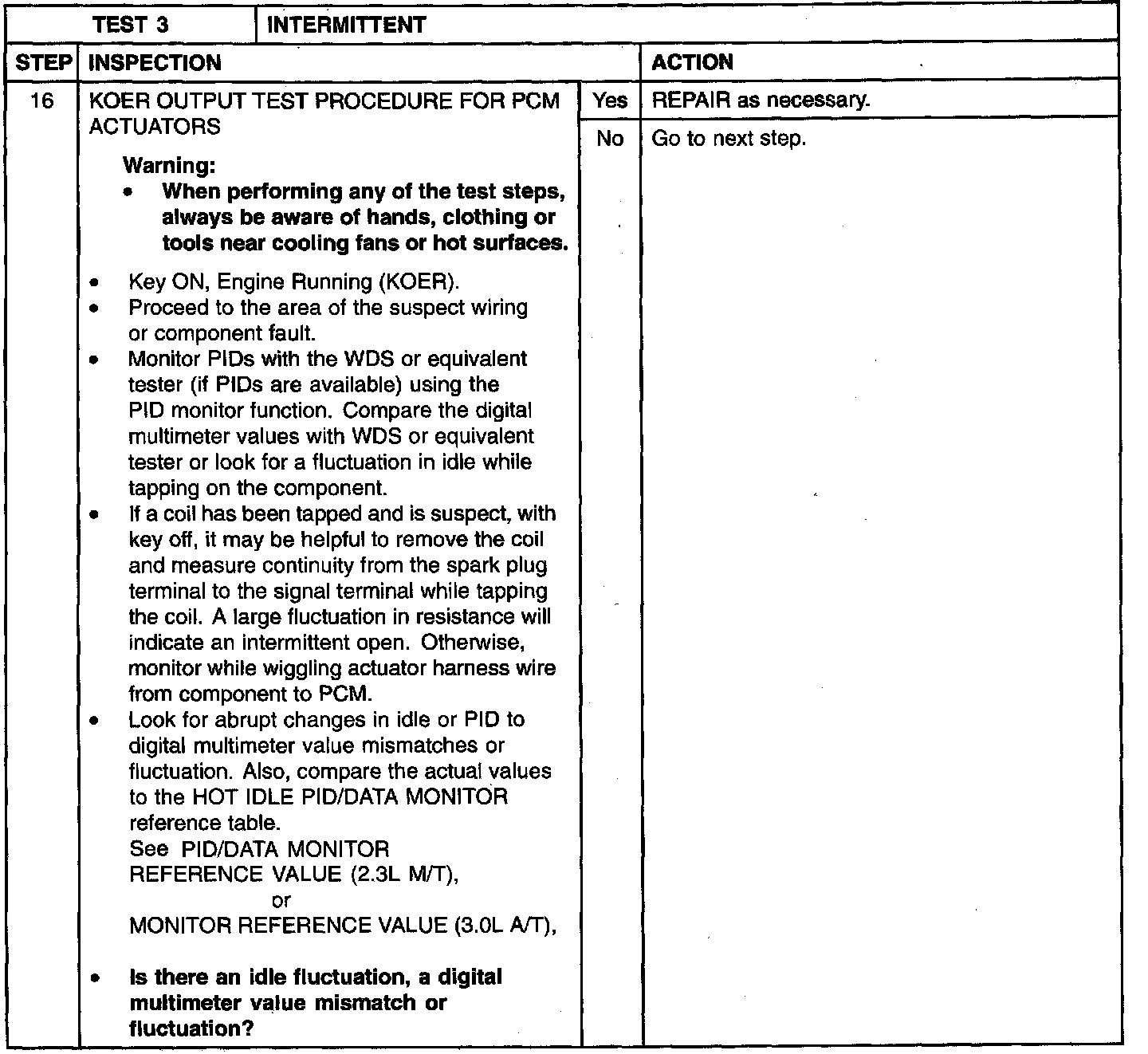

Step 16:

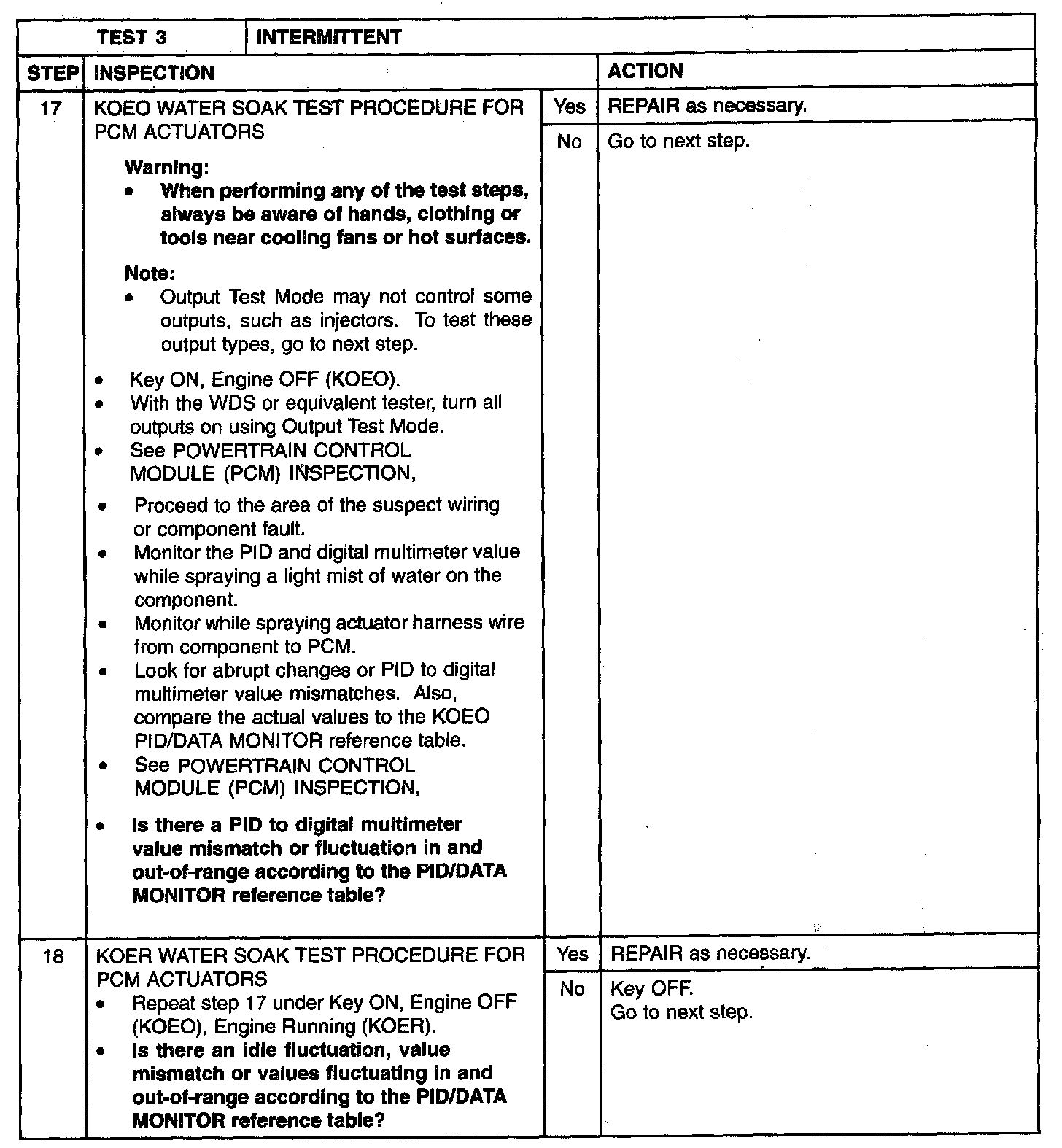

Step 17-Step 18:



Step 19:
