Intake Manifold

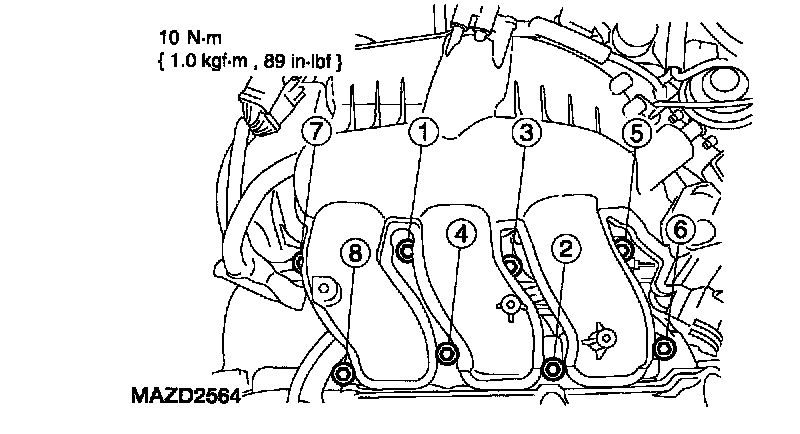

Lower intake manifold bolts 10 Nm (1.0 kgf-m, 89 inch lbs.)





Upper intake manifold bolts
