Symptom Related Diagnostic Procedures

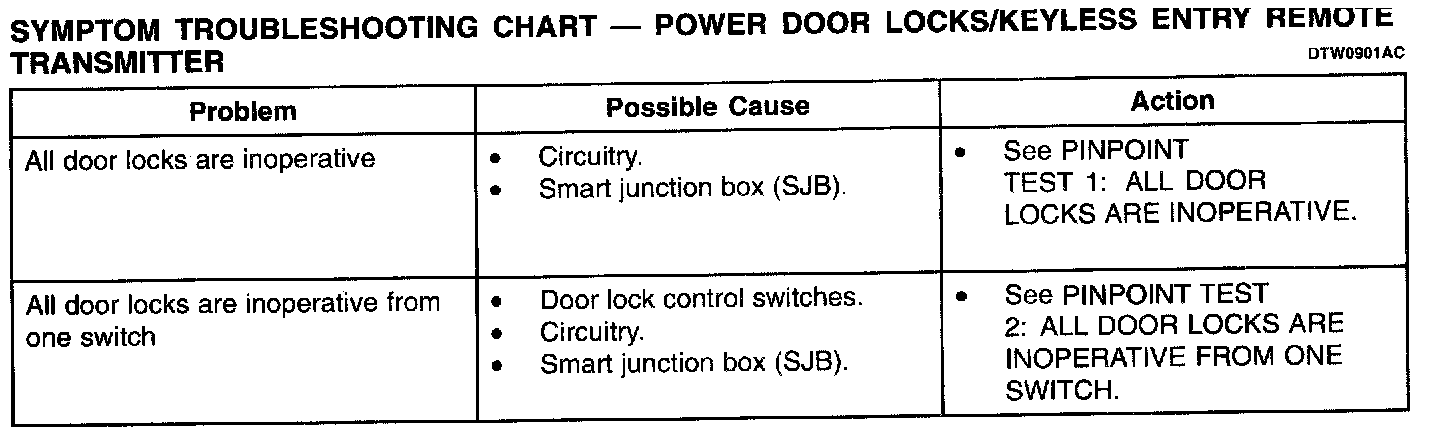

Symptom Troubleshooting Chart - Power Door Locks/Keyless Entry Remote Transmitter Part 1:

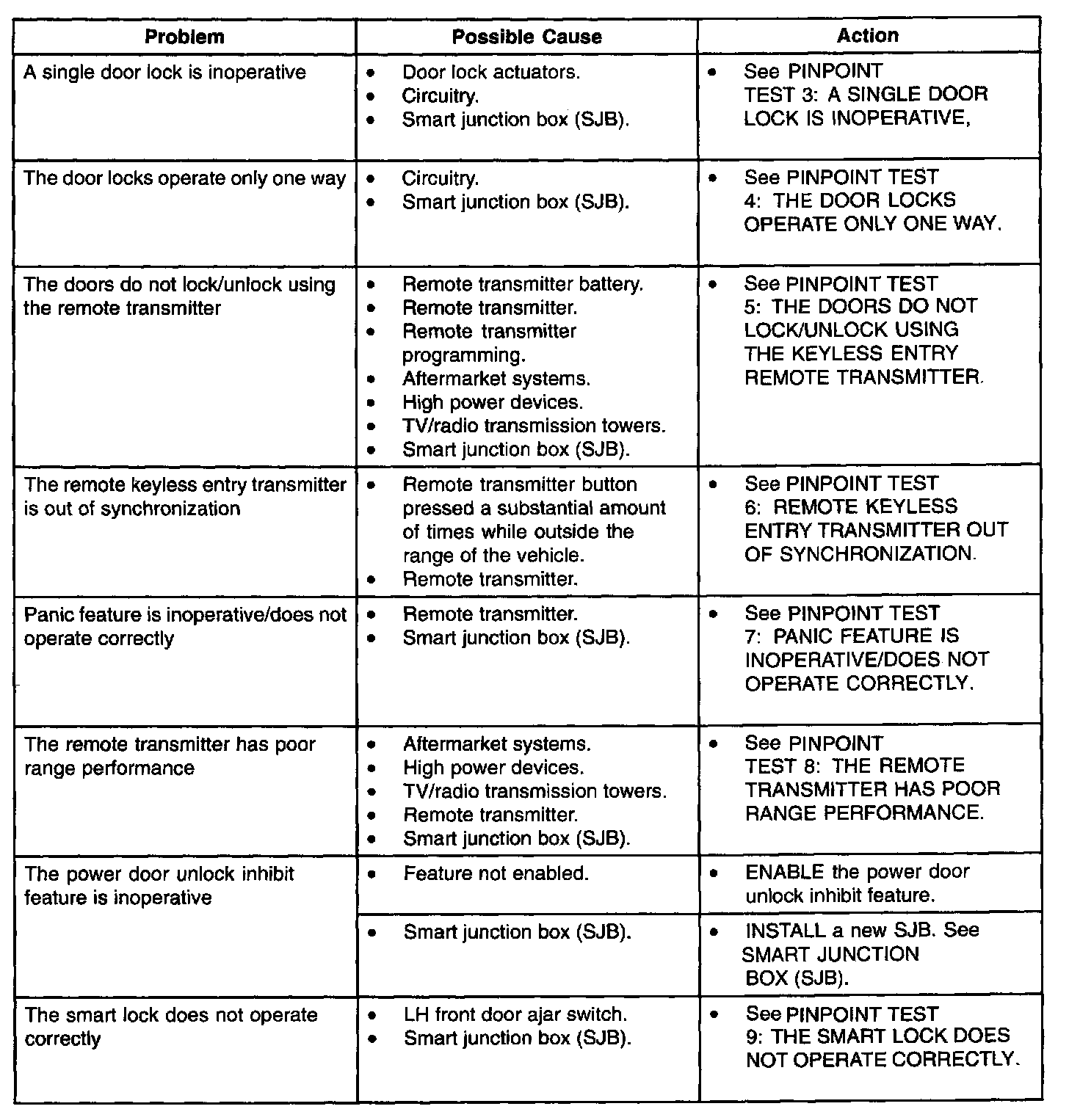

Symptom Troubleshooting Chart - Power Door Locks/Keyless Entry Remote Transmitter Part 2:
