Pinpoint Test 9

PINPOINT TEST 9: THE SMART LOCK DOES NOT OPERATE CORRECTLY

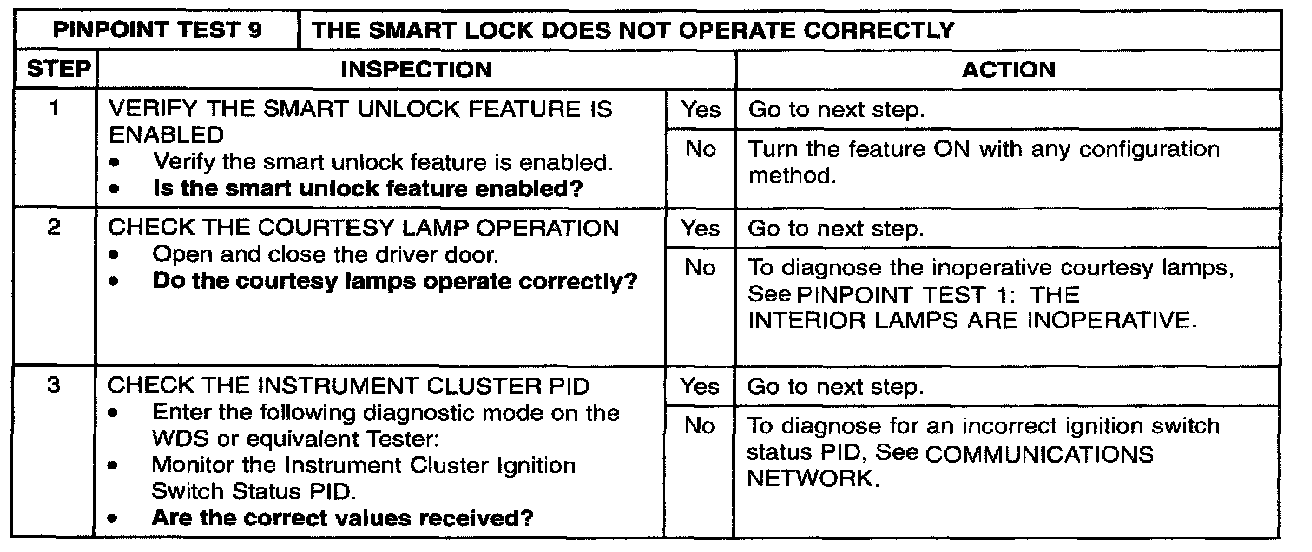

Step 1 - 3:

Step 4:

Normal Operation
The smart unlock feature unlocks the driver door if the key is in the ignition lock cylinder and the driver door is open when the vehicle is locked with the interior door lock control switch. The smart unlock feature requests that driver door be unlocked one second after these conditions arise. The smart unlock feature will unlock the driver door only if the keycode programming and transmitter identification code (TIC) programming modes are not active.

Possible Causes
- LH front door ajar switch
- SJB
