Exterior Mirror

Removal and Installation

1. Disconnect the battery.
2. Remove the front door trim panel.

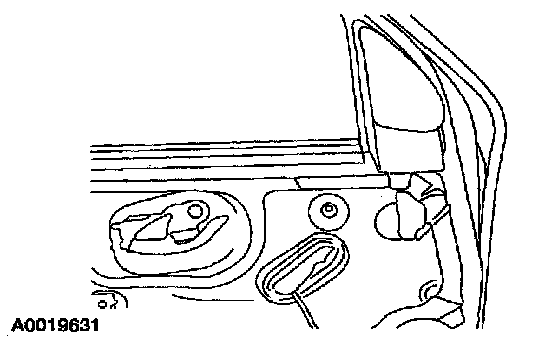

3. Remove the front door sail panel.
- If equipped, disconnect the speaker electrical connector.

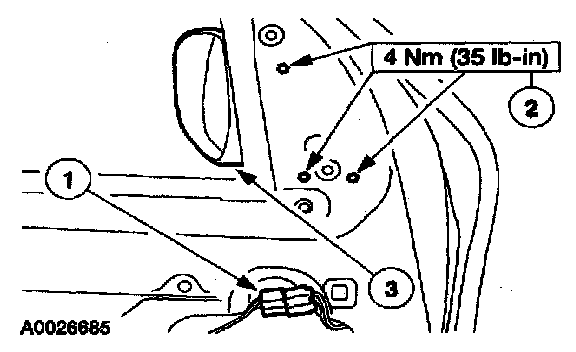

4. Remove the exterior rear view mirror.
1. Disconnect the electrical connector.
2. Remove the screws.
3. Remove the exterior rear view mirror.
- Feed the power mirror wiring through the opening in the front door.

5. To install, reverse the removal procedure.
