Interior Mirror

Removal

Interior Mirror:

CAUTION: The interior rear view mirror is of the brake away design. Excessive force in any direction may cause damage to the mirror of windshield.

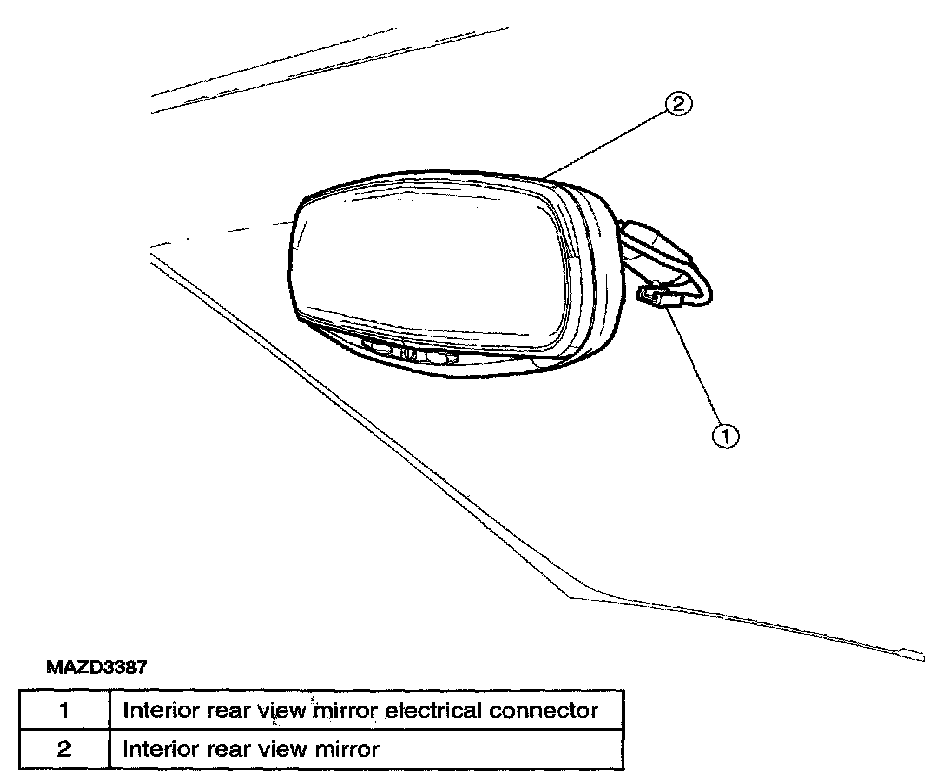

NOTE: Auto-dimming rear view mirror shown, manual mirror similar.

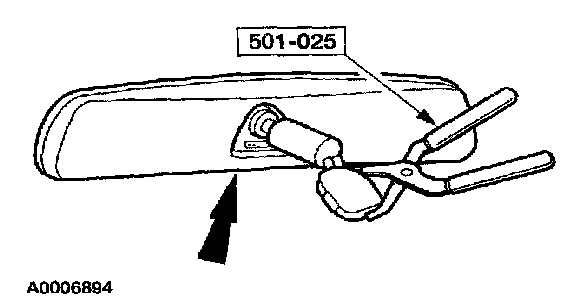

1. Position the mirror in the full up position. Insert a suitable tool between the bottom of the mirror mount and bracket. Push upward on the tool until the mirror mount is released from the bracket.

Installation




1. Place the interior rear view mirror on the windshield bracket. Using the special tool, press the mirror in place until fully seated.
