Power Seat Switch: Service and Repair
SEAT CONTROL SWITCHRemoval and Installation
NOTE: If a side air bag deployment took place, a new seatback pad, trim cover, and side air bag module must be installed. A new seatback frame should be installed if necessary.
1. Depower the SRS.

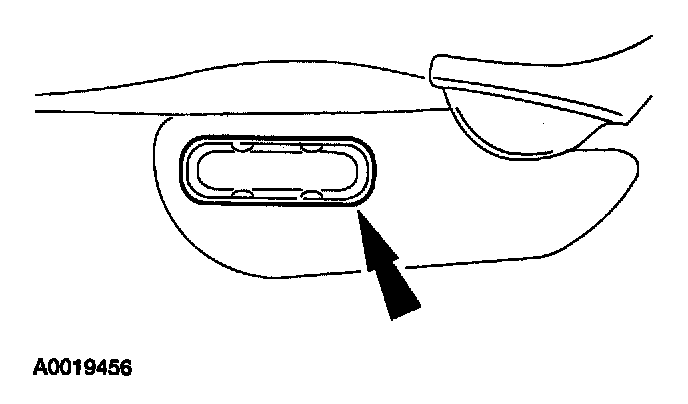

2. Remove the seat control switch knob.
3. Remove the front seat cushion side shield.
1. Remove the seat backrest handle.
2. Remove the screw.
3. Disconnect the electrical connector(s) and remove the shield.

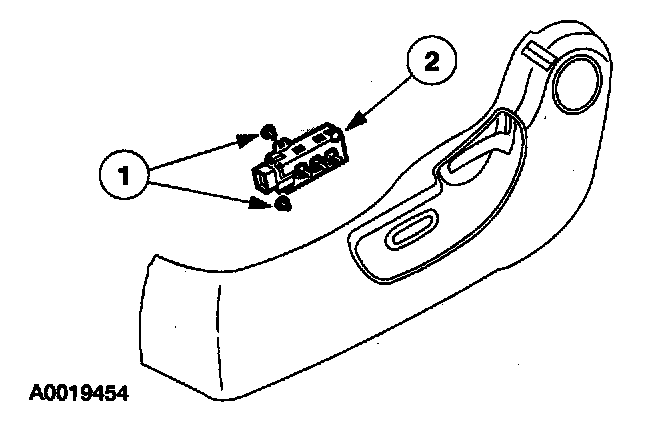

4. Remove the seat control switch.
1. Remove the screws.
2. Remove the switch.
5. To install, reverse the removal procedure.
6. Repower the SRS.
