Seat Temperature Switch: Service and Repair

HEATED SEAT SWITCH

Removal and Installation

NOTE: If a side air bag deployment took place, a new seatback pad, trim cover, and side air bag module must be installed. A new seatback frame should be installed if necessary.

1. Depower the SRS.

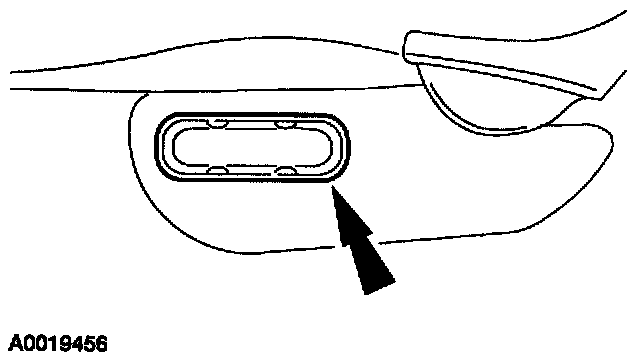

2. Remove the seat control switch knob.

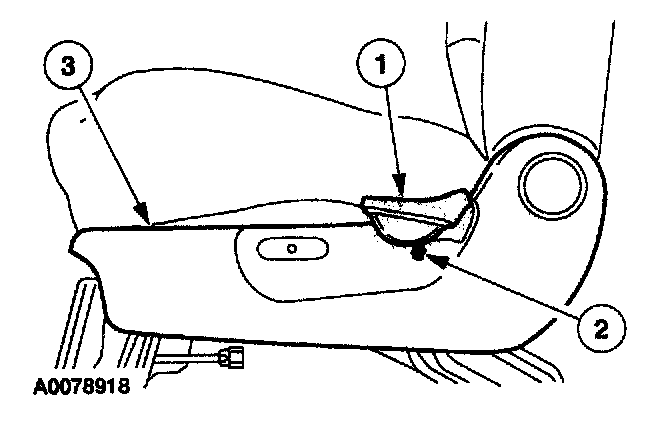

3. Remove the front seat cushion side shield.
1. Remove the seat backrest handle.
2. Remove the screw.
3. Disconnect the electrical connector(s) and remove the shield.

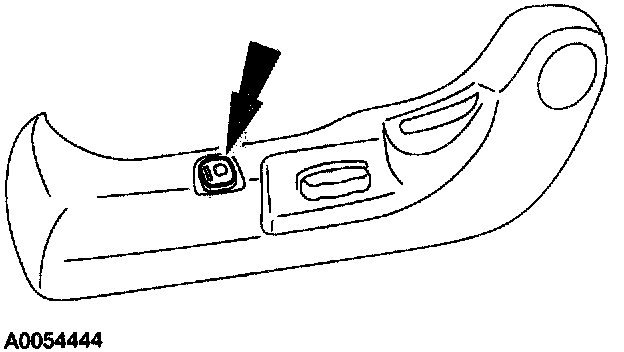

4. Release the locking tab and remove the heated seat switch.
5. To install, reverse the removal procedure.
6. Repower the SRS.
