Passenger Seat
PASSENGER SEATRemoval
NOTE: If a side air bag deployment took place, a new seatback pad, trim cover, and side air bag module must be installed. A new seatback frame should be installed if necessary.
1. Position the front seats forward.
2. Depower the SRS.

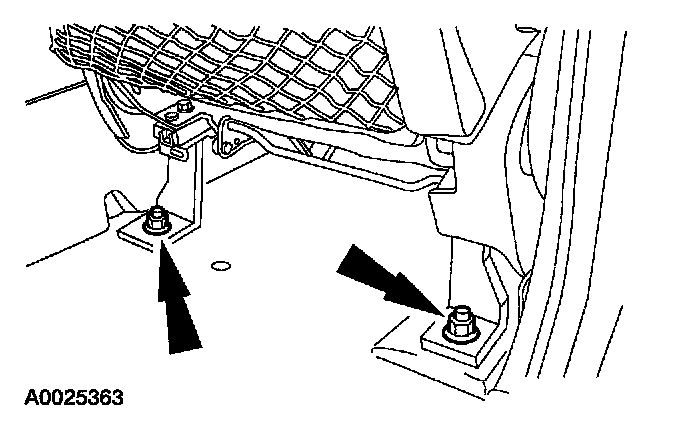

3. Remove the seat track to floor nuts.
4. Position the passenger seat rearward.
CAUTION: Use care when handling the seat and track assembly. Dropping the assembly or sitting on a seat not secured in the vehicle may result in damaged components.

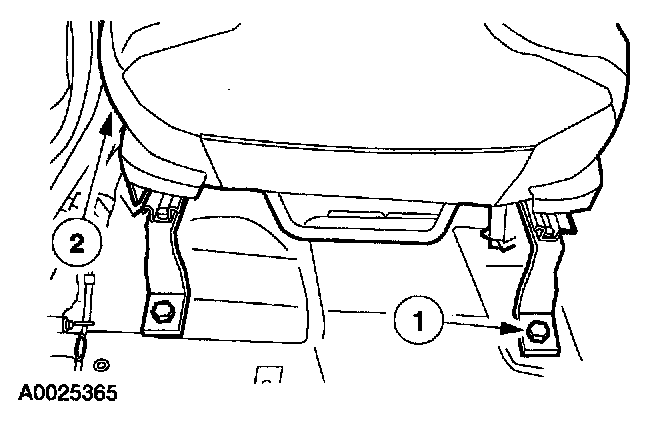

5. Remove the passenger seat.
1. Remove the seat track to floor bolts.
2. Remove the passenger seat.
Installation
NOTE: If a side air bag deployment took place, a new seatback pad, trim cover, and side air bag module must be installed. A new seatback frame should be installed if necessary.
CAUTION: Use care when handling the seat and track assembly. Dropping the assembly or sitting on a seat not secured in the vehicle may result in damaged components.

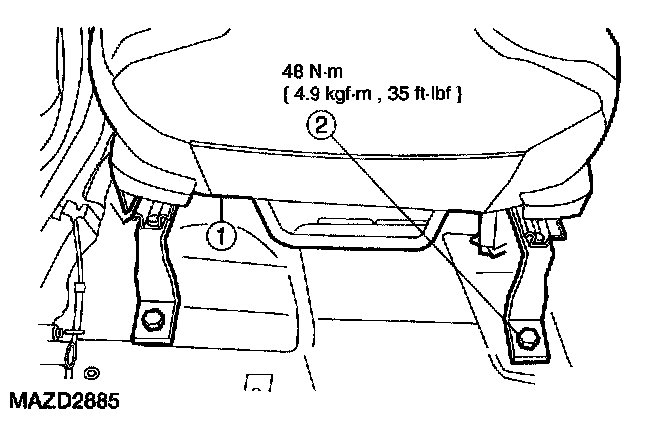

1. Install the passenger seat.
1. Position the passenger seat, If equipped with heated seats, connect the heated seat electrical connector.
2. Install the seat track to floor bolts.
2. Position the passenger seat forward.

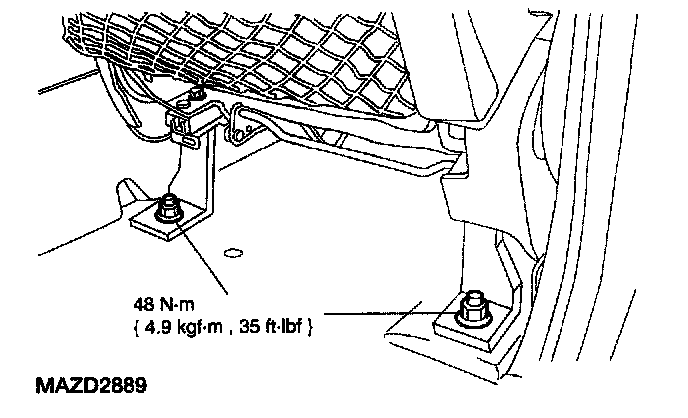

3. Install the seat track to floor nuts.
4. Depower the SRS.
