Pinpoint Test 2

PINPOINT TEST 2: THE POWER SEAT MOVES BUT IS NOISY

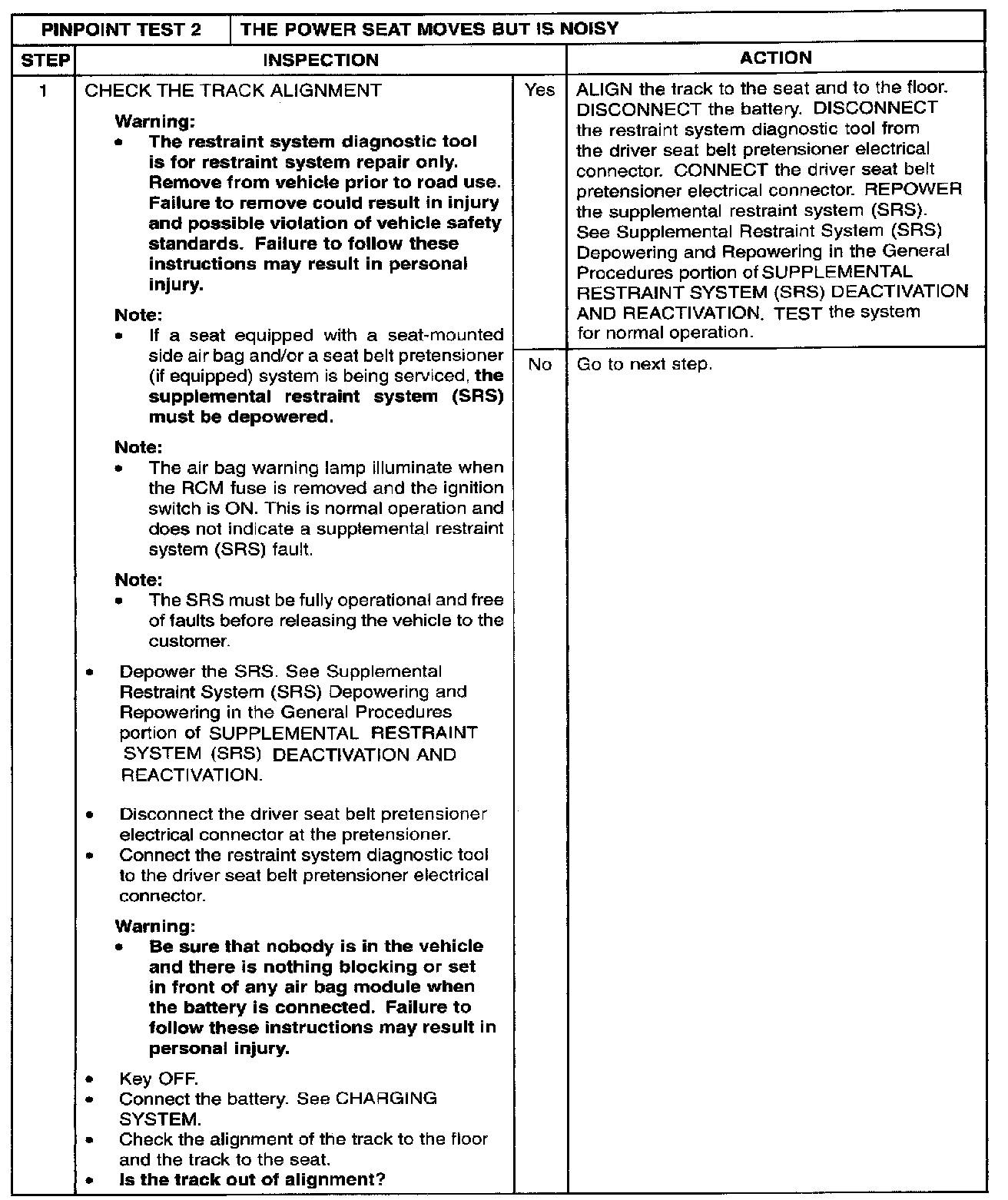

Step 1:

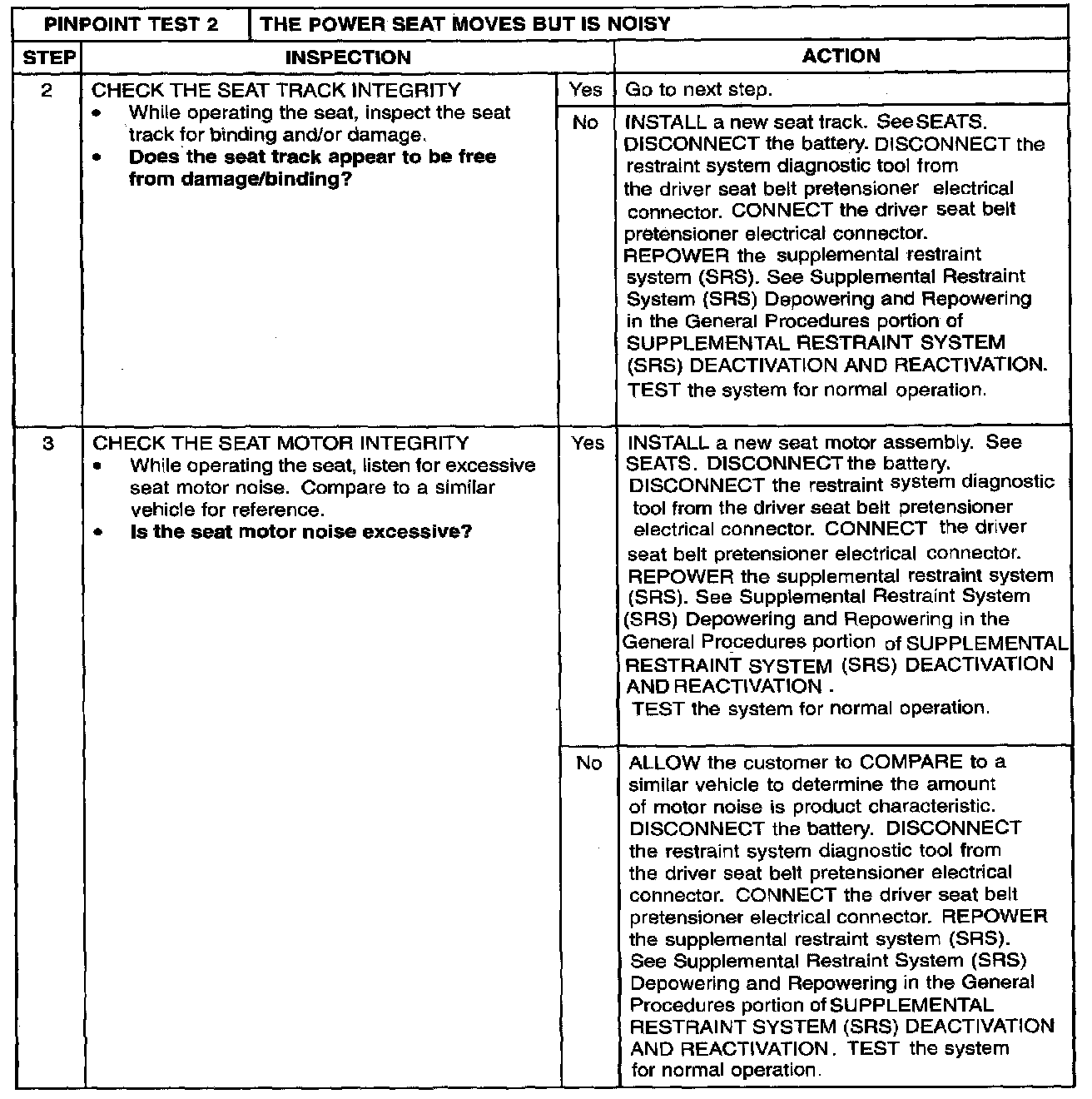

Step 2:

Normal Operation
The power seat should move quietly in the forward, rearward, front up/down and rear up/down directions during operation. Some noise is acceptable. Compare to a similar vehicle for reference.

Possible Causes
- misaligned seat track
- seat track component
- object obstructing seat movement
- seat motor
