Pinpoint Test 3

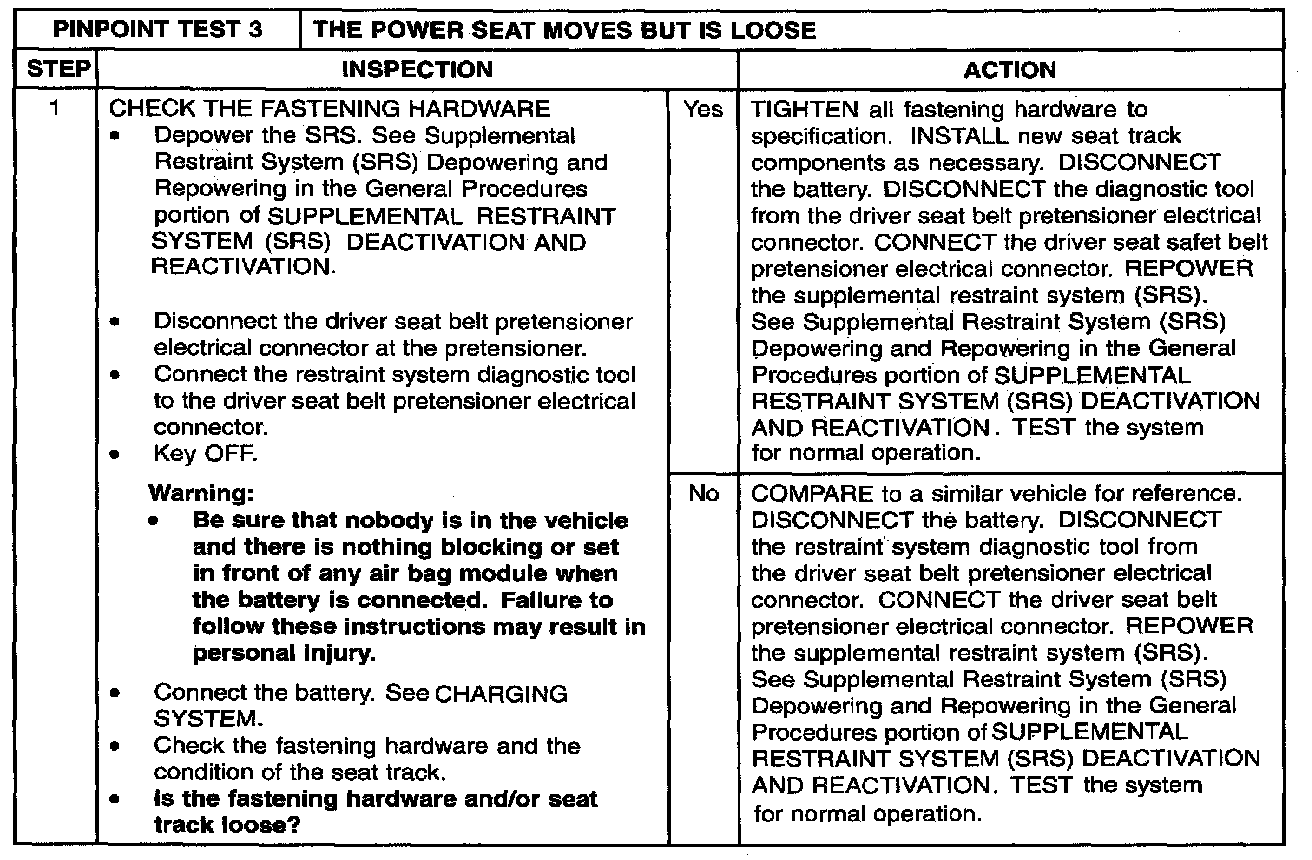

PINPOINT TEST 3: THE POWER SEAT MOVES BUT IS LOOSE

Step 1:

Normal Operation
The power seat movement should be smooth and the seat cushion should not rock during or after operation.

Possible Causes
- loose fastening hardware
- seat track component

WARNING: The restraint system diagnostic tool is for restraint system repair only. Remove from vehicle prior to road use. Failure to remove could result in injury and possible violation of vehicle safety standards. Failure to follow these instructions may result in personal injury.

NOTE: If a seat equipped with a seat-mounted side air bag and/or a seat belt pretensioner (if equipped) system is being repaired, the supplemental restraint system (SRS) must be depowered.

NOTE: The air bag warning lamp will illuminate when the RCM fuse is removed and the ignition switch is ON. This is normal operation and does not indicate a supplemental restraint system (SRS) fault.

NOTE: The SRS must be fully operational and free of faults before releasing the vehicle to the customer.
