Pinpoint Test 4

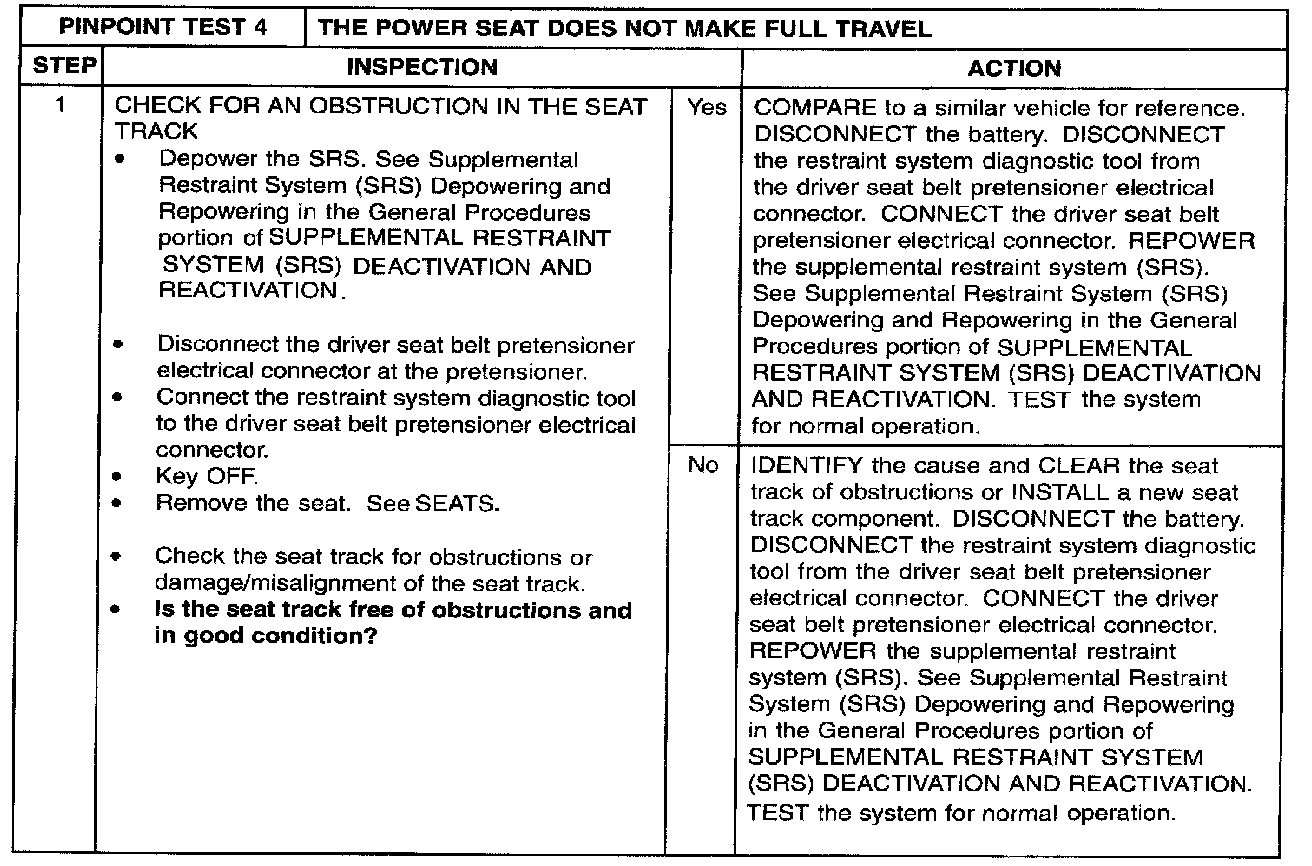

PINPOINT TEST 4: THE POWER SEAT DOES NOT MAKE FULL TRAVEL

Step 1:

Normal Operation
The power seat should travel fully horizontal (forward/rearward) and vertical (front up/down and rear up/down).

Possible Causes
- obstructed seat track
- seat track

WARNING: The restraint system diagnostic tool is for restraint system repair only. Remove from vehicle prior to road use. Failure to remove could result in injury and possible violation of vehicle safety standards. Failure to follow these instructions may result in personal injury.

NOTE: If a seat equipped with a seat-mounted side air bag and/or a seat belt pretensioner (if equipped) system is being repaired, the supplemental restraint system (SRS) must be depowered.

NOTE: The air bag warning lamp will illuminate when the RCM fuse is removed and the ignition switch is ON. This is normal operation and does not indicate a supplemental restraint system (SRS) fault.

NOTE: The SRS must be fully operational and free of faults before releasing the vehicle to the customer.
